Quick Details
-
Product Name:
-
Car Diagostic Tool
-
Function:
-
Professional Diagnose Tool
-
Special Features:
-
Diagnostic Fault Code
-
Item Type:
-
Car Diagnostic Cables
-
Keywords:
-
Air leak
-
Version:
-
LT-32
-
Update:
-
One Year
-
Certification:
-
CE
Quick Details
-
Brand Name:
-
CEMT
-
Model Number:
-
na
-
Place of Origin:
-
China
-
Product Name:
-
Car Diagostic Tool
-
Function:
-
Professional Diagnose Tool
-
Special Features:
-
Diagnostic Fault Code
-
Item Type:
-
Car Diagnostic Cables
-
Keywords:
-
Air leak
-
Version:
-
LT-32
-
Update:
-
One Year
-
Certification:
-
CE

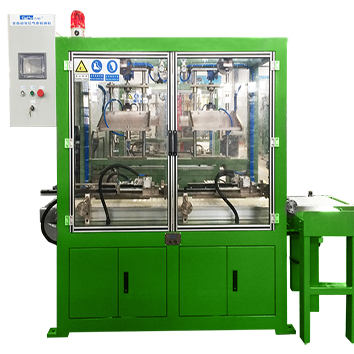

CEMT fully automatic acid battery air leak testing machine
|
1 |
Suitable battery dimension |
(L*W*H): Max 525mm× 265mm × 260mm Min 185mm× 125mm × 175mm (Tank height not less than 150mm)
|
|
2 |
Maximum Capacity |
3 pcs/min, total time of air filling , balanced, tested and exhaust≤ 9 seconds (calculated by 12V/60Ah battery)
|
|
3 |
P ower supply |
AC380/220V,50HZ |
|
4 |
A ir supply |
0.6MPa 0.2m 3 /min, |
|
5 |
Machine overall dimension |
( L*W*H ) 2800mm×1600mm×2200mm Conveyor length 2 8 0 0mm
|
|
6 |
Conveyor format |
Chain |
|
7 |
Conveyor speed |
220mm/s |
|
8 |
Work table height |
780 ± 30mm |
|
9 |
Machine work position |
Two detection stations, one Rejection station |
|
10 |
F rame material |
A3 |
|
11 |
Machine moving direction |
From left to right OR From right to left |
|
12 |
Machine color |
A pple green |
|
|
Function in s truction |
|
|
1. Used to detect the sealing of the car battery after heat sealing; 2. Test method for the 1.3.5 cell test, 2.4.6 cell test; 3. Test pressure from 0.02 ~ 0.1MPa continuously adjustable, and through the pressure gauge display; 4. Using A / D module for data acquisition; 5. Automatic loading, testing, removal and unloading. |
|
|
M ain parts |
|
1 |
Pneumatic components: AIRTA C |
|
2 |
Gear motor :China make |
|
2 |
M ain electrical parts: PLC (MITSUBISHI), touch screen (MITSUBISHI), |
