Quick Details
-
Table Travel (Y) (mm):
-
220
-
Dimension(L*W*H):
-
1450*1240*1890mm
-
Weight (T):
-
0.65 T
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Range of Spindle Speed(r.p.m):
-
100 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
100 kg
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Voltage:
-
as per customer's request
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Other
-
Machine Type:
-
Vertical machining center
-
CNC controller:
-
GSK FANUC SIEMENS
-
Function:
-
metal processing
-
Model:
-
XH7121
-
Main Motor Power:
-
2.2kw
-
Spindle Max. Rotating Speed:
-
Servo Spindle 6000rpm
-
Worktable Size:
-
660*210mm
-
Distance between spindle nose and table:
-
45-375mm
-
Distance between spindle and column:
-
260mm
-
External Protection Level:
-
full cover
Quick Details
-
Table Size (mm):
-
660*210mm
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
400
-
Table Travel (Y) (mm):
-
220
-
Dimension(L*W*H):
-
1450*1240*1890mm
-
Weight (T):
-
0.65 T
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Range of Spindle Speed(r.p.m):
-
100 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
100 kg
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Voltage:
-
as per customer's request
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Other
-
Machine Type:
-
Vertical machining center
-
CNC controller:
-
GSK FANUC SIEMENS
-
Function:
-
metal processing
-
Model:
-
XH7121
-
Main Motor Power:
-
2.2kw
-
Spindle Max. Rotating Speed:
-
Servo Spindle 6000rpm
-
Worktable Size:
-
660*210mm
-
Distance between spindle nose and table:
-
45-375mm
-
Distance between spindle and column:
-
260mm
-
External Protection Level:
-
full cover
Products Description

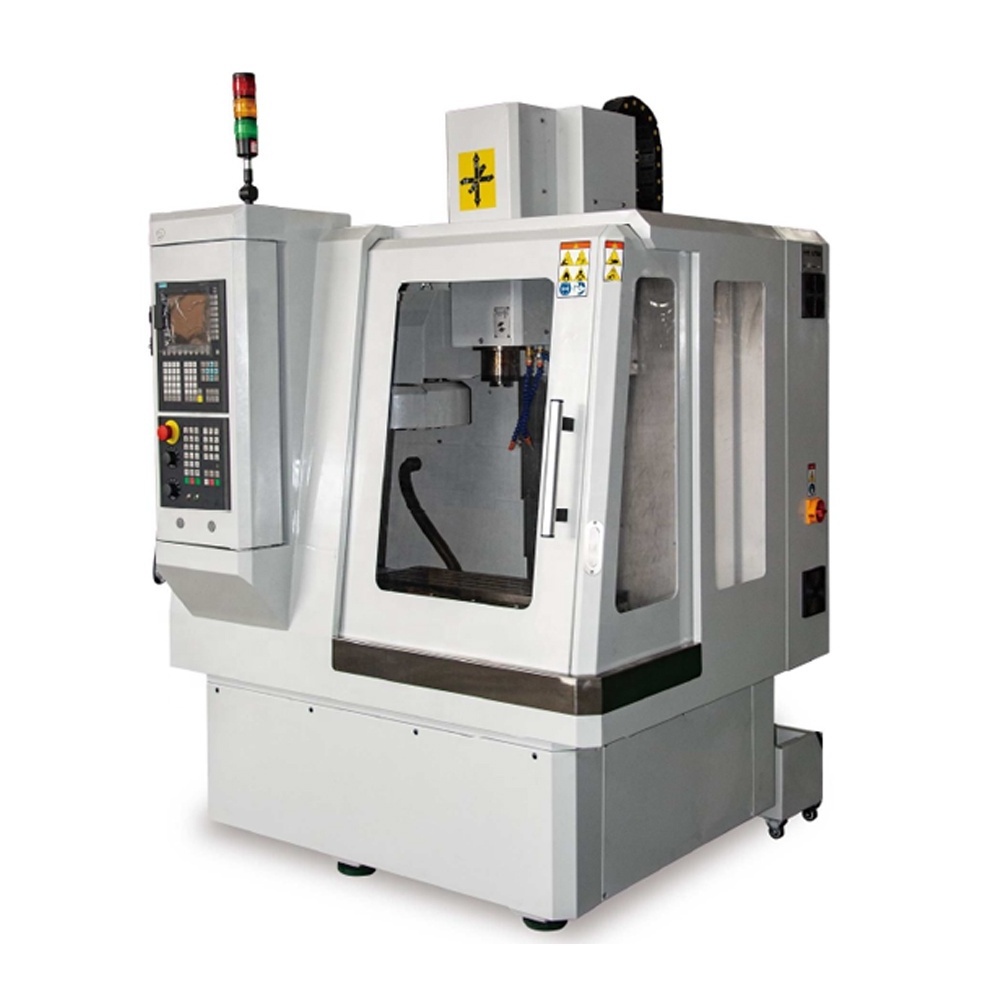

CNC milling machine
XH7121 Vertical Machining Center with 8 tools ACT
mini cnc
|
Specification
|
xh7121
|
|
Table size
|
660*210mm
|
|
T slot (width*qty*space between)
|
3*14*63 mm*pc*mm
|
|
X/Y/Z axis travel
|
400*220*350mm
|
|
Distance between spindle nose and table
|
45-375mm
|
|
Distance between spindle center and column
|
260mm
|
|
Max.speed of the spindle
|
6000rpm
|
|
Positioning accuracy
|
0.02mm
|
|
Repeat posotioning accuracy
|
0.01mm
|
|
Spindle taper
|
BT30/R8
|
|
Main motor power
|
2.2KW
|
|
X/Y/Z feed motor power
|
2.39/2.39/3.18 NM
|
|
Rapid feeding speed X,Y,Z axis
|
8 m/min
|
|
feeding speed
|
0-2400 mm/min
|
|
Min.set unit
|
0.001 mm
|
|
Over dimensions
|
1450*1240*1890mm
|
|
N.W
|
650kg
|
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
