The cylinder block is mounted in fixed roller bearings in the housing. An even number of pistons are radially located in bores
inside the cylinder block. and the valve plate directs the incoming and outgoing oil to and from the working pistons. Each piston
is working against a cam roller.
- Product Details
- {{item.text}}
Quick Details
-
Pressure:
-
standard
-
Structure:
-
open and closed circuits
-
Weight:
-
310
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Brand Name:
-
ATUS
-
Place of Origin:
-
Guangdong, China
-
Maximum Flow Rate:
-
standard
Quick Details
-
Warranty:
-
1 Year
-
Motor Type:
-
Piston Motor
-
Displacement:
-
6280cm³
-
Pressure:
-
standard
-
Structure:
-
open and closed circuits
-
Weight:
-
310
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Brand Name:
-
ATUS
-
Place of Origin:
-
Guangdong, China
-
Maximum Flow Rate:
-
standard
Product Description

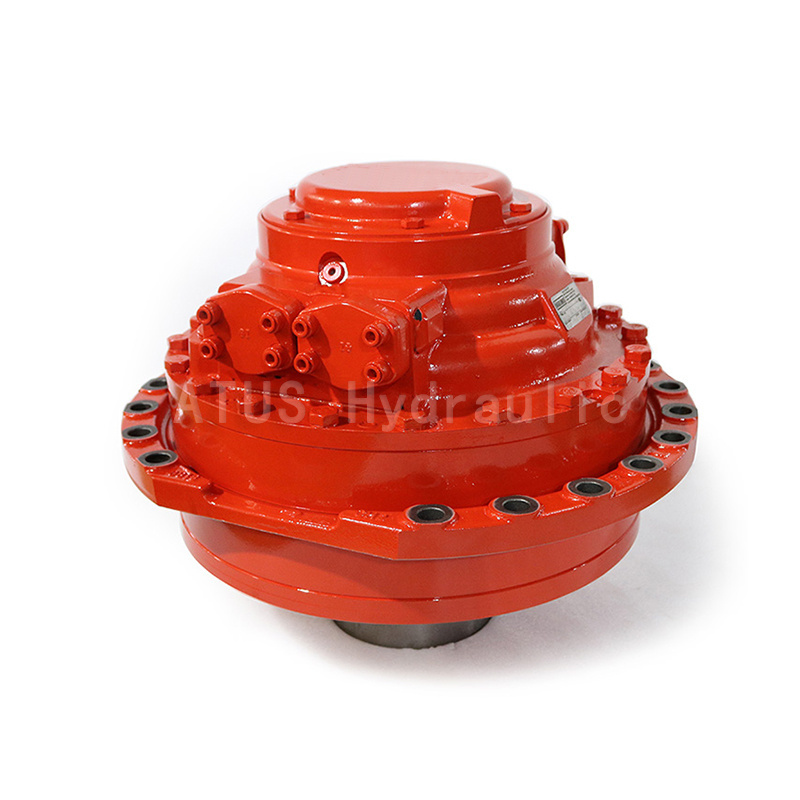

ATUS maintenance for Hagglunds CA&CB, the hydraulic industrial motor hagglunds CA&CB is of the radial-piston type with a rotating cylinder block/hollow shaft and a stationary housing.
|
Name
|
ATUS Maintenance of Radial piston hydraulic motor
|
|
Series
|
Series CA & CB
|
|
Displacement CA
|
1256 to 13200
|
|
Displacement CB
|
15100 to 70400
|
|
Specific Torque CA
|
20 to 210
|
|
Specific Torque CB
|
240 to 1120
|
Direction for use
使用说明
-
Description of application effect
-
使用效果描述
When the hydraulic pressure is acting on the pistons, the cam rollers are pushed against the slope on the cam ring that rigidly connected to the housing, thereby producing a torque. The cam rollers transfer the reaction force to the piston which are guided in the rotating cylinder block. Rotation therefore occurs, and the torque available is proportional to the pressure in the system.
Detailed Images
Oil main lines are connected to ports A and C in the connection block and drain lines to ports D1, D2, D3 or D4 in the motor housing.
The motor is connected to the shaft of the driven machine through the hollow shaft of the cylinder block. The torque is transmitted by using a mechanical shaft coupling or alternatively by splines.
Size Information
Technical Data
|
Name
|
Displacement
|
Torque
|
Rated Speed
|
Max. Speed
|
Max. Pressure
|
Max. Torque
|
|
CA 210
|
13200
|
210
|
85
|
115
|
350
|
/
|
|
CB 1120
|
70400
|
1120
|
20
|
27
|
350
|
370 KNM
|
