Quick Details
-
Model:
-
MT-120KN
-
Cutting force:
-
12Ton
-
Stroke:
-
5-75mm
-
Working Table:
-
400*800mm
-
Upper Board:
-
350*450mm
-
Distance between upper and down board:
-
50-120mm
-
Power:
-
1.1KW
-
First refueling amount:
-
36L
-
Weight:
-
380KG
-
Size:
-
80*75*135CM
Quick Details
-
Weight (KG):
-
380
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MILES
-
Model:
-
MT-120KN
-
Cutting force:
-
12Ton
-
Stroke:
-
5-75mm
-
Working Table:
-
400*800mm
-
Upper Board:
-
350*450mm
-
Distance between upper and down board:
-
50-120mm
-
Power:
-
1.1KW
-
First refueling amount:
-
36L
-
Weight:
-
380KG
-
Size:
-
80*75*135CM
Product Description

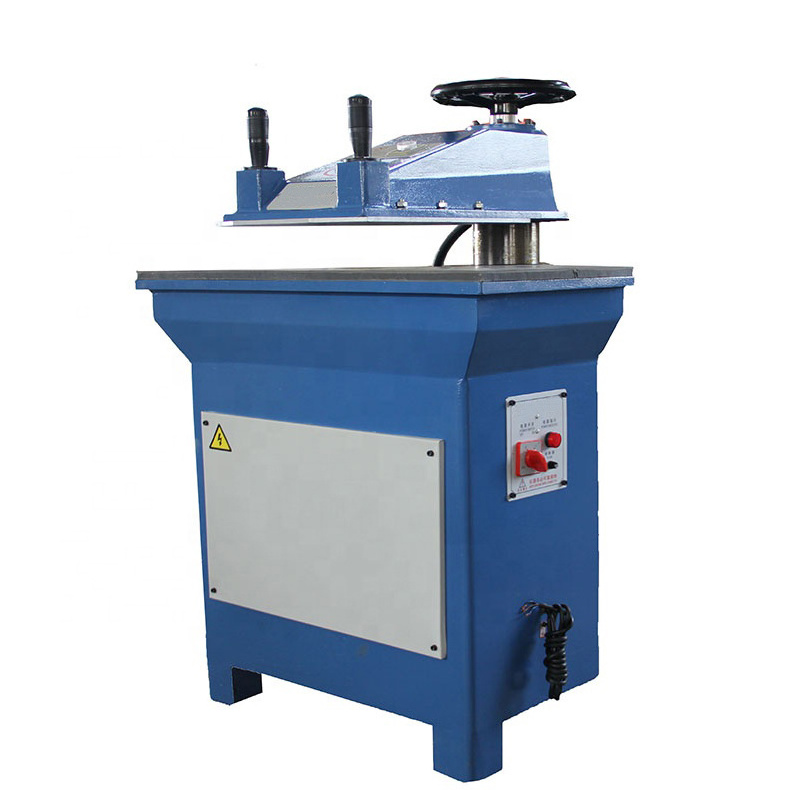

Hydraulic Swing Arm Clicking Press Die Cutting Machine For Leather Shoe Making
Application：
Swing arm cutting machine is widely used for cutting all kinds of shoe uppers, soles, insoles, leather, rubber, chemical
fiber,cardboard, paper,nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags and all kinds of non-metal materials through small cutting dies.
fiber,cardboard, paper,nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags and all kinds of non-metal materials through small cutting dies.
Specification
|
Model
|
MT-120KN
|
MT-140KN
|
MT-160KN
|
MT-200KN
|
|
Cutting force
|
12Ton
|
14Ton
|
16Ton
|
20Ton
|
|
Stroke
|
5-75mm
|
5-75mm
|
5-75mm
|
5-75mm
|
|
Working Table
|
400*800mm
|
400*900mm
|
410*900mm
|
500*1000mm
|
|
Upper Board
|
350*450mm
|
350*450mm
|
350*460mm
|
350*550mm
|
|
Distance between upper and down board
|
50-120mm
|
50-140mm
|
50-140mm
|
65-150mm
|
|
Power
|
1.1KW
|
1.1KW
|
1.1KW
|
1.5KW
|
|
Voltage
|
220V,AC/380V
|
220V,AC/380V
|
220V,AC/380V
|
220V,AC/380V
|
|
Size
|
80*75*135CM
|
90*75*135CM
|
90*75*135CM
|
100*90*135CM
|
|
Weight
|
380KG
|
410KG
|
460KG
|
680KG
|
|
First refueling amount
|
36L
|
36L
|
36L
|
54L
|
Widely used in many industries:
1). Shoe making – shoes, insoles, insole socks, uppers, straps
2). Textile – cloth components for hats, ties, collars, shoulder pads
3). Leather goods – shoe uppers, wallets, purses, belts
4). Automotive interior
5). Abrasive paper, sandpaper
6). Gaskets, mats,seals, washers
7). Foam and sponge
1). Shoe making – shoes, insoles, insole socks, uppers, straps
2). Textile – cloth components for hats, ties, collars, shoulder pads
3). Leather goods – shoe uppers, wallets, purses, belts
4). Automotive interior
5). Abrasive paper, sandpaper
6). Gaskets, mats,seals, washers
7). Foam and sponge
Details Images
Safe ,two-hand trip operation, rocker cutting head rotates freely, the best sight in operation,
convenience in choosing materials with high efficiency.
The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of die cutter is changed.
High speed, low energy consumption, less failure and easy maintenance.
Ductile cast iron body made the cutting machine be used for a very long time with small noise.
To meet the need of frequent replacement of die cutters of different sizes.
This type of clicking machine that can timely output three kinds of cutting force is available for selection.
Advantage:
It has the advantage of rocker cutting head, the best inthe operation of the line of sight, the mostconvenient choice of
materials, and pressureenough, any soft material can be competent.Very suitable for cutting small areas of non-metallic materials.
Finished Products
Feature
1. The efficiency is excellent. Excellent structure design.
2. Safe and easy to operate, even an inexperienced worker can operate.
3. High quality parts ensure long life of the machine
4. Easy to clean up, minimize the damage.
It is widely used in all nonmetal products industries, such as shoes,bags&cases,leather products,gloves,hats,pulled
flowers,arts&crafts, plastic package,garment accessorries and auto supplies.
If you are interested in our products, please feel free to contact us for details
Recommend Products
Packing & Delivery
We use shockproof foam and bubble film to safely pack the machine.
We use wooden boxes that are all fumigated.
Taking into account the international long-distance transportation, we have done a good job of safety considerations and related protective measures from the inside to the outside.Please do not worry.
