Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WXHQ
-
Voltage:
-
N/A
-
Dimension(L*W*H):
-
3000L*500W
-
Weight (KG):
-
100 kg
-
Product name:
-
Heavy loading gravity steel roller conveyor
-
roller material:
-
carbon steel
-
Roller treatment:
-
galvanized
-
Roller diamater:
-
60mm
-
Roller thickness:
-
2.3mm
-
Roller width:
-
500mm
-
Roller pitch:
-
100mm
-
Roller conveyor length:
-
3000mm
Quick Details
-
Power:
-
N/A
-
Warranty:
-
1 Year
-
Width or Diameter:
-
60
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WXHQ
-
Voltage:
-
N/A
-
Dimension(L*W*H):
-
3000L*500W
-
Weight (KG):
-
100 kg
-
Product name:
-
Heavy loading gravity steel roller conveyor
-
roller material:
-
carbon steel
-
Roller treatment:
-
galvanized
-
Roller diamater:
-
60mm
-
Roller thickness:
-
2.3mm
-
Roller width:
-
500mm
-
Roller pitch:
-
100mm
-
Roller conveyor length:
-
3000mm

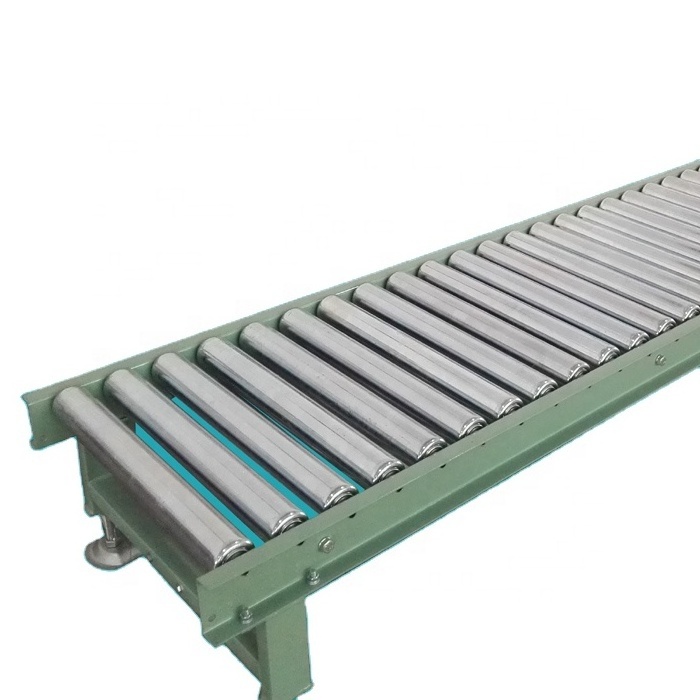

Heavy duty gravity steel roller conveyor
The roller conveyor also named gravity conveyor, gravity roller conveyor, usually adopts the steel conveyor rollers to installed within a certain frame to transfer workpiece on the surface. One of the
simple type is non power roller conveyor, also called manual roller conveyor, because there's no drive
part and need manual pushing to make the workpiece transferring on rollers.
Table 1-- Roller Conveyor:
| roller width (mm) | W | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| conveyor width(mm) | W+75 | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | 975 | 1075 |
| roller loading(kg) | 376 | 345 | 293 | 250 | 200 | 158 | 143 | 117 | 100 | 93 | |
| conveyor weight(kg) | 75P | 45.4 | 63.4 | 81.4 | 99.4 | 117 | 135.4 | 153.4 | 171.4 | 189 | 207.4 |
| 3000mm length | 100P | 39.8 | 53.4 | 67 | 80.6 | 94.2 | 108 | 121 | 135 | 149 | 162.2 |
| roller weight (kg) | 0.6 | 1 | 1.4 | 1.9 | 2.3 | 2.8 | 3.2 | 3.6 | 4.1 | 4.5 |
1. Roller is a new type structure diffirent from others:
Our roller is Japanese new type, more strong structure with very good looking.
The bearing can be repalced from roller end if damaged; saving maintanance cost.
2. Japanese standard quality: high quality standard with competetive cost.
3. 1 year quality garranty( non-artificial damage).
4. Full experienced engineers & technicals to ensure the design & conveyors' good quality.
5. Good business clients & parteners' long business cooperation.
6. Credit enterprise, good after-sale service, specialised sales and manufacturing.
1. Packaging:
Carton Package Wooden Case Package Steel Pallet Package
Steel Box Package Steel Pallet Package Full Container Package
2. Shipment
Express Delivery Air Transport Truck Transport Sea Transport
