Quick Details
-
Brand Name:
-
Yihong Abrasives
-
Model Number:
-
YH200414
-
Layers:
-
11 layers
-
Hole diam.:
-
22.23mm
-
Metal ring:
-
2 ring
-
All size:
-
75mm,90mm,95mm,105mm,115mm,140mm,170mm,220mm
-
All hole diam.:
-
16mm, 22.23mm
-
Backing surface:
-
Black paper or non-woven cloth
-
All metal rings available:
-
1 or 2
-
Package:
-
PE film, box, pallet
-
Product name:
-
flapper discs backing pad
-
Application:
-
support flap disc
Quick Details
-
Type:
-
Abrasive Pad
-
Warranty:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yihong Abrasives
-
Model Number:
-
YH200414
-
Layers:
-
11 layers
-
Hole diam.:
-
22.23mm
-
Metal ring:
-
2 ring
-
All size:
-
75mm,90mm,95mm,105mm,115mm,140mm,170mm,220mm
-
All hole diam.:
-
16mm, 22.23mm
-
Backing surface:
-
Black paper or non-woven cloth
-
All metal rings available:
-
1 or 2
-
Package:
-
PE film, box, pallet
-
Product name:
-
flapper discs backing pad
-
Application:
-
support flap disc

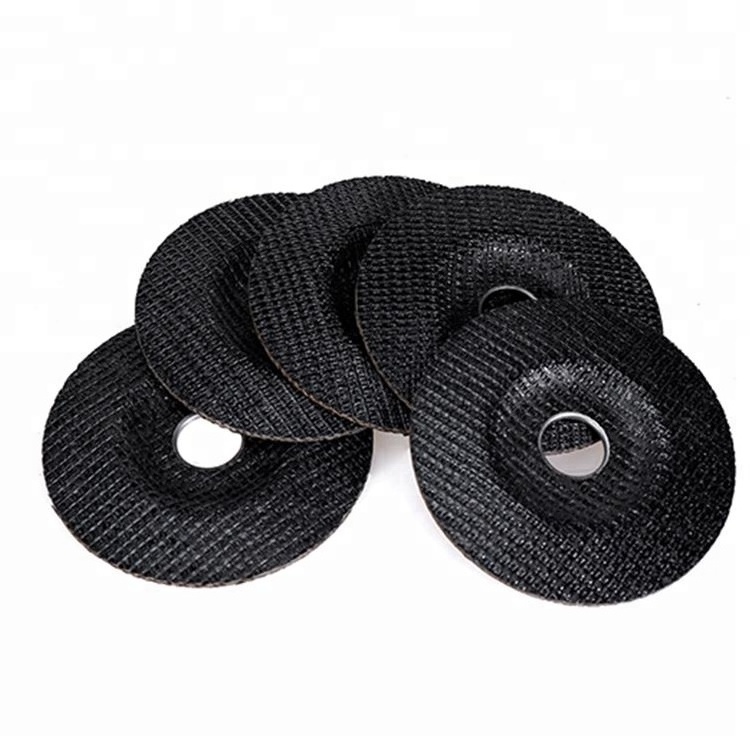

T27/T29 Abrasives Fiberglass backing pad for flapper discs
flapper discs backing pad Suitable for
-
Flap Discs
-
Non-woven flap discs
-
Clean stripe discs
-
Felt discs
Normal Specification for Fiberglass backing pad:
|
Outer Diam.(mm) |
Hole Diam(mm) |
Size for flap discs (mm, inch) |
Type |
Layers |
Metal Rings |
Box |
|
|
90-95 |
16.3 |
100 x 16 |
4 x 5/8 |
T27 or T29 |
5-9 |
1 or 2 |
1000 |
|
105-108 |
22.23 |
115 x 22 |
4-1/2 x 7/8 |
T27 or T29 |
6-12 |
1 or 2 |
500 |
|
115-118 |
22.23 |
125 x 22 |
5 x 7/8 |
T27 or T29 |
6-12 |
1 or 2 |
500 |
|
140-141 |
22.23 |
150 x 22 |
6x 7/8 |
T27 or T29 |
6-12 |
1 or 2 |
400 |
|
170-171 |
22.23 |
180 x 22 |
7 x 7/8 |
T27 or T29 |
6-12 |
1 or 2 |
250 |
|
220-221 |
22.23 |
230x 22 |
10 x 7/8 |
T27 or T29 |
12-14 |
1 or 2 |
200 |
Type:
T-27 – Flat shape
T-29 – Conical or Tapered shape
Fiberglass backing pad Material
-
Best quality fiberglass farbic
-
Excellent phenolic resin
-
Galvanized metal rings
-
Backing surface: Black paper or non-woven cloth
Detection, Inspection and Testing for Fiberglass backing pad
Fiberglass backing pad Package
1) Each roll(20-50pcs) is wrapped in polyethylene film and put into boxes of different sizes according to their diameters.
2) Cartons are placed on pallets, which are wrapped with plastic films of two to three layers.
Delivery
Within 14-30 days after receive the advance payment or L/C
Jia County Yihong Abrasives Co., Ltd is a specialized manufacturer of sandpaper deep processing. Our company products mainly include flap disc, flap wheel , flower flap disc, mounted wheel, wire flap wheel, abrasive cloth and glass fiber backing plate. After years of technological innovation and honing, Yihong Abrasives has successfully developed and built flap wheel, flap disc production line and fiberglass backing production line, realizing the large-scale production of abrasive cloth polishing abrasives.
FAQ
1.Are you a factory or a trading company?
We are a professional manufacturer of abrasive tools have20 years.We have two factories to produce abrasive products.
2.What's your main products?
Jia County Yihong Abrasives Co., Ltd
is specializing in developing and producing abrasives products: fiberglass backing pads, flap discs, flap wheels, abrasive belt etc.
3.Are samples available for quality test?
Yes, free samples can be prepared for quality test, but customers have to bear the freight charges.
4. How could you ensure the quality?
Only high quality and stable batch products can ensure user's safety and consistent effect.To ensure this, all our products will pass the semi-product testing, finished-product testing and inspection before delivering. Quality passes only after 3 times testing.
