Quick Details
-
Brand Name:
-
Lino
-
Model Number:
-
LNT203
-
Material:
-
ss
-
Name:
-
Lino LNT203 High temperature pressure transmitter diaphragm
-
Output signal:
-
4~20mA
-
Power supply:
-
24VDC 12VDC 5VDC 8-30VDC
-
Process connection:
-
M20*1.5 G1/2
-
Medium:
-
Liquid
-
Electrical connection:
-
Cable/Hirschman/M12/Packard Connector
-
Protection class:
-
IP65~68
-
Operating Temperature:
-
-25-80C
-
Display:
-
None
-
Net Weight:
-
0.2kg
Quick Details
-
Warranty:
-
1Y
-
Type:
-
flush
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Lino
-
Model Number:
-
LNT203
-
Material:
-
ss
-
Name:
-
Lino LNT203 High temperature pressure transmitter diaphragm
-
Output signal:
-
4~20mA
-
Power supply:
-
24VDC 12VDC 5VDC 8-30VDC
-
Process connection:
-
M20*1.5 G1/2
-
Medium:
-
Liquid
-
Electrical connection:
-
Cable/Hirschman/M12/Packard Connector
-
Protection class:
-
IP65~68
-
Operating Temperature:
-
-25-80C
-
Display:
-
None
-
Net Weight:
-
0.2kg
Product Description

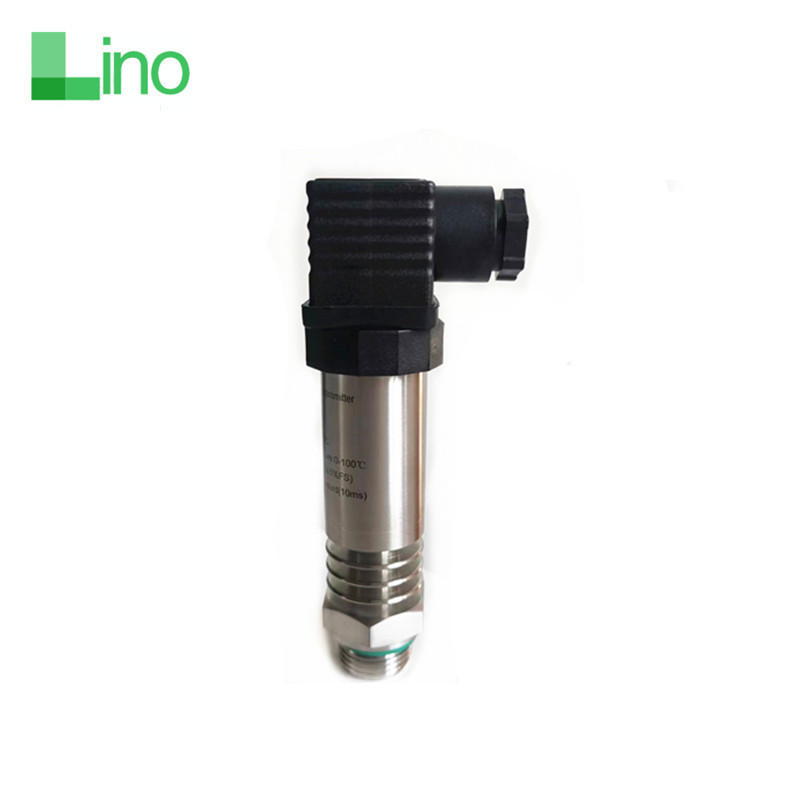

Lino LNT203 High temperature waterproof flat film flush pressure transmitter diaphragm
is formed on the basis of the prototype of the general pressure transmitter, and is formed by adding a welded and sealed isolation diaphragm structure. Its welded sealing isolation diaphragm device has a variety of different process connection structures, especially suitable for pressure measurement in high temperature, high viscosity and easy to block occasions, and also suitable for pressure measurement in sanitary and medical occasions.
Features

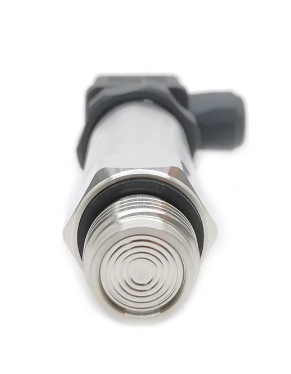

Thread type diaphragm
Hygienic anti-scaling 316L flat membrane Hygienic anti-fouling

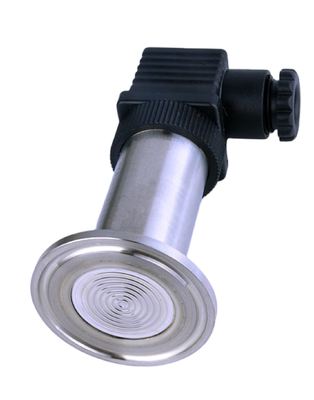

Clamp type sanitary diaphragm
50.5mm clamp ,Applicable to various pulp and viscous liquid pulp, cement, various pulp, glue, paint, etc.
Specification
|
Item
|
Lino LNT203 High temperature waterproof flat film flush pressure transmitter diaphragm
|
|
Brand
|
Lino
|
|
Pressure range
|
0-10bar
|
|
Output
|
4-20mA
|
|
Power
|
24V
|
|
Accuracy
|
0.25%
|
|
Thread
|
G1/2，M20*1.5，Clamp
|
|
Temperature range
|
-25-125C
|
|
Protection grade
|
IP67
|
