It is convenient and safe. And the data can be monitored at any time by 4G, WIFI or Ethernet.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Uleengen
-
Model Number:
-
30GFS
-
Speed:
-
1500rpm/1800rpm
-
Weight:
-
1000KG
-
Phase:
-
3 Phase / single phase
-
Cooling method:
-
water cooled
-
Power Factor:
-
0.8 or 1
-
Protection Grade:
-
IP23
-
Exciter Type:
-
Brushless, self-exciting. PMG
-
Insulation Class, Temperature Rise:
-
H / H
-
Controller:
-
DSE 6020
-
Circuit Breaker:
-
DELIXI /CHNT
-
Certification:
-
CE ISO BV
Quick Details
-
Rated Voltage:
-
220V, 380V, 400V, 415V, 440V, 480V
-
Frequency:
-
50HZ / 60HZ
-
Warranty:
-
1 - 2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Uleengen
-
Model Number:
-
30GFS
-
Speed:
-
1500rpm/1800rpm
-
Weight:
-
1000KG
-
Phase:
-
3 Phase / single phase
-
Cooling method:
-
water cooled
-
Power Factor:
-
0.8 or 1
-
Protection Grade:
-
IP23
-
Exciter Type:
-
Brushless, self-exciting. PMG
-
Insulation Class, Temperature Rise:
-
H / H
-
Controller:
-
DSE 6020
-
Circuit Breaker:
-
DELIXI /CHNT
-
Certification:
-
CE ISO BV
Product Description
Product parameters
|
Genset Model
|
Prime Power (kW)
|
Prime Power (kVA)
|
Diesel Engine Model
|
Alternator Model
|
Overall Size (mm)
|
Gross Weight (kg)
|
|
CCFJ40C
|
40
|
50
|
4BTA3.9-GM47
|
MP-H-40-4
|
1700*750*1300
|
760
|
|
CCFJ50C
|
50
|
62.5
|
6BT5.9-GM83
|
MP-H-50-4
|
1980*830*1550
|
970
|
|
CCFJ64C
|
64
|
80
|
6BT5.9-GM83
|
MP-H-64-4
|
1980*830*1550
|
970
|
|
CCFJ75C
|
75
|
94
|
6BT5.9-GM83
|
MP-H-75-4
|
1980*830*1550
|
970
|
|
CCFJ90C
|
90
|
112.5
|
6BTA5.9-GM100
|
MP-H-90-4
|
2000*850*1550
|
1000
|
|
CCFJ100C
|
100
|
125
|
6CT8.3-GM115
|
MP-H-100-4
|
2100*850*1400
|
1350
|
|
CCFJ120C
|
120
|
150
|
6CTA8.3-GM155
|
MP-H-120-4
|
2100*850*1400
|
1350
|
|
CCFJ150C
|
150
|
188
|
6LTAA8.9-GM200
|
MP-H-150-4
|
2350*1000*1700
|
2100
|
|
CCFJ200C
|
200
|
250
|
NTA855-DM
|
MP-H-200-4
|
2800*1020*1750
|
2700
|
|
CCFJ250C
|
250
|
312.5
|
NTA855-DM
|
MP-H-250-4
|
2800*1020*1750
|
2700
|
|
CCFJ300C
|
300
|
375
|
KTA19-DM
|
MP-H-300-4
|
3100*1200*2100
|
4200
|
|
CCFJ350C
|
350
|
438
|
KTA19-DM
|
MP-H-350-4
|
3100*1200*2100
|
4200
|
|
CCFJ400C
|
400
|
500
|
KTA19-DM
|
MP-H-400-4
|
3100*1200*2100
|
4200
|
Product Description
MOBILE APP REMOTE MONITORING
ONE BUTTON START FOUR PROTECTION CONTROL SYSTEM
Automatic control, Failure report, alarm and shutdown, Multilingual LCD display
Over and Under Speed protection
Over Current protection
Low and High Battery Volt protection
Under / Over Voltage protection
Start Failure protection
Charge fail protection
Low Oil Pressure protection
High water temperature protection
AUTOMATIC START CONTROL SYSTEM
Automatic start and stop, data monitoring, Remote control, Multilingual LCD display.
100% COPPER WIRE BRUSHLESS ALTERNATOR
1. Advanced automatic voltage regulator control, providing +1.0% voltage regulation.
2. 2/3 winding pitch. lt is the best design for uninterruptible power supply equipment and other nonlinear loads.
3. Standard IP23 protection level.
4. Overload capacity: 110% overload one hour within 12 running hours.
HIGH QUALITY CORROSION RESISTANT 50'C RADIATOR
Strong and Sturdy. Excellent aluminum or copper design.
lt is safe, durable and corrosion resistance.
Antifreeze will be added in cold weather.
CHOOSE THE RIGHT CONFIGURATION ACCORDING TO YOUR NEEDS

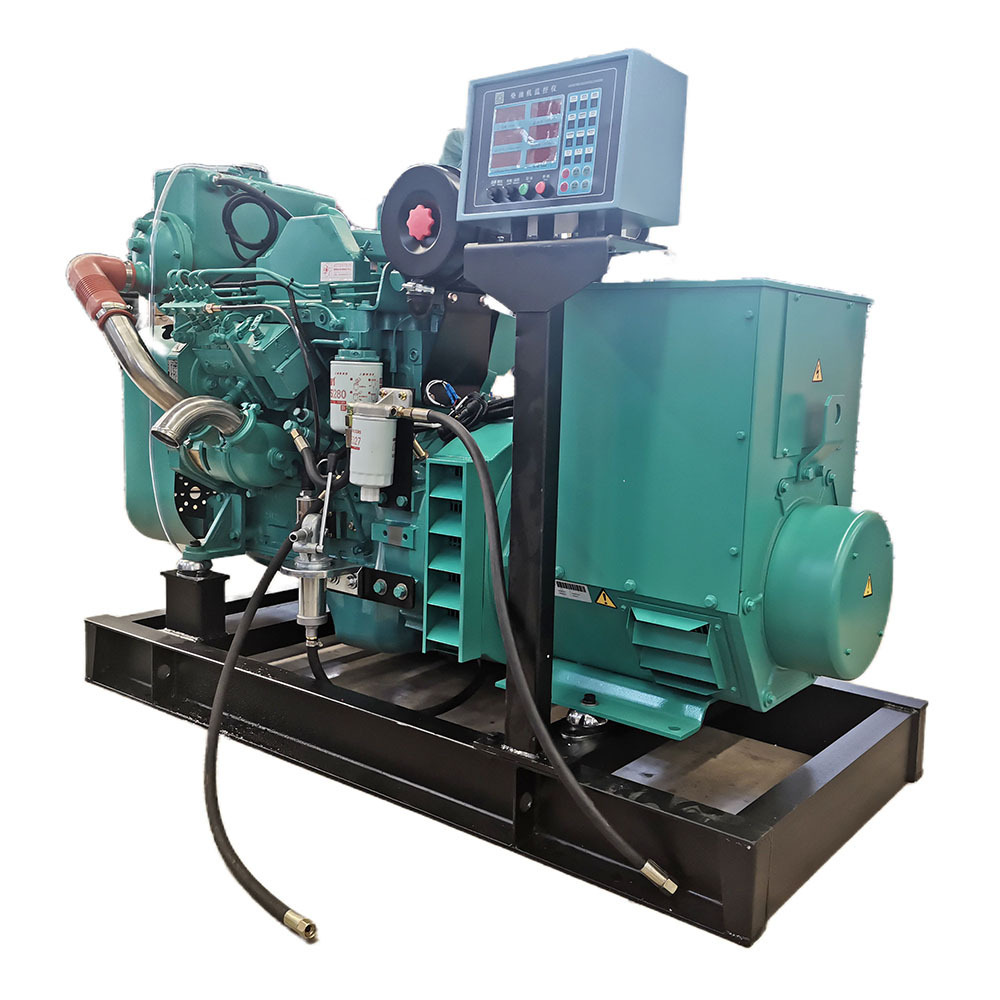

OPEN TYPE GENERATOR SET
1.Brand new diesel engine.
2. high quality corrosion resistant radiator.
3. Famous brand brushless alternator. AC 220V, 380V, 400V, 415V, 440V, 480V, 50HZ/60HZ at your choice.
4. Manual/Auto start control system with protection function.
5. Anti vibration suspension absorbers.
6. Base frame with 8-24 hours fuel tank.
7. Main line Circuit breaker/ ATS.
8. Big capacity start batteries
9. Muffler, exhaust pipe, flexible connect pipe, flange.
10. Forklift hole and lugs are mounted on the base frame.
SILENT TYPE GENERATOR SET
1.Silent type unit Soundproof and weatherproof canopy, which is made by 1.5- 2mm cold steel.
2.The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.
3.5mm mute cotton and good exhaust system. Noise level ≤75dBA at 7 meters
4. Forklift hole and lugs are mounted on the base frame.
5.Emergency stop button mounted on canopy to faciliate emergency operations.
6.Control panel viewing window allows users to monitor the control panel.
7.Lubricant and coolant drain are installed for convenient replacement.
MOBILE TRAILER GENERATOR SET
1.Trailer equipped with a hand brake to ensure the safety in driving.
2. reflective strip enhances recognition when driving at night.
3. Equipped with 750r16 tire to prevent the genset skidding.
4. Four collapsible support legs can fix the genset easily.
5. The genset is firmly connected with the trailer without shaking
6. 360 ° turn. The trailer has high mobility, low center of gravity and stable
performance
7.Retractable Cables for your choice.
8.Mobile trailer unit is suggested for the emergency power supply.
CONTAINERIZED GENERATOR SET
1.Suggested for the generator set capacity above 500kw and outdoor operation.
2.Customized Standard or non-standard container for your choice.
3.Large access doors for easy maintenance and operation
4.Insulation and mute cotton, surface color steel plate
5.Blinds for intake and exhaust
6.Floor anti-skid plate
7.with fire detection and CO2 fire extinguishing system. Additionally dry powder portable fire extinguishers fitted
Ptoduct Details
01
Brand new diesel engine.
02
Base frame with 8-24 hours fuel tank. with forklift slot, lifting hole.
03
Anti vibration suspension absorbers
04
Main line Circuit breaker/ ATS
05
Fuel level indictor.
