Quick Details
-
Brand Name:
-
PHIPPS
-
Model Number:
-
M10*1.5
-
Product Name:
-
solid carbide machine tap
-
Workpiece:
-
Stainless steel, Steel, Aluminum
-
Standard:
-
DIN
-
Size:
-
M2~M24
-
Tolerance:
-
H1, H2, H3, H4
-
Usage:
-
Machine Tools
-
Service:
-
OEM&ODM
-
Shipment:
-
UPS, Fedex, DHL, EMS or Sea
-
Delivery Time:
-
6-14 days
Quick Details
-
Warranty:
-
non
-
Type:
-
TAP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PHIPPS
-
Model Number:
-
M10*1.5
-
Product Name:
-
solid carbide machine tap
-
Workpiece:
-
Stainless steel, Steel, Aluminum
-
Standard:
-
DIN
-
Size:
-
M2~M24
-
Tolerance:
-
H1, H2, H3, H4
-
Usage:
-
Machine Tools
-
Service:
-
OEM&ODM
-
Shipment:
-
UPS, Fedex, DHL, EMS or Sea
-
Delivery Time:
-
6-14 days
Product Paramenters

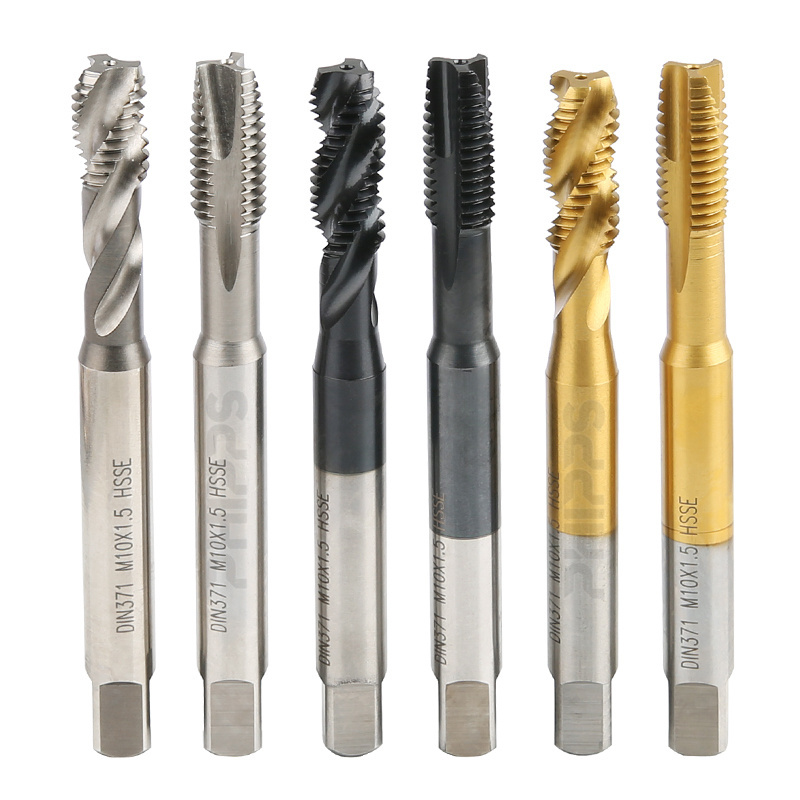

PHIPPS solid carbide M14 left hand thread tap M18 spiral flute point tap DIN371 DIN376 HSS HSSE straight flute tap
Product Name
|
cutting straight spiral flute screw machine HSSE tap
|
Material
|
Alloy steel, HSS/HSS-CO
|
Type
|
Machine tap, hand tap, forming tap etc.
|
Flute
|
Spiral flute tap; Spiral pointed flute tap; Straight flute tap
|
Pitch
|
Coarse Pitch, Fine Pitch
|
Tolerance
|
H1, H2, H3, H4
|
Coating
|
TiN/TiCN/uncoated
|
Standard
|
DIN, JIS, BS, ANSI and ISO
|
Size
|
M2~M24
|
Hole type
|
Spiral flute taps: Longhole + Blind Hole
Straight flute taps: Through-hole + Shallow blind hole
Tip tap: Through-hole
|
Workpiece material
|
Hardened Steel, stainless steel, carbon Steel, general steel, iron
aluminum, copper and other metal steel
|
Used
|
Lathe, Radial Drilling Machine, Bench Drill Machine, Pillar Drill Machine, Vertical Milling Machine
|
Flexibilitiy
|
Small orders are acceptable for quick delivery and to help you to test firstly
|
Notes:
DIN371 standard below M10, M10 and above DIN376 standard, M2~M6 are tip heads
Products Description
Size
|
Ovarall length
|
Blade length
|
shank diamer
|
d
|
M2
|
45
|
8
|
2.8
|
2.1
|
M2.5
|
50
|
9
|
2.8
|
2.1
|
M3
|
56
|
9
|
3.5
|
2.7
|
M3.5
|
56
|
11
|
4
|
3
|
M4
|
63
|
12
|
4.5
|
3.4
|
M4.5
|
70
|
13
|
6
|
4.9
|
M5
|
70
|
13
|
6
|
4.9
|
M6
|
80
|
15
|
6
|
4.9
|
M7
|
80
|
15
|
7
|
5.5
|
M8
|
90
|
18
|
8
|
6.2
|
M9
|
90
|
18
|
9
|
7
|
M10
|
100
|
20
|
10
|
8
|
M12
|
110
|
23
|
9
|
7
|
M14
|
110
|
25
|
11
|
9
|
M16
|
110
|
25
|
12
|
9
|
M18
|
125
|
30
|
14
|
11
|
M20
|
140
|
30
|
16
|
12
|
M22
|
140
|
30
|
18
|
14.5
|
M24
|
160
|
36
|
18
|
14.5
|
Size
|
Ovarall length
|
Blade length
|
shank diamer
|
d
|
M2
|
45
|
6
|
2.8
|
2.1
|
M2.5
|
50
|
7.5
|
2.8
|
2.1
|
M3
|
56
|
5
|
3.5
|
2.7
|
M3.5
|
56
|
6
|
4
|
3
|
M4
|
63
|
7
|
4.5
|
3.4
|
M4.5
|
70
|
8
|
6
|
4.9
|
M5
|
70
|
8
|
6
|
4.9
|
M6
|
80
|
10
|
6
|
4.9
|
M7
|
80
|
10
|
7
|
5.5
|
M8
|
90
|
13
|
8
|
6.2
|
M9
|
90
|
13
|
9
|
7
|
M10
|
100
|
15
|
10
|
8
|
M12
|
110
|
18
|
9
|
7
|
M14
|
110
|
20
|
11
|
9
|
M16
|
110
|
20
|
12
|
9
|
M18
|
125
|
25
|
14
|
11
|
M20
|
140
|
25
|
16
|
12
|
M22
|
140
|
25
|
18
|
14.5
|
M24
|
160
|
30
|
18
|
14.5
|
