Quick Details
-
Brand Name:
-
Huastlink
-
Model Number:
-
HC-S2404EG
-
Place of Origin:
-
Guangdong, China
-
POE ports:
-
24*10/100Mbps
-
uplink ports:
-
2*10/100/1000Mbps,1*1000Base-X SFP fiber slot port (Data)
-
SFP fiber:
-
2*10/100/1000Mbps
-
Product Name:
-
24 Port POE Switch
-
3-position DIP switch::
-
V/F/D
-
V:
-
Port 1-24 ports enable Vlan
-
F:
-
21-24 ports enable forced power supply mode
-
D:
-
Power supply ports 1-24 enable the PoE watchdog function
-
power:
-
300W
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12.8G
-
Brand Name:
-
Huastlink
-
Model Number:
-
HC-S2404EG
-
Place of Origin:
-
Guangdong, China
-
POE ports:
-
24*10/100Mbps
-
uplink ports:
-
2*10/100/1000Mbps,1*1000Base-X SFP fiber slot port (Data)
-
SFP fiber:
-
2*10/100/1000Mbps
-
Product Name:
-
24 Port POE Switch
-
3-position DIP switch::
-
V/F/D
-
V:
-
Port 1-24 ports enable Vlan
-
F:
-
21-24 ports enable forced power supply mode
-
D:
-
Power supply ports 1-24 enable the PoE watchdog function
-
power:
-
300W

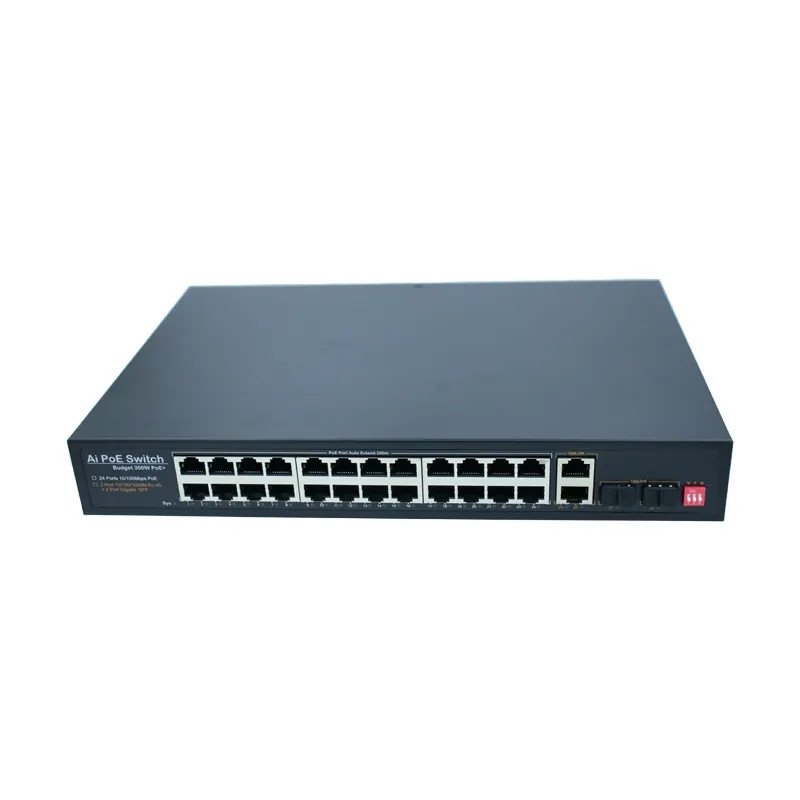

24 Port 300w Poe Switch 2port 1000m+2SFP management POE security Switch for IP camera
Product Description
|
Model number
|
HC-S2404EG
|
|
Port nomber
|
2*10/100Base-TX Uplink RJ45 ports (Data)
|
|
Port number
|
24*10/100Base-TX PoE ports (Data/Power)
|
|
|
2*1000Base-X SFP fiber slot port (Data)
|
|
POE Port
|
Port 1-24support PoE
|
|
Ethernet Port Feature
|
10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
|
|
Data rate
|
10/100M
|
|
Special Features
|
With the Dial code switch（can be customized）
SW1: VLAN SW2: Force Output
SW3: Watchdog
|
|
LED Indicator
|
Running indicator: Sys (Green)，Network indicator: Link (Green)
|
|
Dimension
|
310*205*44mm
|
|
Power Supply
|
Build-in power adaptor AC100~240V 50-60Hz
|
|
Net /Gross Weight
|
About 2Kg/2.5Kg
|
|
Environment
|
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
|
|
|
IEC61000-4-5(Lightning protection/Surge): ±4kV 10/700us
|
|
|
Storage Temperature: -40℃-70℃
|
|
|
Relative Humidity: 5%-90%(non-condensing)
|
