Quick Details
-
Brand Name:
-
LVTONG
-
Colour:
-
optional
-
special:
-
safty, low speed, easy handle
-
Size:
-
L3100*W1200*H1900mm
-
controller:
-
1266/275A
-
battery:
-
8V,6 units
-
Service:
-
OEM
Quick Details
-
Model:
-
LT_A4
-
Type:
-
Golf Cart
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LVTONG
-
Colour:
-
optional
-
special:
-
safty, low speed, easy handle
-
Size:
-
L3100*W1200*H1900mm
-
controller:
-
1266/275A
-
battery:
-
8V,6 units
-
Service:
-
OEM

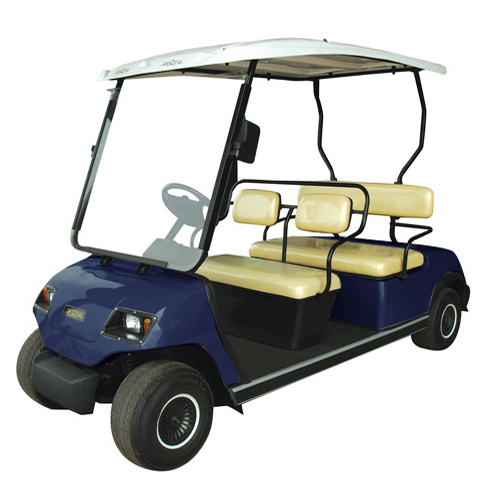

4 seats electric sightseeing resort buggy (LT_A4)
|
Electric system |
controller |
1266/275A |
|||
|
battery |
trojan battery 8V,6 units |
||||
|
motor |
KDS48V/3.7KW motor |
||||
|
charger |
Computer Intelligent,input 220V/110V,ourput 48V,20A |
||||
|
Charging time |
Less than 12 hours(discharging rate 80%) |
||||
|
Body configuration |
Glass |
PC glass |
Sun Roof |
ABS Vacuum forming
|
|
|
seat |
leather |
Floor |
Autiskid rubber floor |
||
|
Rear mirror |
Handoperated,both side |
Steering |
Dual automotive-style strut and self-adjust rack-and pinion steering |
||
|
DC/Light/Signal |
48V/12V-300W Front light,turning light,rear light,horn,Buzzer |
||||
|
Body |
PP Vacuum forming |
||||
|
Dash Board |
PP Vacuum forming,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse. |
||||
|
Braking system |
Rear drum brake+compound pedal brake |
||||
|
Front axle and suspension |
Independent suspension,helical spring +cylinder hydraulic shock absorption |
||||
|
Rear axle and suspension |
Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption |
||||
|
Tire diameter |
452mm |
||||
|
Parameter
|
Length*width*height |
3100*1200*1900mm |
|||
|
Loading passenger |
4 |
||||
|
Max speed km/h |
24km/h |
||||
|
Mileage /km |
80—100km(flat road) |
||||
|
Max climbing ability |
25% |
||||
|
Mini turning radium(m) |
4.2m |
||||
|
Mini ground clearance |
110mm |
||||
|
Wheel base |
Front 930/back 1010mm |
||||
|
Braking distance |
4.3m |
||||
1.Delivery date: 15 days for mass producing
2. 1*20'GP fit 4 units. 1*40'HQ fit 16 units
3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive
Payment:
1. T/T
2. L/C
Color of choice:
CE Certificate & ISO9001:
