Quick Details
-
Product name:
-
support jacks/ props for building price / used construction props
-
Material:
-
Q235, Q195
-
Surface Treatment:
-
painted, pre-galvanized, hot dipped galvanized, powder painting
-
Style:
-
heavy or light duty
-
Lock pin:
-
G type or straight
-
Plate:
-
square or flower plate
-
Pipe Thickness:
-
1.6mm--4mm
-
Outer Tube:
-
48mm,56mm,60mm
-
Inner Tube:
-
40mm,48mm
-
Length:
-
600mm--5500mm
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Zhiyi
-
Model Number:
-
Normal
-
Product name:
-
support jacks/ props for building price / used construction props
-
Material:
-
Q235, Q195
-
Surface Treatment:
-
painted, pre-galvanized, hot dipped galvanized, powder painting
-
Style:
-
heavy or light duty
-
Lock pin:
-
G type or straight
-
Plate:
-
square or flower plate
-
Pipe Thickness:
-
1.6mm--4mm
-
Outer Tube:
-
48mm,56mm,60mm
-
Inner Tube:
-
40mm,48mm
-
Length:
-
600mm--5500mm
Quick details
floor support jacks/ props for building price / used construction props
|
Outer Diameter |
48mm--60mm |
|
Pope Thickness |
1.5mm--4mm |
|
Length |
600mm--5500mm |
|
Standard |
GB, ANSI, ASME, ASTM, JIS, DIN, BS, EN |
|
Material |
Q195,Q235, Q345 |
|
Package |
in pallets or in bundle or in bulk |
|
Surface Treatment |
painted, pre-galvanized, powder painted, hot dipped galvanized |
|
Type |
heavy duty or light duty |
|
Application |
slab or formwork supporting |
|
Weight |
4.74kg--16.51kg |
Specification
| Description | Adjustable Length(mm) | Outer Tube(mm) | Inner Tube(mm) | |
| Closed | Extended | |||
| Spanish Props | 800 | 1400 | 48*1.6*765 | 40*1.8*835 |
| 1600 | 3000 | 48*1.6*1600 | 40*1.8*1600 | |
| 2000 | 3500 | 48*1.6*1716 | 40*1.8*2000 | |
| 2200 | 4000 | 48*1.6*2000 | 40*1.8*2200 | |
| Italian Props | 1600 | 2900 | 56*1.6*1524 | 48*1.8*1600 |
| 1800 | 3100 | 56*1.6*1524 | 48*1.8*1800 | |
| 2000 | 3600 | 56*1.6*1750 | 48*1.8*2000 | |
| 2200 | 4000 | 56*1.6*2024 | 48*1.8*2200 | |
| German Props | 1400 | 2700 | 60*2.85*1396 | 48*3.2*1400 |
| 1600 | 2700 | 60*2.7*1550 | 48*3.2*1600 | |
| 1620 | 2640 | 60*2.0*1396 | 48*3.2*1610 | |
| 2000 | 3500 | 60*2.85*1900 | 48*3.2*2000 | |
| Middle East Props | 2200 | 4000 | 60*3.0*1900 | 48*3.5*2200 |
| 3000 | 5500 | 60*3.2*2680 | 48*3.2*2900 | |
Product Display
More specifications to choose
| Model | HEIGHT(m) | outer tube dia. | inner tube dia. | wt(kg) |
| and thickness | and thickness | +/-3% | ||
| L3002 | 1.7 to 3.0m | φ48x1.8mm | φ40x1.8mm | 8 |
| L3003 | 1.7 to 3.0m | φ48x2.0mm | φ40x2.0mm | 8.6 |
| L3202 | 1.8 to 3.2m | φ48x1.8mm | φ40x1.8mm | 8.35 |
| L3203 | 1.8 to 3.2m | φ48x2.0mm | φ40x2.0mm | 9 |
| L3602 | 2.0 to 3.6m | φ48x1.8mm | φ40x1.8mm | 9 |
| L3603 | 2.0 to 3.6m | φ48x2.0mm | φ40x2.0mm | 9.71 |
| L4002 | 2.2 to 4.0m | φ48x1.8mm | φ40x1.8mm | 9.84 |
| L4003 | 2.2 to 4.0m | φ48x2.0mm | φ40x2.0mm | 10.65 |
| L302 | 1.7 to 3.0m | φ56x1.8mm | φ48x1.8mm | 9.4 |
| L303 | 1.7 to 3.0m | φ56x2.0mm | φ48x2.0mm | 10.16 |
| L322 | 1.8 to 3.2m | φ56x1.8mm | φ48x1.8mm | 10 |
| L323 | 1.8 to 3.2m | φ56x2.0mm | φ48x2.0mm | 10.64 |
| L362 | 2.0 to 3.6m | φ56x1.8mm | φ48x1.8mm | 10.6 |
| L363 | 2.0 to 3.6m | φ56x2.0mm | φ48x2.0mm | 11.5 |
| L402 | 2.2 to 4.0m | φ56x1.8mm | φ48x1.8mm | 11.6 |
| L403 | 2.2 to 4.0m | φ56x2.0mm | φ48x2.0mm | 12.6 |
| L452 | 2.5 to 4.5m | φ56x1.8mm | φ48x1.8mm | 12.71 |
| L453 | 2.5 to 4.5m | φ56x2.0mm | φ48x2.0mm | 13.83 |
Application
Advantages

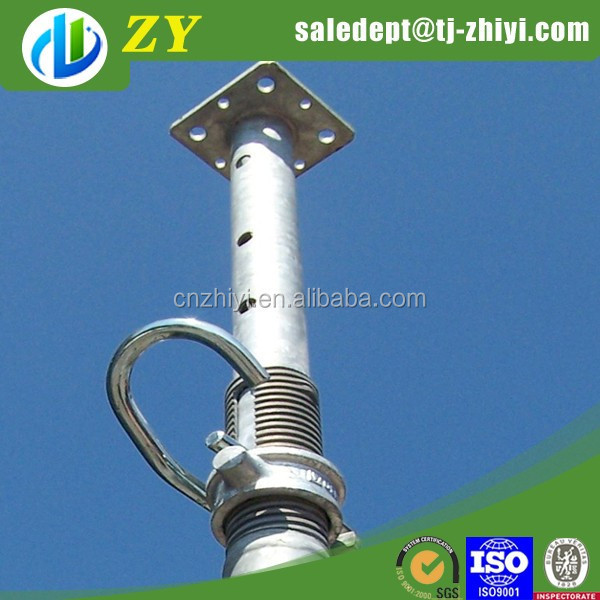

(1)Steel prop is mainly made of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories of folding treipod, head jack, the structure is simple and flexible.
(2)The structure of steel prop is simple, so it is easy to assemble and disassemble.
(3)Steel prop is adjustable because the inner tube can extend and shrink in the outer tube, so it can be adjusted according to the required height.
(4) The steel prop can be reused. Even though it is out of work, the material can also be recycled.
(5)Steel prop can be adjusted according to the different height of the cnstructions.
