Quick Details
-
Output Speed:
-
10nn
-
Weight (KG):
-
2
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
PLF60/PLE42/SPLF90
-
Typical Applications:
-
automation industrial
-
Body Length:
-
132mm
-
Ambient Temperature:
-
-10 ~ +90°C
-
Shaft Diameter:
-
22.5mm
-
Custom Design:
-
Available
-
Input shaft diameter:
-
8mm/11mm/
-
back lash:
-
20arcmin
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
10
-
Input Speed:
-
3000
-
Output Speed:
-
10nn
-
Weight (KG):
-
2
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
PLF60/PLE42/SPLF90
-
Typical Applications:
-
automation industrial
-
Body Length:
-
132mm
-
Ambient Temperature:
-
-10 ~ +90°C
-
Shaft Diameter:
-
22.5mm
-
Custom Design:
-
Available
-
Input shaft diameter:
-
8mm/11mm/
-
back lash:
-
20arcmin

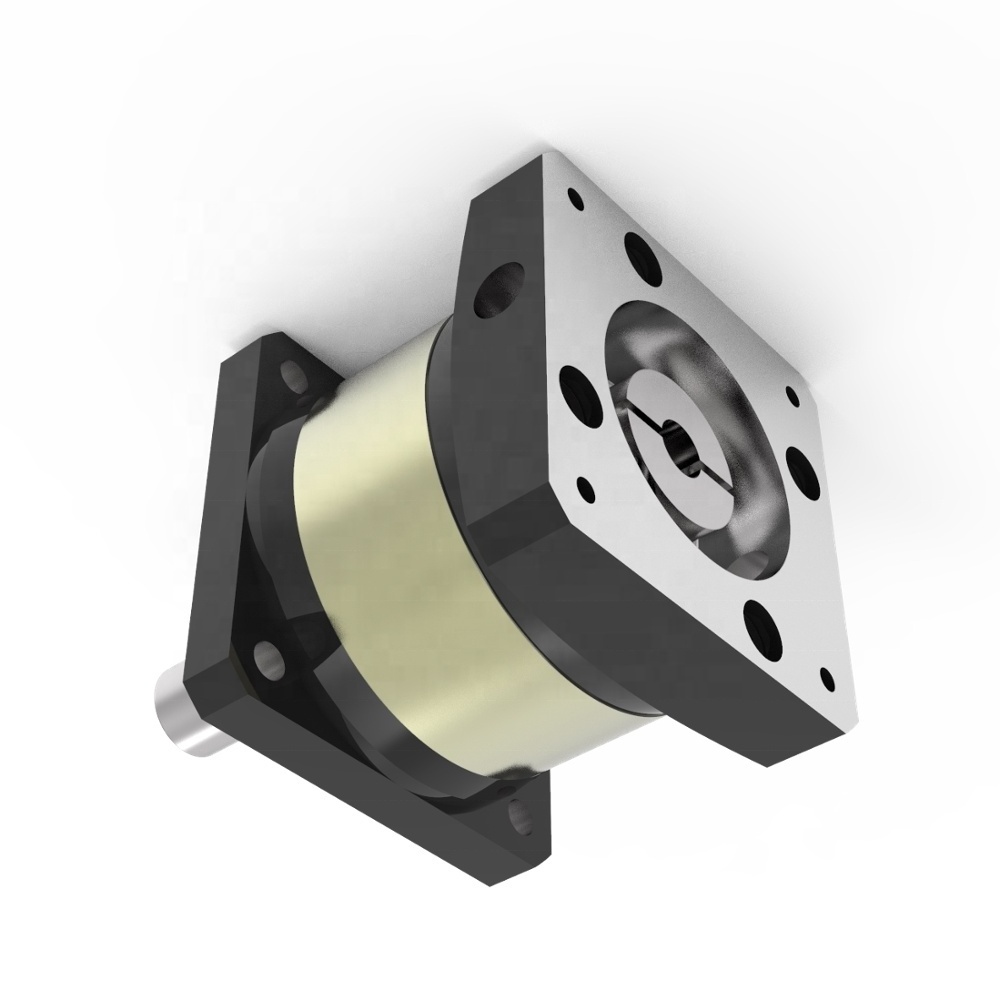

high quality planetary gearbox for servo motor, 90mm planet gearbox planetary transmission
They are suitable for nema23 nema34 stepper motor or servo motor!
| Model | Rated input speed (r/min) |
Max. input speed (r/min) |
Noise (db) | Backlash (arcmin) | Operating temperature (℃) | Service life (h) | Protection grade (IP) | Ratio i |
| PLE42 |
3000 |
6000 | ≤55 | ≤15 | -10~+90℃ | 20000 | IP54 |
3,4,5,7,10,12,15,16, 20,25,28,35,40,50,70 |
| PLF42 | 3000 | 6000 | ≤55 | ≤15 | -10~+90℃ | 20000 | IP54 |
4,5,7,10, 16,20, 25,28,35,40,50,70 |
| PLE60 | 3000 | 6000 | ≤60 | ≤20 | -10~+90℃ | 20000 | IP54 |
4,5,7,10, 16,20, 25,28,35,40,50,70 |
| PLF60 | 3000 | 6000 | ≤60 | ≤15 | -10~+90℃ | 20000 | IP54 |
4,5,7,10, 16,20,
25,28,35,40,50,70 |
| SPLF90 | 3000 | 6000 | ≤60 | ≤10 | -10~+90℃ | 20000 | IP54 |
4,5,7,10, 16,20, 25,28,35,40,50,70 |
PLE42
PLF60 For Stepper
SPLF60 For Servo
SPLF90 For Servo
