Quick Details
-
Frequency:
-
50hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
stirling engine
-
Model Number:
-
BC-38
-
Speed:
-
1500rpm
-
color:
-
blue
-
Instrument for adjusting speed:
-
Mechanic
-
Characteristic:
-
Stamford model.Brushless Self excitation. With AVR
-
Standar parts::
-
storage battery and Panel Controller
-
Additional equipments:
-
automatic Control panel
Quick Details
-
Rated Power:
-
38KVA
-
Rated Voltage:
-
230/400v,120/208v
-
Rated Current:
-
100A
-
Frequency:
-
50hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
stirling engine
-
Model Number:
-
BC-38
-
Speed:
-
1500rpm
-
color:
-
blue
-
Instrument for adjusting speed:
-
Mechanic
-
Characteristic:
-
Stamford model.Brushless Self excitation. With AVR
-
Standar parts::
-
storage battery and Panel Controller
-
Additional equipments:
-
automatic Control panel

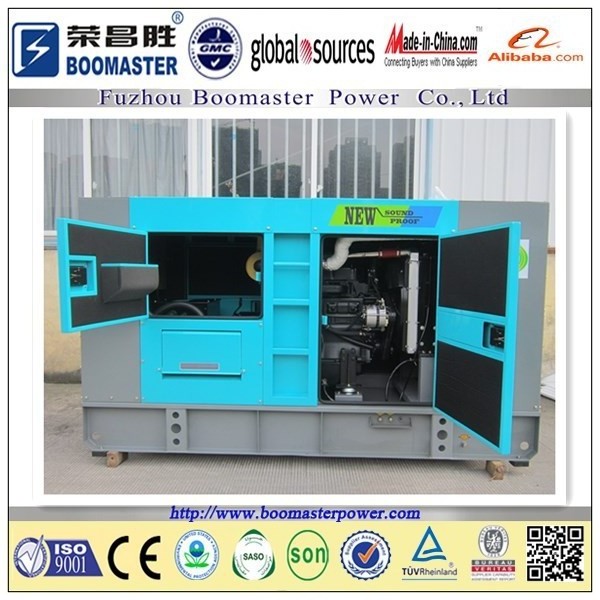

stirling engine electricity generator for sale
Generator Supply Scope:
Ø
.Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø
.brand-new engine, w/ start motor.
Ø
.brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø
.auto control panel, with LCD display.
Ø
.Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø
.Circuit Breaker,Exhaust Silencer
Ø
.Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø
.Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø
.Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø
.External recessed emergency stop button for extra safety
Ø
.The colors & Brands by your requests
Ø
.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Detail information
| Genset Model | BC-38 |
| Prime Power(Kw/Kva) | 30/38 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| sounds level | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 4BT3.9-G1 |
| Alternator Model | STG184H |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 700 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 800 |
| Engine Detail | |
| Manufacturer | Dongfeng cummins engine Co.,Ltd |
| Model | 4B3.9-G1 |
| Engine speed | 1500rpm |
| Engine Characters | water-cooled,4cylinders in line,4-cycle,direct injection |
| The maximum output(kw) | 30KW |
| Aspiration | Naturally aspirated |
| Compression ration | 16.5:1 |
| Fuel consumption(L/H) | 6.5(100%loading) |
| Displacement(Liters) | 3.9 |
| Exhaust air flow(m3/min) | 135.6 |
| Compress air flow(m3/min) | 4.13 |
| Exhaust gas flow(m3/min) | 9.96 |
| Lube-oil pan capacity(L) | 11 |
| Cooling water capacity(L) | 8Liters(Engine only) |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Mechanical |
| Alternator Detail | |
| Model | STG184H |
| Output power(Kw/Kva) | 30/38 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
|
Exciter type
|
Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price.
