Quick Details
-
Brand:
-
Kingsine
-
Product name:
-
KFA300 protection relay test set
-
MOQ:
-
1 Set
-
Application:
-
Substations etc.
-
Weight:
-
3.5kg
-
Feature:
-
Portable Handheld
-
Channels:
-
3
-
Accuracy:
-
0~0.2A:±2mA 0.2~IMax: ±(0.02%Rd+0.03Rg) Guar.
-
Output:
-
3 phase10A ac
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingsine
-
Model:
-
KFA300
-
Brand:
-
Kingsine
-
Product name:
-
KFA300 protection relay test set
-
MOQ:
-
1 Set
-
Application:
-
Substations etc.
-
Weight:
-
3.5kg
-
Feature:
-
Portable Handheld
-
Channels:
-
3
-
Accuracy:
-
0~0.2A:±2mA 0.2~IMax: ±(0.02%Rd+0.03Rg) Guar.
-
Output:
-
3 phase10A ac

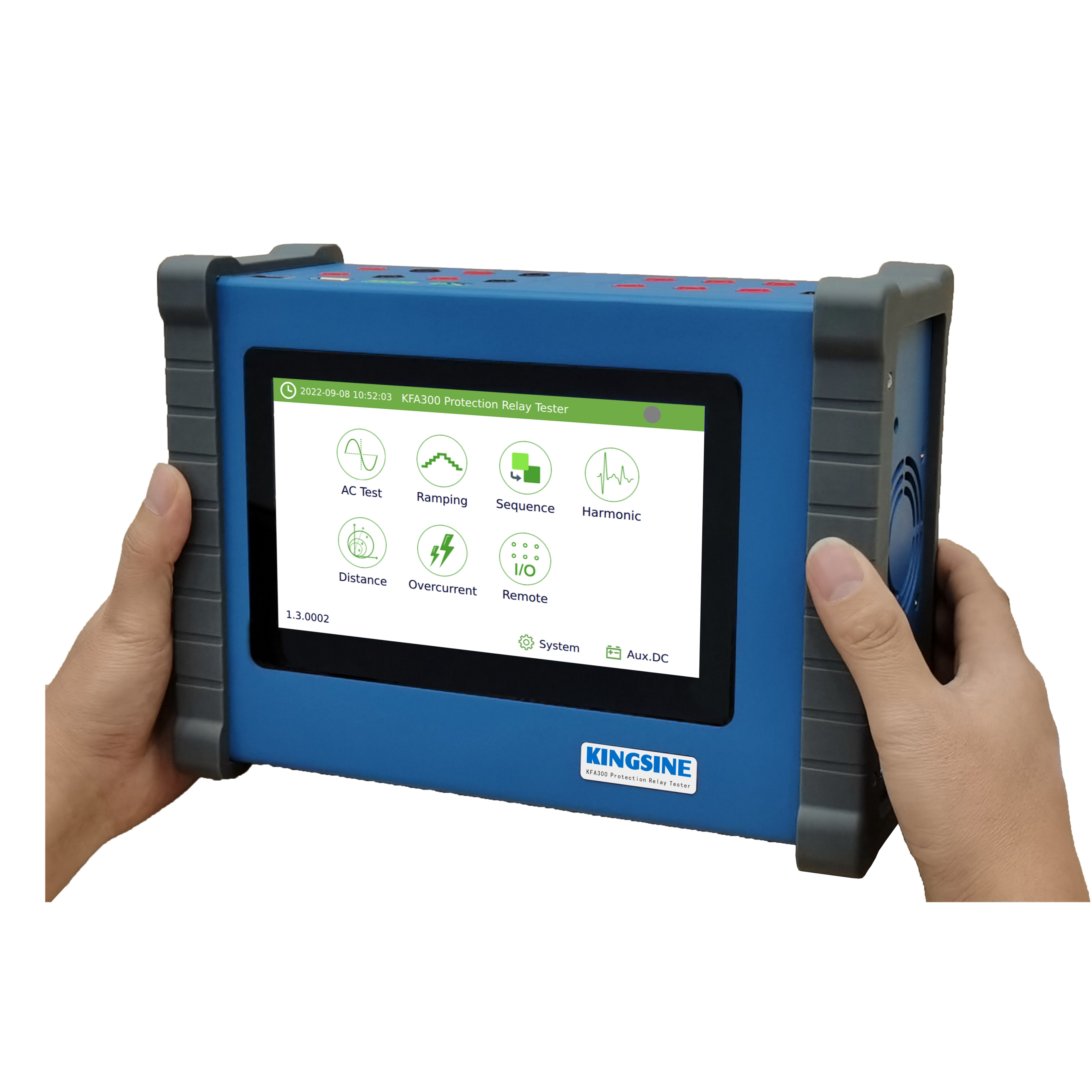

The KFA300 protection relay test set (3.5KG, Ipad Size) is independently developed by KINGSINE Electric Automation Co., Ltd . It s interior is minimalist design, with three modules fitted together , i nbuilts battery and ac adaptor dual-mode power supply, which fully meets the needs of on-site portable testing .
The KFA300 handheld mini relay protection tester not only serves as a device for testing relay protection equipment but also functions as a high-precision three-phase standard source. Within the range of 1% to 100% of its capacity , its output accuracy surpasses 0.05 class. Powered by batteries, it produces highly pure output signals with minimal harmonic distortion, making it suitable for calibration purposes of various single-phase or three-phase meters.
|
Voltage Output |
||
|
Output Range & Power |
3×265 V ac (L-N)
|
22.5 VA max each, 265V |
|
21 VA max each, 200V |
||
|
12.5 VA max each, 100V |
||
|
7 VA max each, 63.5V |
||
|
6.65 VA max each, 57.7V |
||
|
1.1 VA max each, 10V |
||
|
Accuracy |
0~1V:±2mV
|
|
|
Resolution |
0.001V |
|
|
Distortion |
<0.05%Typ. / <0.1% Guar. |
|
|
Current Output |
||
|
Output Range & Power |
3×10A ac (L-N) |
27 VA max each@10A |
|
25.5 VA max each@9A |
||
|
24 VA max@8A |
||
|
17 VA max each@5A |
||
|
3.88VAmax each@1A |
||
|
Accuracy |
0~0.2A:±2mA 0.2~IMax: ±(0.02%Rd+0.03Rg) Guar. |
|
|
Resolution |
0.001A |
|
|
Frequency & Phase Angle |
|
|
Frequency Range |
DC~1KHz |
|
Frequency Accuracy |
±5ppm |
|
Frequency Resolution |
0.001 Hz |
|
Phase Range |
0°~360° |
|
Phase Accuracy |
<0.1° Typ. / <0.2° Guar. 50/60Hz |
|
Phase Resolution |
0.001° |
|
Aux. DC Voltage Source (Battery simulator) |
|
|
Range |
24V(0.9A),48V(0.6A)Switchable;
|
|
Accuracy |
5%Rg Guar. |
