Quick Details
-
Model Number:
-
SR120-PF
-
Place of Origin:
-
Henan, China
-
Panel Efficiency:
-
19.83
-
Name::
-
Folding solar panel 120W
-
Model Number::
-
SR120-SF
-
Place of Origin::
-
Henan, China
-
Brand name::
-
SUNRY or OEM Brand
-
Dimensions::
-
530*670*65mm
-
Solar cell::
-
156mmx156mm
-
Waterproof IP Class:
-
IP65, IP67
-
Certificate::
-
ISO/CE/IEC
-
Warranty::
-
10years, 25years
-
Application::
-
Off grid, RV, Camping, Yacht or Boat Roof
Quick Details
-
Power:
-
120w
-
Color:
-
black, full black, silver
-
Brand Name:
-
SUNRY/OEM
-
Model Number:
-
SR120-PF
-
Place of Origin:
-
Henan, China
-
Panel Efficiency:
-
19.83
-
Name::
-
Folding solar panel 120W
-
Model Number::
-
SR120-SF
-
Place of Origin::
-
Henan, China
-
Brand name::
-
SUNRY or OEM Brand
-
Dimensions::
-
530*670*65mm
-
Solar cell::
-
156mmx156mm
-
Waterproof IP Class:
-
IP65, IP67
-
Certificate::
-
ISO/CE/IEC
-
Warranty::
-
10years, 25years
-
Application::
-
Off grid, RV, Camping, Yacht or Boat Roof
Product Description

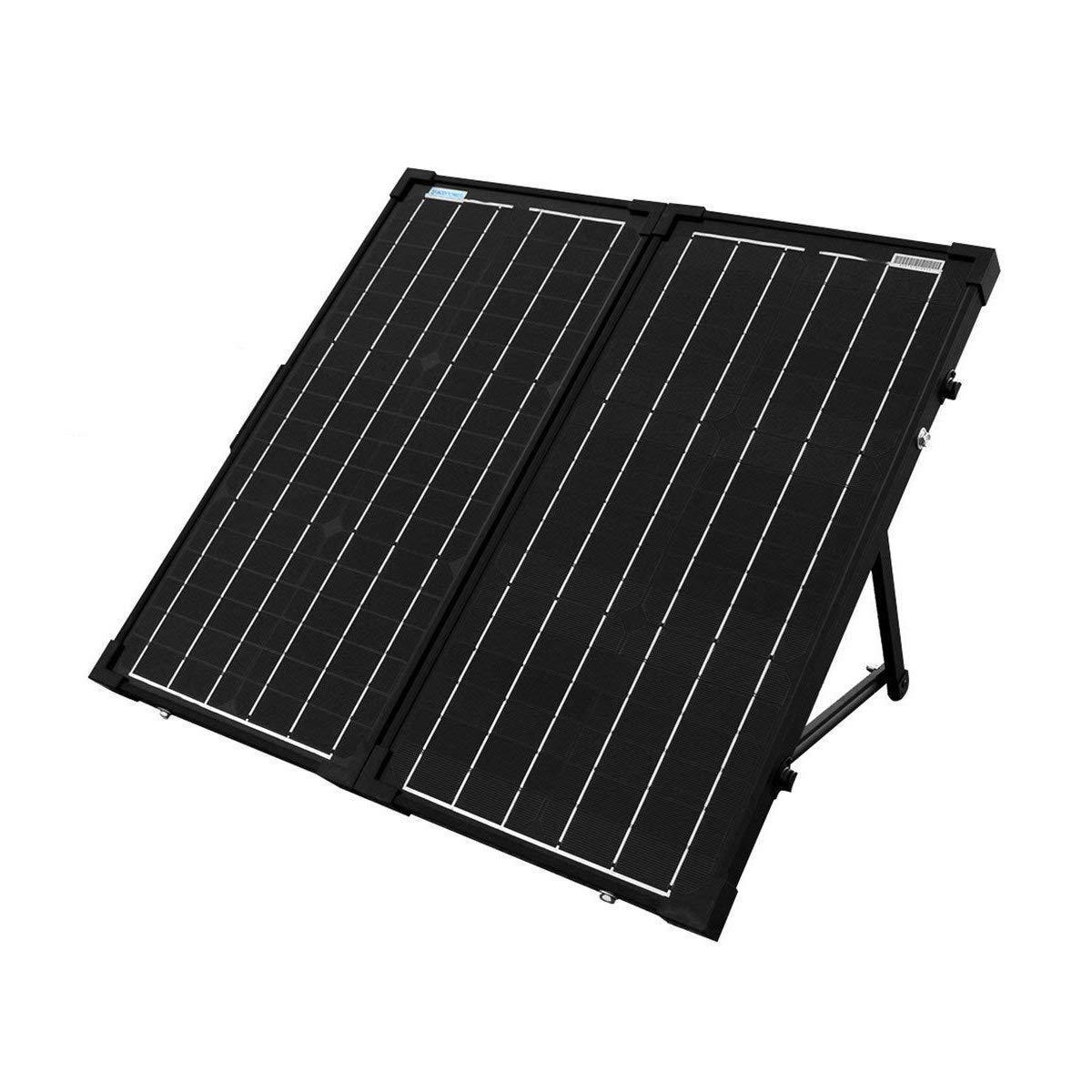

Advantages of Glass Folding Solar Panel:
Be as careful as possible during transportation, reducing the probability of breakage!!
*
High efficiency m
ono or poly solar cells with positive sorting.
* Negative-ground charge controller for compatibility with your RV, boat, trailer, etc.
* Excellent performance in low light conditions, alligator clips can be easily connected.
* Adjustable, corrosion-resistant aluminum bracket with heavy duty handle and latch for extended life.
* Excellent l ight weight but high strength. Heavy snow load upto 5400Pa.
* 25 years transferable power output warranty; 5 year material and process warranty.
* Excellent performance in low light conditions, alligator clips can be easily connected.
* Adjustable, corrosion-resistant aluminum bracket with heavy duty handle and latch for extended life.
* Excellent l ight weight but high strength. Heavy snow load upto 5400Pa.
* 25 years transferable power output warranty; 5 year material and process warranty.
Be as careful as possible during transportation, reducing the probability of breakage!!
Specification
ELECTRICAL DATA(STC)
* STC: Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C
* Measuring Tolerance: ±3%.
* Measuring Tolerance: ±3%.
|
Product Model
|
SR100-PF
|
SR120-PF
|
SR160-PF
|
SR180-PF
|
SR200-PF
|
|
Maximum power (Pmax)
|
100
|
120
|
160
|
180
|
200
|
|
Voltage at Pmax (Vmp)
|
18.0
|
18.2
|
18.4
|
18.6
|
18.8
|
|
Current at Pmax (Imp)
|
5.56
|
6.60
|
8.70
|
9.68
|
10.64
|
|
Open-circuit voltage (Voc)
|
21.6
|
21.84
|
22.08
|
22.32
|
22.56
|
|
Short-circuit current (Isc)
|
6.06
|
7.19
|
9.48
|
10.55
|
11.60
|
|
Cell Efficiency (%)
|
22.5
|
22.5
|
22.5
|
22.5
|
22.5
|
|
Foladed Module Size (mm)
|
420*680*65
|
530*670*65
|
820*510*65
|
820*580*65
|
910*670*65
|
|
Weight (Kgs)
|
9.8
|
10.8
|
14
|
16
|
18
|
Product Details:
The folding solar kit can charge 12V/24V battery directly.
1. High efficiency full black solar panels.
2. 10A waterproof solar charge controller with full protection functions.
3. Adjustable aluminium alloy stand, handle and latches.
4. 3m cable with a battery plug and a fuse.
5. Battery crocodile clips ease to connect or disconnect.
6. protective case or handle bag.
7. with installation manual.
Packing & Delivery
To better ensure the safety of your goods, we use hard cardboard 3 layer or 5 layer carton box to pack the solar panels.
Packing material is professional, environmentally friendly, to support your reselling best.
Any other customized convenient and efficient packaging services will be provided.
