Quick Details
-
Model Number:
-
LRE1-63-2P
-
Rated Voltage:
-
230/400 ~240/415,110/200~127/220
-
Rated current In:
-
16A, 25A, 32A, 40A, 63A,80A
-
Poles:
-
1P+N, 3P+N
-
SCPD fuse:
-
10000A
-
Rated residual making and:
-
500A(In=16A/25A/32A/40A)
-
Rated frequency:
-
50/60Hz
-
Fault current indicator:
-
Yes
-
Protection degree:
-
IP20
-
Storage temperation:
-
-25... +70℃
-
Connection:
-
From top and bottom
Quick Details
-
Poles Number:
-
1P+N, 3P+N
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LONGROAD
-
Model Number:
-
LRE1-63-2P
-
Rated Voltage:
-
230/400 ~240/415,110/200~127/220
-
Rated current In:
-
16A, 25A, 32A, 40A, 63A,80A
-
Poles:
-
1P+N, 3P+N
-
SCPD fuse:
-
10000A
-
Rated residual making and:
-
500A(In=16A/25A/32A/40A)
-
Rated frequency:
-
50/60Hz
-
Fault current indicator:
-
Yes
-
Protection degree:
-
IP20
-
Storage temperation:
-
-25... +70℃
-
Connection:
-
From top and bottom

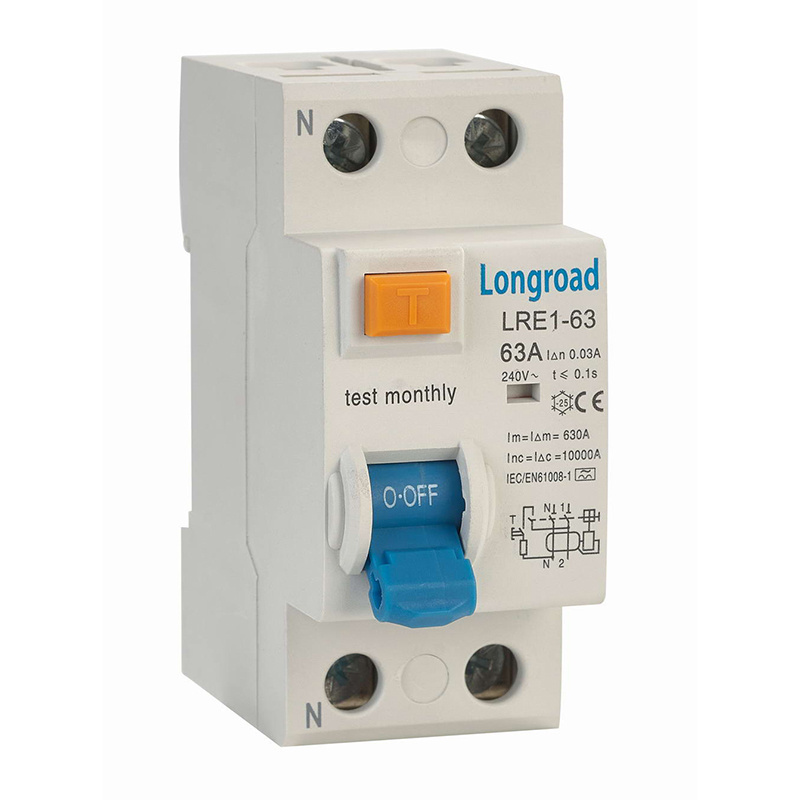

Model LRE1-63 Series Electromagnetic type RCCB
1.Compliant standards
IEC/EN61008-1
2.Major function
2.1 Control electric circuits.
2.2Protect people against indirect contacts and additional protection against direct contacts.
2.3 Protect installations against fire hazard due to insulation faults.
2.4 Residual current circuit breakers are used in housing, tertiary sector and industry.
3.Selection
3.1 Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents.
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
3.2 Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous:it ensures instantaneous tripping≤0.1s (without time-delay).
Instantaneous:instantaneous tripping<2s (with time-delay)
4.Technical parameter
|
|
Standard
|
|
IEC/EN 61008-1
|
|
||
|
Electrical
features
|
Type (wave form of the earth leakage sensed)
|
|
AC, A
|
|
||
|
|
Rated current In
|
A
|
16, 25, 32, 40, 63,80
|
|
||
|
|
Poles
|
|
1P+N, 3P+N
|
|
||
|
|
Rated voltage Ue
|
V
|
230/400 ~240/415,110/200~127/220
|
|
||
|
|
Rated sensitivity I△n
|
A
|
0.01 (Only for 1P+N 16A, 25A),0.03,0.3
|
|
||
|
|
Insulation voltage Ui
|
V
|
500
|
|
||
|
|
Rated residual making and
|
A
|
500 (In=16A/25A/32A/40A)
|
|
||
|
|
breaking capacity I△m
|
A
|
630 (In =63A)
|
|
||
|
|
Short-circuit current Inc =IΔc
|
A
|
6000/10000
|
|
||
|
|
SCPD fuse
break time under I△n Rated frequency |
A
S
Hz
|
10000
≤0.1 50/60 |
|
||
|
|
Rated impulse withstand voltage(1.2/50) Uimp
|
V
|
6000
|
|
||
|
|
Dielectric test voltage at ind. Freq. for 1 min
|
kV
|
2
|
|
||
|
|
Pollution degree
|
|
2
|
|
||
|
Mechanical
features
|
Electrical life
|
|
2, 000
|
|
||
|
|
Mechanical life
|
|
2, 000
|
|
||
|
|
Fault current indicator
|
|
Yes
|
|
||
|
|
Protection degree
|
|
IP20
|
|
||
|
|
Ambient temperature (with
daily average≤35℃)
|
℃
|
-5... +40
|
|
||
|
|
Storage temperation
|
℃
|
-25... +70
|
|
||
|
Installation
|
Terminal connection type
Terminal size top/bottom for cable
Terminal size top/bottom for busbar
Tightening torque
Mounting
|
mm²
|
Cable/U-type busbar/Pin-type busbar 25
|
|
||
|
|
|
AWG
mm²
|
18-3
10 |
|
||
|
|
|
AWG
N· m
|
18-8
2.5
|
|
||
|
|
|
In-Ibs.
|
22
On DIN rail EN 60715 (35mm) by means of fast clip device
|
|
||
|
|
Connection
|
|
From top and bottom
|
|
||
5.Overall and mounting dimensions (mm)
SKD parts
This is the SKD parts for this product. If you need to purchase parts and assemble them yourself to avoid customs duties, we can also provide them.
Please contact me.
