- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380/220v50Hz
-
Dimension(L*W*H):
-
1070*710*1970mm
-
Weight (KG):
-
600
-
Power (kW):
-
4
-
Working desk size::
-
360*480mm
-
Warranty of core components::
-
2years
-
X-Y trip::
-
300*400mm
-
Spindle head stroke::
-
200mm
-
Spindle servo stroke::
-
300mm
-
Spindle head speed::
-
20-120mm
-
Clamping electrode:
-
0.3-3mm
-
Advantage::
-
Good stability and low electrode consumption
-
Guide and table distance::
-
300mm
-
Power::
-
4kw
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2022
-
Brand Name:
-
HARS
-
Voltage:
-
380/220v50Hz
-
Dimension(L*W*H):
-
1070*710*1970mm
-
Weight (KG):
-
600
-
Power (kW):
-
4
-
Working desk size::
-
360*480mm
-
Warranty of core components::
-
2years
-
X-Y trip::
-
300*400mm
-
Spindle head stroke::
-
200mm
-
Spindle servo stroke::
-
300mm
-
Spindle head speed::
-
20-120mm
-
Clamping electrode:
-
0.3-3mm
-
Advantage::
-
Good stability and low electrode consumption
-
Guide and table distance::
-
300mm
-
Power::
-
4kw
|
Product name
|

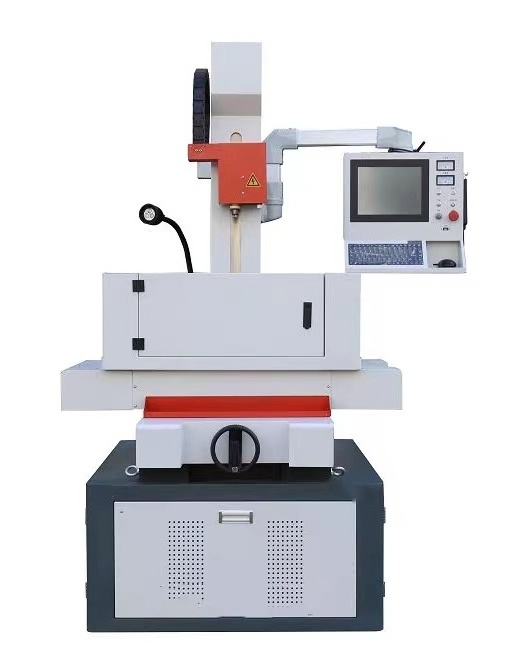

Drill EDM machine
|
|
Type
|
D703
|
|
Application
|
Metal drilling
|
|
Workbench size (mm)
|
480*360
|
|
X/Y axis travel (mm)
|
400*300
|
|
Spindle stroke(mm)
|
250
|
|
Servo stroke(mm)
|
330
|
|
Max.adjusting speed of spindle(mm)
|
200
|
|
Distance between working table&guider(mm)
|
240
|
|
Turn head (C axis) speed(mm)
|
20-120
|
|
Power(V/Hz)
|
380/50
|
|
Max.working current(A)
|
24
|
|
Capacity of working fluid(L)
|
25
|
|
Max.pressure of working fluid(Mpa)
|
5-7
|
|
Dimension(LxWxH)(mm)
|
1070x710x1970
|
|
Weight(kg)
|
600
|
Q: Could I visit your factory ?
A:Of course,Yes! Warmly welcome all customer from all over the world to visit our factory.
Q: What about the price?
A: We promise the price we offer is lowest if same application, only to enlarge the market share.And given you cost price for consumable parts.
Q:Could you modified and production machine according to our designer ?What information will you need ?
A6:Of course yes.The worktable size and worktable travel, your special requirements.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training. we also can dispatch our engineer go to your country and assist you on installation and operation. But all accommodation charge and Round trip tickets should be stand by the buyer
Q:Whats your fast delivery time ?
A:If have stock after we received pre payment with 15days can arrange shipment.
Generally delivery time around 30 days not include national holiday.
Q: How to solve the quality problems after sales?
A: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours days,we will reply satisfied solution for you.
Q:What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
