Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APLUS
-
Model Number:
-
N/A
-
Depth:
-
1.5-3mm
-
Weight Capacity:
-
500-3000kg
-
Width:
-
Customized
-
Height:
-
Customized
-
Product name:
-
Heavy duty pallet racking system
-
Usage:
-
Warehouse Storage
-
Color:
-
RAL System
-
Surface treatment:
-
Power Coated
-
Size:
-
Customer Size
-
Packing:
-
Customers' Request
-
Style:
-
Heavy Duty Selective Shelf
-
Certification:
-
ISO9001
-
Warranty:
-
1 Year
-
MOQ:
-
1 Set
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APLUS
-
Model Number:
-
N/A
-
Depth:
-
1.5-3mm
-
Weight Capacity:
-
500-3000kg
-
Width:
-
Customized
-
Height:
-
Customized
-
Product name:
-
Heavy duty pallet racking system
-
Usage:
-
Warehouse Storage
-
Color:
-
RAL System
-
Surface treatment:
-
Power Coated
-
Size:
-
Customer Size
-
Packing:
-
Customers' Request
-
Style:
-
Heavy Duty Selective Shelf
-
Certification:
-
ISO9001
-
Warranty:
-
1 Year
-
MOQ:
-
1 Set
Products Description

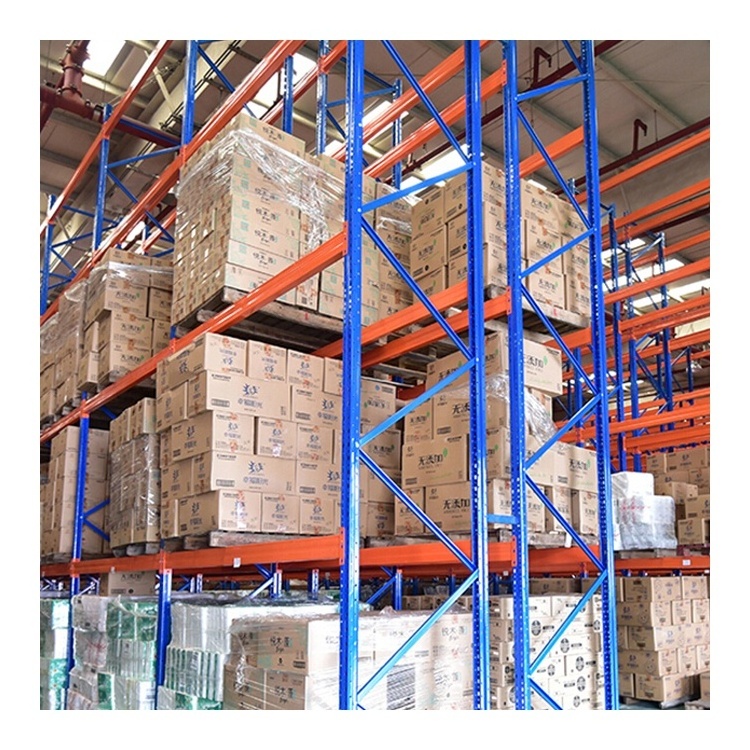

Heavy duty selective pallet racking
Selective pallet rack is very cost-effective providing high capacity storage and easy access to all pallets,
It can be adjusted by each 50mm pitch and can load 800-3000kg/layer.
Steel plate,wood plate,and MDF can be chose as the layer board.
Pallet rack suits to store various type of goods,It offers the best solutions for warehouses with palletized products.
Specification
|
Product Name
|
|
Heavy duty pallet racking system
|
|
|
|||
|
Upright Section
|
|
80x60, 90x67, 100x67, 120x95mm etc, thickness: 1.8-3.0mm
|
|
|
|||
|
Beam Section
|
|
100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm
|
|
|
|||
|
Material
|
|
High-Quality Q235 Cold rolled steel
|
|
|
|||
|
Standard Color
|
|
Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037)
|
|
|
|||
|
Adjustable Pitch
|
|
50mm,50.8mm,76.2mm
|
|
|
|||
|
Access Style
|
|
High accessibility & selectivity
|
|
|
|||
|
Surface Treatment
|
|
Powder Coated or Galvanized
|
|
|
|||
|
Application Environment
|
|
Normal Temperature or Freezer
|
|
|
|||
|
Design Service
|
|
Free CAD service available
|
|
|
|||
|
Back-up Service
|
|
Installation Drawing/On Site Instruction
|
|
|
|||
|
Lead time
|
|
3 weeks for 2*40' container
|
|
|
|||
|
Standard package
|
|
Palletized, Export-Purpose Packaging
|
|
|
|||
|
Container Load
|
|
15-18tons/1*20' container, 20-25tons/1*40' container
|
|
|
|||
|
Trade Term
|
|
EXW/FOB/CNF/CIF
|
|
|
|||
