Quick Details
-
Product name:
-
Double heads Stone Carving Machine Cnc Router
-
Spindle power:
-
5.5kw HQD Water Cooling Spindle
-
Control system:
-
NC Studio Control System
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Stepper Motor
-
Driving Motor:
-
Leadshine Driver
-
Transmission:
-
XY Rack Gear
-
Inverter:
-
Best inverter
-
Function:
-
Stone Engraving Carving Cutting
-
MOQ:
-
1 Set
Quick Details
-
Type:
-
CNC Router
-
Power:
-
5.5KW
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Double heads Stone Carving Machine Cnc Router
-
Spindle power:
-
5.5kw HQD Water Cooling Spindle
-
Control system:
-
NC Studio Control System
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Stepper Motor
-
Driving Motor:
-
Leadshine Driver
-
Transmission:
-
XY Rack Gear
-
Inverter:
-
Best inverter
-
Function:
-
Stone Engraving Carving Cutting
-
MOQ:
-
1 Set
Multi head marble granite stone cnc router cutting headstone stone carving cnc router machine

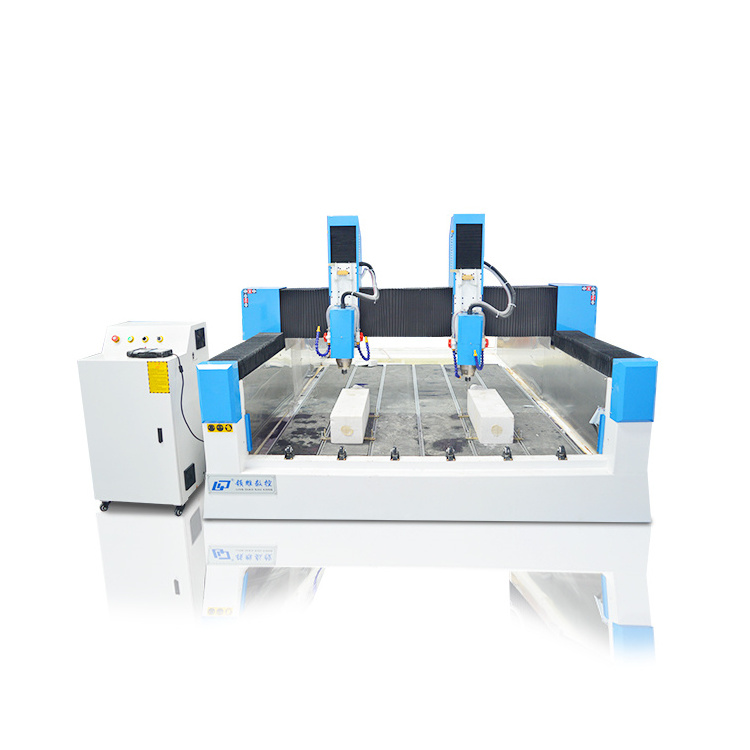

Image of Stone CNC Router:
F eatures of Stone CNC Router
1.
I
ntelligent protection work table
: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
2.
Fully in line with international standards
: can use
ucancam,
type3, artcam
software.
3.
N
cstudio system:
control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing, carving or cutting.
4.
The overall program
structure welding tempering aging treatment:
is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
5.
Suitable for
a variety of materials
:
processing large quantities of production.
6. Take the water cooling system: for marble tool when works for marble ,granite ,stone and so on.
Technical Parameter of Stone CNC Router
|
Model
|
LD-1325 Double heads Stone cnc router
|
|
X, Y, Z Axis working area
|
1300mm*2500mm*500mm
|
|
Machine frame
|
Heavy duty
|
|
Table structure
|
Aluminum T-slot&PVC
|
|
X Y transmission
|
Rack Gear
|
|
Z Transmission
|
Ball Screws
|
|
X Y Z guide rail
|
TAIWAN HINWIN Square rail
|
|
Spindle power
|
5.5KW
|
|
Max Spindle speed
|
24000r/min
|
|
Max traveling speed
|
25m/s
|
|
Max. working Speed
|
18m/s
|
|
Processing Accuracy
|
±0.025mm
|
|
Reposition Accuracy
|
Less than 0.025mm
|
|
Driving system
|
Stepper motor or Servo motor
|
|
Command language
|
HPGL, G code
|
|
Operation system
|
DSP/MACH3/ NCSTUDIO/Syntec/Simens
|
|
Working voltage
|
AC380V/220V/Custom made
|
|
Interface
|
USB
|
|
Command
|
G code*.u00*.mmg*plt
|
|
Work Mode
|
step motor (servo option)
|
|
Net weight /Gross weight
|
1200KG
|
|
Package dimension
|
4300mm*2250mm*1900mm
|
Detail Image of Stone CNC Router
Application of Stone CNC Router
Application Industry:
stone processingcarving ,aluminum Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board and MDF processing cutting, stamp cutting.
Material:
Stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on
Sample of Stone CNC Router
Service of Stone CNC Router
1. Machine User Manual/Operation Video will be send with machine together.
2. Machine spare parts can be freely change within warranty.
3. Machine operation and other problem can be solved by Skype, Whatsapp face to face video.
4. 24 Hours Online Service Team with professional technology.
5. If necessary,can arrange for engineers to provide after sales service.
Package of Stone CNC Router
1. We will send the machine with strong plywood package to your port or door address by sea or by airplane. Please kindly tell us your near port or address with postcode.
2. We have reliable shipping agent to insure the safe,convenient and timely delivery.
3. Its need about 25-30 working days to produce the machine after get your deposit. All things are tested well, then we arrange the delivery.
