❖ Feature: s imple and easy to operate with motor and cylinder driven cutting device.
❖ Single blade which could cut different length as need, this is f lexible and convenient for more sizes.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Henglet
-
Voltage:
-
220V/380 V or other require
-
Power:
-
1.5 KW
-
Dimension(L*W*H):
-
105cm*65cm*98cm
-
Weight:
-
150 kg
-
Inner diameter of tube:
-
50 to 150 mm
-
Thickness of Tube Wall:
-
1 to 15 mm
-
Length of mother tube:
-
600 mm
-
Length to be cut:
-
Minimum 10 mm
-
Knife Quantity:
-
1 piece
-
Work Air Pressure:
-
0.6 Mpa
-
Control Mode:
-
Button click
-
Upload/Download Tube:
-
Manual
-
Cutting Speed:
-
15 times/min
-
Dimension(mm):
-
105cm*65cm*98cm
Quick Details
-
Production Capacity:
-
10 times/min
-
Product Type:
-
Paper Tube Cutting Machine
-
Place of Origin:
-
China
-
Brand Name:
-
Henglet
-
Voltage:
-
220V/380 V or other require
-
Power:
-
1.5 KW
-
Dimension(L*W*H):
-
105cm*65cm*98cm
-
Weight:
-
150 kg
-
Inner diameter of tube:
-
50 to 150 mm
-
Thickness of Tube Wall:
-
1 to 15 mm
-
Length of mother tube:
-
600 mm
-
Length to be cut:
-
Minimum 10 mm
-
Knife Quantity:
-
1 piece
-
Work Air Pressure:
-
0.6 Mpa
-
Control Mode:
-
Button click
-
Upload/Download Tube:
-
Manual
-
Cutting Speed:
-
15 times/min
-
Dimension(mm):
-
105cm*65cm*98cm
Products Description

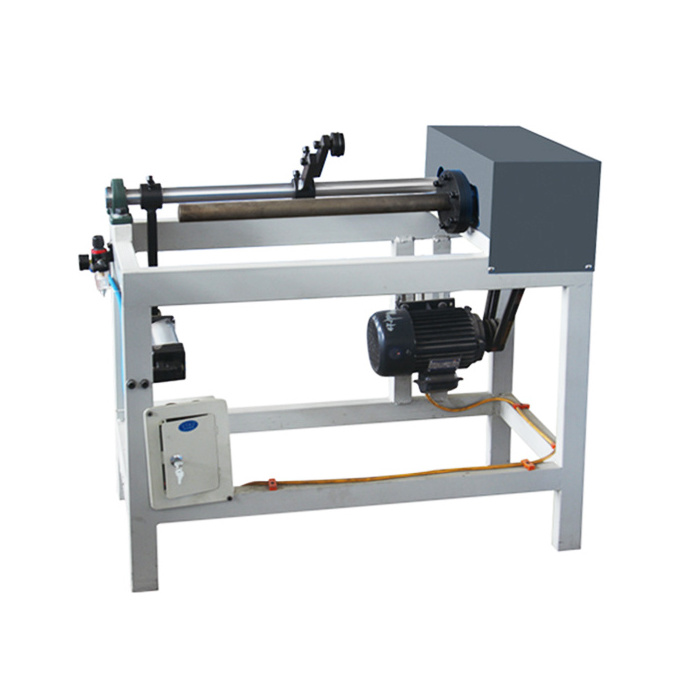

Model#HLT-MQ150-1 Manual Type Paper Tube Cutting Machine
❖
Usage: suitable for small inner diameter and more thickness wall paper tube cutting.
❖ Feature: s imple and easy to operate with motor and cylinder driven cutting device.
❖ Single blade which could cut different length as need, this is f lexible and convenient for more sizes.
❖ Feature: s imple and easy to operate with motor and cylinder driven cutting device.
❖ Single blade which could cut different length as need, this is f lexible and convenient for more sizes.
Details Images
Cylinder To Driven Blade
Shaft show
Whole Machine Show-Side
Blade and Holder Show
Parameter Sheet
|
Item No.
|
HLT-MQ150-1
|
Manual Paper Tube Cutting Machine
|
|
01
|
Paper tube Diameter
|
Φ50 to 150 mm
|
|
02
|
paper tube thickness
|
1 to 15 mm
|
|
03
|
Cutting paper tube Length
|
10 to 600 mm
|
|
04
|
Working air pressure
|
0.6 Mpa
|
|
05
|
Knife quantity
|
1 set
|
|
06
|
Motor power
|
1.5 kw
|
|
07
|
Cutting Mode
|
Pneumatic/ Button control
|
|
08
|
Discharge tube way
|
Manual
|
|
09
|
Main dimensions: L* W * H
|
1050*650*980mm
|
|
10
|
Total weight
|
150 kg
|
Structure Drawing
|
1
|
Main frame: used for connect and fix each part to assembly into completed machine.
|
|
|
||
|
2
|
Control Panel: to control the working state of machine which is convenient and fast in operation.
|
|
|
||
|
3
|
Optional head cutter mechanism.
|
7
|
Cutting System(blade& holder)
|
||
|
4
|
Main motor to run cutter system
|
8
|
Slicing guide rail, servo control slipping.
|
||
|
5
|
Middle support part of the spindle.
|
9/11
|
Tail support (other one is for short shaft)
|
||
|
6
|
Shaft/Spindle to feed paper tube in here.
|
10
|
Fuselage electrical control for shaft tail
|
||
After-sales Service
❖ Online guide to installation and commission; On-site service available if need and will send professional engineer
to
your office/factory to install and test the machine and train your worker for free.
❖
Warranty period for all machines is one (1) year.
❖ Out of warranty one year, guide and help you to maintain the machines in free charges.
❖ Every 2 years, we will help customers to overhaul the complete machines in free charges.
❖ Out of warranty one year, guide and help you to maintain the machines in free charges.
❖ Every 2 years, we will help customers to overhaul the complete machines in free charges.
