Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PINK
-
Model Number:
-
NEASL-05
-
Max Load:
-
150Kg
-
Platform Size:
-
1470*405mm
-
Space Of Rungs:
-
28 cm
-
Step Number:
-
5*2,6*2,7*2Steps
-
Main Material:
-
Aluminum 6063
-
Aluminum Thickness:
-
1.2 mm
-
Certificate:
-
GS,CE, EN131
-
Product name:
-
Scaffolding Ladder
-
Functions:
-
Insulation
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PINK
-
Model Number:
-
NEASL-05
-
Max Load:
-
150Kg
-
Platform Size:
-
1470*405mm
-
Space Of Rungs:
-
28 cm
-
Step Number:
-
5*2,6*2,7*2Steps
-
Main Material:
-
Aluminum 6063
-
Aluminum Thickness:
-
1.2 mm
-
Certificate:
-
GS,CE, EN131
-
Product name:
-
Scaffolding Ladder
-
Functions:
-
Insulation

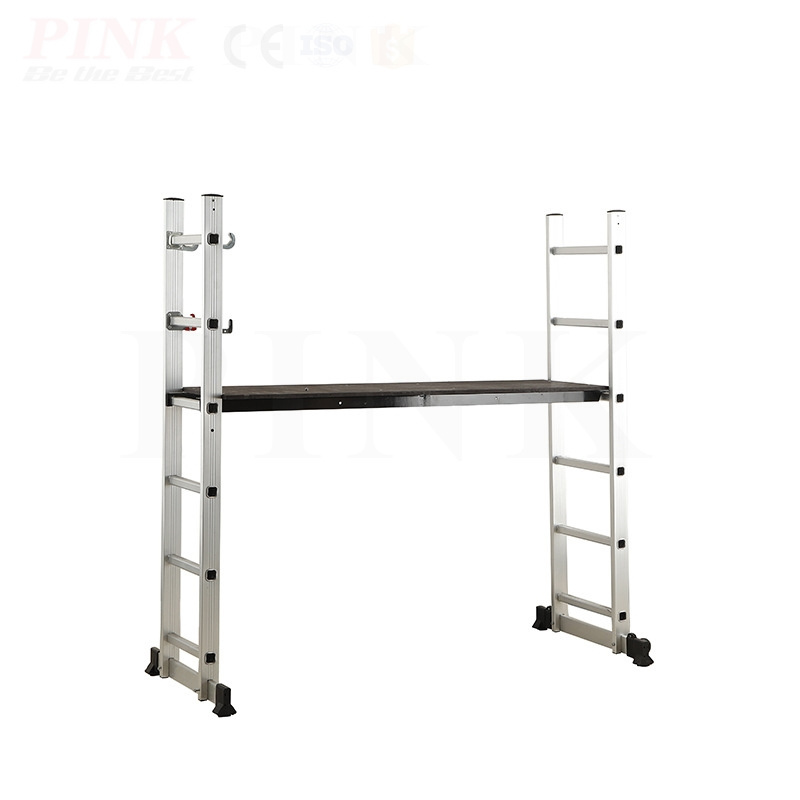

Aluminum Scaffolding Ladder Ladder Product Features:
1.Max load.:150kg
2.Platform Size: 1470*405mm
3.Space Of Rungs: 28 cm
4.Step Number: 5*2,6*2,7*2Steps
5.Main Material: Aluminum 6063
6.Aluminum Thickness: 1.2 mm
7.Certificate: GS,CE, EN131
Aluminum Scaffolding Ladder Details & Function:
1.The overall structure of the
Aluminum Scaffolding Ladder
adopts a "block type" combination design, with standardized components and no loose parts. Without any installation tools, a high-altitude operation platform can be set up in a short time.
2.
Aluminum Scaffolding Ladder
parts are light in weight and easy to install, handle and store. The weight of the scaffolding is only one third of that of the traditional steel structure scaffolding, so there is no need to worry about crushing the ground.
3.
Aluminum Scaffolding Ladder
components have high connection strength, stability, scientific support mechanism design, and overall structure is safe and stable.
4.
Aluminum Scaffolding Ladder
can be used as telescopic single ladder, herringbone ladder, workbench, and can also be used on stairs (the heights of the two sides are different), or can be used as two single-sided ladders against the wall. Easy to use.
5.
Aluminum Scaffolding Ladder
can be placed in any corner of indoor and outdoor, with reasonable design, beautiful appearance, no rust, no corrosion, strong and durable. Products are widely used in engineering, major companies, supermarkets, advertising companies and so on.
Aluminum Scaffolding Ladder
before use:
1. Make sure that all rivets, bolts, nuts, and moving parts are tightly connected, the studs and steps are firm and reliable, and the extension springs and hinges work well.
2. The ladder should be kept clean and free of grease, oil, wet paint, mud, snow and other slippery materials.
3. The operator's shoes are kept clean, and leather-soled shoes are prohibited.
4. When the height above the ground is more than 1.5 meters, safety belts should be provided.
Aluminum Scaffolding Ladder
Using:
1. Do not use ladders when you are tired, taking drugs, drinking alcohol, or have a physical disability.
2. The ladder should be placed on a solid and stable ground, and it should not be placed on the ice, snow or slippery ground surface without anti-skid and fixed equipment.
3. It is forbidden to exceed the indicated maximum load-bearing mass during operation.
4. Do not use ladders in strong winds.
5. The metal ladder is conductive, and avoid close to live places.
6. When climbing, people face the ladder, hold their hands firmly, and keep their center of gravity in the center of the two ladder posts.
7. Do not stand on a step within 1 meter from the top of the ladder during operation. Always keep a safe protective height of 1 meter, and never climb over the highest support point on the top.
8. Do not put your hands over the top of your head during operation, otherwise your body will lose balance and cause danger.
9. It is forbidden to cross directly from one side of the ladder to the other.
Aluminum Scaffolding Ladder
Maintenance:
1. Clean the ladder regularly to avoid certain chemicals from corroding the surface of the ladder. Check the joints regularly and fill with lubricant if necessary.
2. If the ladder material is bent, broken, or the connection is not working properly, please contact the manufacturer for professional maintenance.
Model | Product Name | Specification | Packing Size(cm) |
G.W/N.W
(kg) |
PCS/CTN | 20´GP(pcs) |
NEASL-01
(CE EN131) |
Aluminum Scaffolding Ladder |
Max load.:150kg
Platform Size: 1470*405mm Space Of Rungs: 28 cm Step Number: 5*2 Steps Main Material: Aluminium 6063 & 1.2 mm |
140*43*18 | 17.5/17 | 1 | 254 |
NEASL-02
(CE EN131) |
Aluminum Scaffolding Ladder |
Max load.:150kg
Platform Size: 1470*405mm Space Of Rungs: 28 cm Step Number: 6*2 Steps Main Material: Aluminium 6063 & 1.2 mm |
169*43*18 | 18.5/18 | 1 | 220 |
NEASL-03
(CE EN131) |
Aluminum Scaffolding Ladder |
Max load.:150kg
Platform Size: 1470*405mm Space Of Rungs: 28 cm Step Number: 7*2 Steps Main Material: Aluminium 6063 & 1.2 mm |
198*43*18 | 19.5/19 | 1 | 210 |
