Chinese famous brand mini excavator price with swing boom

FOB Reference Price: Get Latest Price

≥1 Sets

US $10200

≥4 Sets

US $9850

≥8 Sets

US $9750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 18.8KW

Place of Origin:: Shandong, China

Brand Name:: WOLF

Maximum Digging Height:: 2390mm

Maximum Digging Depth:: 2050mm

Machine Weight:: 1800 kg

Max Digging Radius:: 3860mm

Rated Speed:: 2.8

Engine Model:: Laidong KM385B

rated power:: 18.1kw/ 2200r/min

No. of cylinder:: 3

Swinging speed:: 10-12 r/min

Traveling tracking force:: 15 KN

Bucket digging force:: 11.5 KN

Arm digging force:: 9.3 KN

Working Pressure:: 16 Mpa

Hydraulic pump:: TJHD

Hydraulic pump flow:: 2x22+8.8 L/min

Quick Details

Operating Weight:: 1800kg

Bucket capacity:: 0.1m³

Engine Brand:: Laidong KM385B

Power:: 18.8KW

Place of Origin:: Shandong, China

Brand Name:: WOLF

Maximum Digging Height:: 2390mm

Maximum Digging Depth:: 2050mm

Machine Weight:: 1800 kg

Max Digging Radius:: 3860mm

Rated Speed:: 2.8

Engine Model:: Laidong KM385B

rated power:: 18.1kw/ 2200r/min

No. of cylinder:: 3

Swinging speed:: 10-12 r/min

Traveling tracking force:: 15 KN

Bucket digging force:: 11.5 KN

Arm digging force:: 9.3 KN

Working Pressure:: 16 Mpa

Hydraulic pump:: TJHD

Hydraulic pump flow:: 2x22+8.8 L/min

Product Description

WOLF WE18 excavator is our figured product with swing boom, and extra hose for attachments such as

hammer, auger. Swing motor and travelling motor are using American Eaton brand, which is more stable

and give strong power to the machine. This mini excavator has two versions: canopy or enclosed cabin,

so you can choose according to your situation. It c ould be widely used in gardening, orchard, farming,

basement reconstruction, waste residue carrying in coal washing factory, paper-making factory etc. and

could replace 4~5 manpower.

WE18 with canopy

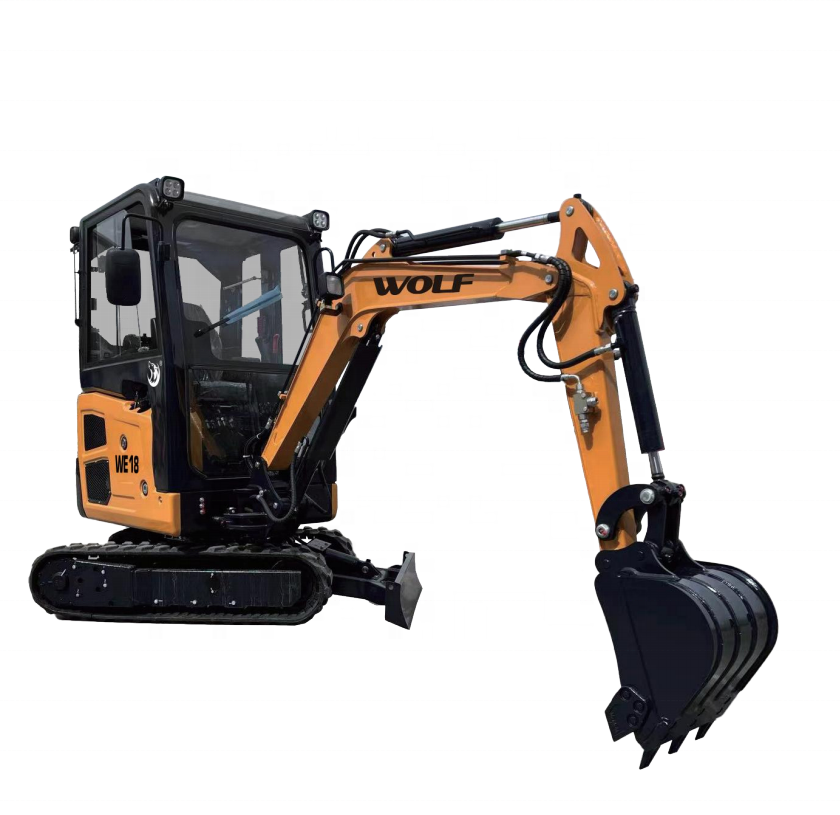

WE18 with enclosed cabin

Engines:
The standard engine is Chinese famous brand Laidong KM385B engine 18.1 kw, optional engines

we have Laidong Euro 5 18.8kw engine or Kubota EuroV/ EPA 14kw engine for different market requests.

Technical Specification

Engine	Model	Laidong KM385B 18.1kW/2200rpm
	Type	Direct injection, water cooled, natural intake
	No. of cylinder	3
Main Performance	Swing Speed	r/min	10-12
	Traveling Speed	km/H	2.8
	Grade ability	%	70(35°)
	Traveling Tracking Force	kN	15
	Bucket Digging Force	kN	11.5
	Arm Digging Force	kN	9.3
Hydraulic System	Hydraulic system working pressure	Mpa	16
	Hydraulic Pump	Gear Pump	TJHD
	Hydraulic pump flow	L/min	2×22+8.8
	Swing Motor		Eaton
	Traveling Motor		Eaton
	Fuel Tank Capacity	L	26
	Hydraulic Tank Capacity	L	27
Overall Dimensions	Overall Length	mm	3800
	Overall Width	mm	1050
	Overall Height	mm	2280
	Ground clearance	mm	485
	Track length	mm	1630
	Track width	mm	230
	Undercarriage width	mm	1050
	Undercarriage ground clearance	mm	235
	Dozer Blade	mm	1050×240
Operation parameters	Operation Weight	KG	1800
	Bucket Capacity	m3	0.06
	Max. Digging Radius	mm	3860
	Max. Digging Depth	mm	2050
	Max. Digging Height	mm	3370
	Max. Dumping Height	mm	2390
	Max. Dozer Cutting	mm	270
	Max. Dozer Lifting	mm	235
	Boom Deflexion (Left/Right)	°	75/45
	Tail Swing Radius	mm	1125
	Front Min. Swing Radius	mm	1720

You can rely on every detail of this WE18 excavator.

Special design on engine and radiation space, enhanced cooling fan to increase cooling efficiency
Famous brand hydraulic system parts ensure the stable quality.
equipped with double fuel filter to guarantee fuel purity to protect engine
Boom deflexion design meet narrow work condition, reinforced rubber track to protect road
extend hydraulic line for various attachments.
comfort seat make operator easy to work.
Cabin with heater, extendable track are optional.
