Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1800 mm
-
Travel (Y Axis)(mm):
-
5000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Voltage:
-
220V/ 380V / others
-
Dimension(L*W*H):
-
6m (L) * 2.7m (W) * 2m (H)
-
Power (kW):
-
10
-
Weight (KG):
-
2550
-
Product name:
-
1.8m*5m CNC Router Machine with Automatic Tool Changer
-
Structure:
-
Heavy duty steel structure
-
Working size:
-
1800mm x 5000mm x 200mm
-
Table:
-
Vacuum table with T-slot
-
Spindle:
-
9kw air cooling spindle
-
Motor and driver:
-
Japan Yaskawa servo motor and driver
-
Control system:
-
Syntec
-
Tool Magazine:
-
Linear type automatic tool changer
-
water pump:
-
Yes
-
Lubrication system:
-
Automatic
-
Certification:
-
CE BV TUV
Quick Details
-
Working Table Size(mm):
-
1800 x 5000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1800 mm
-
Travel (Y Axis)(mm):
-
5000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Voltage:
-
220V/ 380V / others
-
Dimension(L*W*H):
-
6m (L) * 2.7m (W) * 2m (H)
-
Power (kW):
-
10
-
Weight (KG):
-
2550
-
Product name:
-
1.8m*5m CNC Router Machine with Automatic Tool Changer
-
Structure:
-
Heavy duty steel structure
-
Working size:
-
1800mm x 5000mm x 200mm
-
Table:
-
Vacuum table with T-slot
-
Spindle:
-
9kw air cooling spindle
-
Motor and driver:
-
Japan Yaskawa servo motor and driver
-
Control system:
-
Syntec
-
Tool Magazine:
-
Linear type automatic tool changer
-
water pump:
-
Yes
-
Lubrication system:
-
Automatic
-
Certification:
-
CE BV TUV

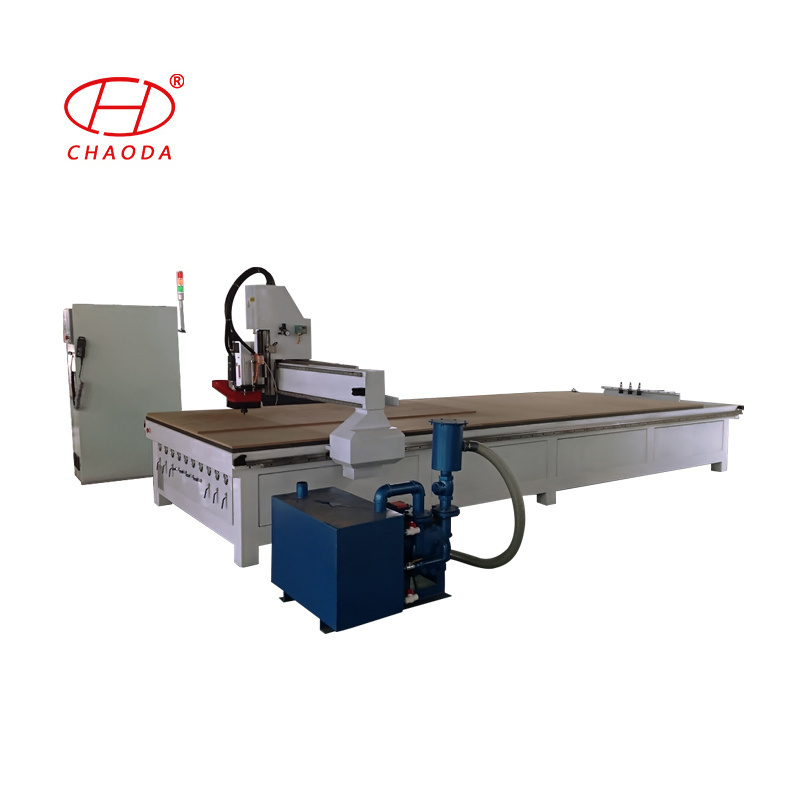

1.8m*5m CNC Router Machine with Automatic Tool Changer, Alucobond, MDF, PVC Composite Board Carving Machine
- All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.
- Big power 9kw spindle, can make easily and fast cutting,engraving,milling and drilling.
- Vacuum table with T-slot, double use, not only can process hard materials like aluminium composite panel,PVC,acrylic..but also can process soft materials like wood, EPS foam,MDF...
- With linear type automatic tool changer, spindle change tools automatically,no need manual work.
- Advanced Syntec control system, very stable and easy to operate.
| Model No. | JCT1850L |
| working size | 1800*5000*200mm |
| Lathe bed structure | Thick Steel frame |
| Table | Vacuum with T-slot |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.02mm |
| Max. travelling speed | 0-55000mm/min |
| Max. working speed | 0-25000mm/min |
| Spindle | 9kw air cooling ATC spindle |
| Tool magazine | Linear type automatic tool changer, 8 tools ability |
| Driving system | Japan YASKAWA servo motor and driver |
| Operating system | Syntec |
| Operation language | G code |
| Auto tool sensor | Yes |
| Auto oil system | Yes |
| Working voltage | AC380V, 3-phase, 50Hz |
| Option | Mist cooling system |
It can process Composite boards, Alucobond, PVC, Rigid plastics, Woods, MDF, Eps foam, Styrofoam, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum panels, etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
