Quick Details
-
Application:
-
Refrigeration Parts, Refrigeration Parts
-
Product name:
-

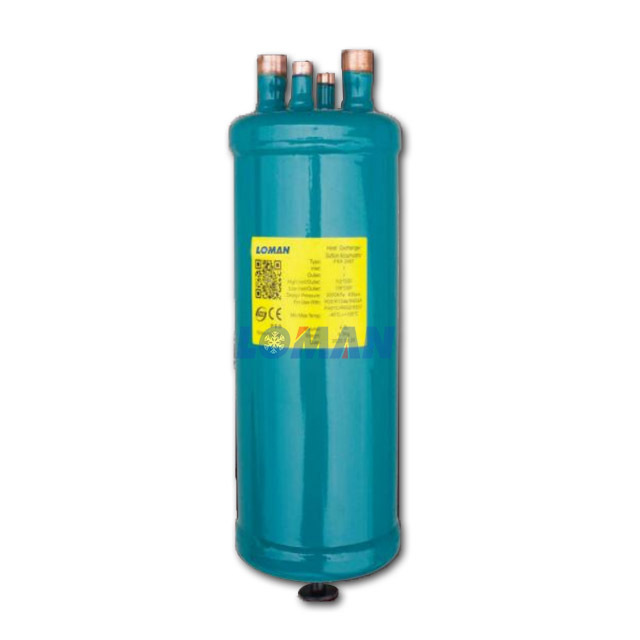

Heat Exchanger Suction Accumulator
-
Usage:
-
Condensing Unit, Refrigeration
-
Refrigerant:
-
R404A/R22/R134a
-
Material:
-
Sturdy steel
-
Brand Name:
-
LOMAN
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Connection size:
-
1/2''-2-1/8'
-
Color:
-
Black/Blue/Customized
-
Application:
-
Refrigeration Parts, Refrigeration Parts
-
Product name:
-
Heat Exchanger Suction Accumulator
-
Usage:
-
Condensing Unit, Refrigeration
-
Refrigerant:
-
R404A/R22/R134a
-
Material:
-
Sturdy steel
-
Brand Name:
-
LOMAN
Product Description
The function of Suction accumulator with heat exchanger is to put the pipes for high pressure high temperature refrigerant and low pressure low temperature refrigerant to one vessel to exchange high and low temperature, to cool or warming refrigerant. After the heatexchange, a better performance of the whole system and cooling effect achieved.
In air conditioning refrigeration,the refrigerant pipelines have high pressure and low pressure lines,the high pressure refrigerant with high temperature needs cooled, and thelow pressure from evaporator needed to be separated to liquid and gas refrigerant, the liquid refrigerant need some time and temperaturetobeevaporated to gas and then enter to compressor.It avoids liquid slugging to protect compressor.
Specification
Main Features
· Corrosion resistant epoxy powder paint finish
· Sturdy steel shells for long life,
·Allowable temperature:-40℃～+120℃
·Maximum working pressure:3.0MPa
Optional for R410A and CO2 Refrigerant
·
CE listed-2014/68/EU
|
Part NO.
|
Gas Pipe
(in)
|
Liquid Pipe
(in)
|
Diemensions
|
|
|
Oil receiver(L)
|
Diagram
|
||
|
|
|
|
A
|
B
|
D
|
|
|
||
|
PKR-2404
|
1/2
|
3/8
|
254
|
52
|
102
|
1.5
|
Fig.5
|
||
|
PKR-2405
|
5/8
|
3/8
|
294
|
52
|
102
|
1.8
|
|
||
|
PKR-2406
|
3/4
|
1/2
|
316
|
75
|
140
|
3.8
|
|
||
|
PKR-2407
|
7/8
|
1/2
|
356
|
75
|
140
|
4.3
|
|
||
|
PKR-2411
|
1-1/8
|
5/8
|
450
|
85
|
159
|
7.3
|
|
||
|
PKR-2413
|
1-3/8
|
3/4
|
574
|
85
|
159
|
9.6
|
|
||
|
PKR-2415
|
1-5/8
|
7/8
|
624
|
85
|
159
|
10.4
|
|
||
|
PKR-2417
|
2-1/8
|
7/8
|
629
|
85
|
159
|
10.4
|
|
||
|
PKQ-208N04
|
1-1/8
|
1/2
|
450
|
85
|
159
|
7.4
|
Fig.6
|
||
|
PKQ-208N05
|
1-1/8
|
5/8
|
450
|
85
|
159
|
7.4
|
|
||
|
PKQ-209N05
|
1-3/8
|
5/8
|
574
|
85
|
159
|
9.8
|
|
||
|
PKQ-209N06
|
1-3/8
|
3/4
|
574
|
85
|
159
|
9.8
|
|
||
|
PKQ-210N06
|
1-5/8
|
3/4
|
624
|
85
|
159
|
9.8
|
|
||
|
PKQ-210N07
|
1-5/8
|
7/8
|
624
|
85
|
159
|
9.8
|
|
||
|
PKQ-1517N07
|
2-1/8
|
7/8
|
518
|
120
|
219
|
16
|
|
||
|
PKQ-1517N09
|
2-1/8
|
1-1/8
|
518
|
120
|
219
|
16
|
|
||
|
PKQ-221N09
|
2-1/8
|
1-1/8
|
576
|
120
|
273
|
28.5
|
|
||
Refrigeration system flow diagram
