Quick Details
-
Brand Name:
-
COMFAST
-
Model Number:
-
CF-SF181P
-
Place of Origin:
-
Guangdong, China
-
PoE Standard:
-
Support IEEE802.3af/ at
-
Protocol:
-
Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at
-
PoE Output:
-
DC 48V
-
Warranty:
-
12 month
-
Life Time:
-
10000H
-
Size:
-
220mm*161mm*37mm
-
Weight:
-
0.92KG
-
Power consumption:
-
120W
-
LED Display:
-
Yes
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2Gbps
-
Brand Name:
-
COMFAST
-
Model Number:
-
CF-SF181P
-
Place of Origin:
-
Guangdong, China
-
PoE Standard:
-
Support IEEE802.3af/ at
-
Protocol:
-
Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at
-
PoE Output:
-
DC 48V
-
Warranty:
-
12 month
-
Life Time:
-
10000H
-
Size:
-
220mm*161mm*37mm
-
Weight:
-
0.92KG
-
Power consumption:
-
120W
-
LED Display:
-
Yes

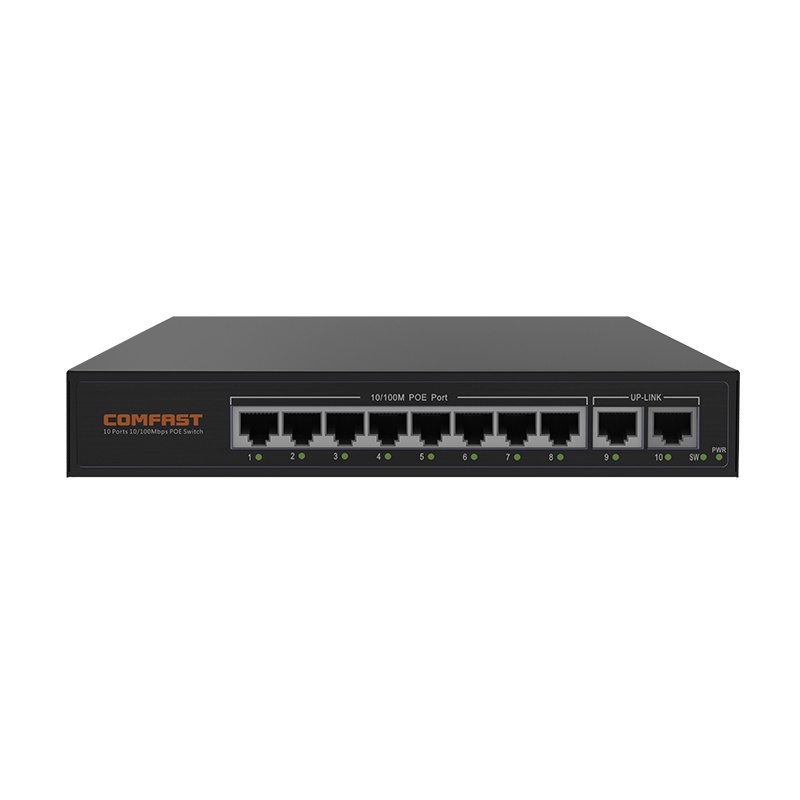

Comfast SF181P industrial passive rj45 network 8*10/100 MB ports poe switch 8 port wireless wifi router switch with 2 uplink 48V
8-port 10/100mbps desktop poe switch. Supports poe power up to 15.4w(IEEE 802.3af) for each poe port, supports poe power up to 30w(IEEE 802.3at) for each poe ports. 1k entry mac address table of the CF-SF181P with auto adaption.
Model Name | 8ports 10/100Mbps industrial PoE switch CF-SF181P |
Ports | 8x 10/100M RJ-45+POE,2x10/100M RJ-45 |
Protocol | Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at |
POE Parameter | POE standard: IEEE802.3af /IEEE802.3at |
max. 15.4 W (IEEE 802.3af) & 30 W (IEEE 802.3at) for each port | |
Compatibility: IEEE 802.3af/at auto adaption | |
POE output: DC 48V | |
POE cable: 1/2+ ; 3/6- | |
Dial up | Extend : 250m ; OFF:100m; VLAN; |
Network Mdeia | 10Base-T: Cat3 or above UTP/STP(≤100m) |
10Base-T: Cat6 or above UTP/STP(≤250m) | |
100Base-TX: Cat5 or above UTP/STP(≤100m) | |
Max Frame Size | Backplane bandwidth: 2Gbps |
Packet transmition rate: 0.1488Mbps per cache port | |
MAC no.: 1K | |
Transmition Mode | Store and forward |
Life Time | 10000H |
Physical Features | Size: 220mm*161mm*37mm |
Weight: 0.92KG | |
Power | Input: AC110-260V |
Output: 52V 2.3A | |
Power Consumption | 120W |
Indicator |
Green light: network SW: 1. Stay: VLAN active, 100m 2. Flicker: VLAN active, 250m 3. Off: VLAN inactive, 100m 4. Flicker: VALN inactive, 250m |
Working Environment |
Working Environment: -20 C~55 C;
Working Temperature: -40 C~70 C; Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~95%RH Non-condensing |
