Quick Details
-
Type:
-
flexible, no joint
-
Application:
-
cranes,monorails,electric hoists
-
Current:
-
50A-140A
-
Max. Voltage:
-
660V
-
Heat resistant:
-
75c
-
Housing:
-
PVC
-
Number of conductors:
-
3poles 4poles 5poles 6poles
-
Warranty:
-
one year
Quick Details
-
Place of Origin:
-
Hubei, China
-
Material:
-
copper
-
Color:
-
orange
-
Type:
-
flexible, no joint
-
Application:
-
cranes,monorails,electric hoists
-
Current:
-
50A-140A
-
Max. Voltage:
-
660V
-
Heat resistant:
-
75c
-
Housing:
-
PVC
-
Number of conductors:
-
3poles 4poles 5poles 6poles
-
Warranty:
-
one year
Product Details

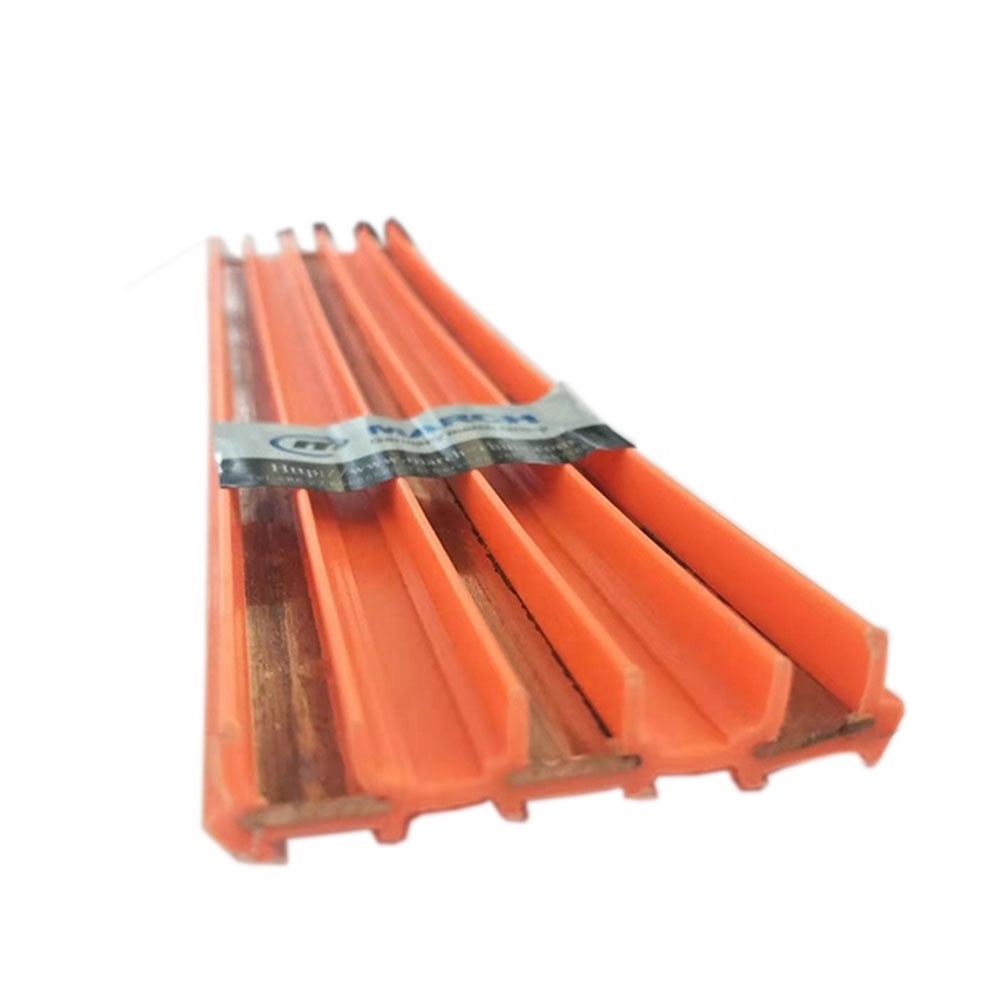

High tro reel seamless conductor bar 10mm2 15mm2 copper flexible busbar
1. The system has the following advantage ,run smoothy,high speed ,low nosie , powered way arbitrariness.
2. Offer 3P,4P (50A,80A ,100A ,120A ,140A )five type ,with the load matching ,selection and utilization economically ,meanwhile 3P,4P can be combined into the 6P and above type.
|
Name
|
Poles
|
Conductor cross section (mm2)
|
Max current (A)
|
Order -NO.
|
|
WJF-4-10/50A
|
4
|
4*10 mm2
|
50A
|
224001
|
|
WJF-4-15/80A
|
4
|
3*15 mm2+1*10 mm2
|
80A
|
224004
|
|
WJF-4-20/100A
|
4
|
3*20 mm2+1*10 mm2
|
100A
|
224005
|
|
WJF-4-25/120A
|
4
|
3*25mm2+1*12.5 mm2
|
120A
|
224006
|
|
WJF-4-35/140A
|
4
|
3*35mm2+1*15 mm2
|
140A
|
224007
|
