Quick Details
-
Brand Name:
-
WINSTON/OEM
-
Theory:
-
photoelectric switch
-
Output:
-
Analog SENSOR, Analog SENSOR
Quick Details
-
Usage:
-
Position Sensor, Position Sensor
-
Model Number:
-
G18
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WINSTON/OEM
-
Theory:
-
photoelectric switch
-
Output:
-
Analog SENSOR, Analog SENSOR

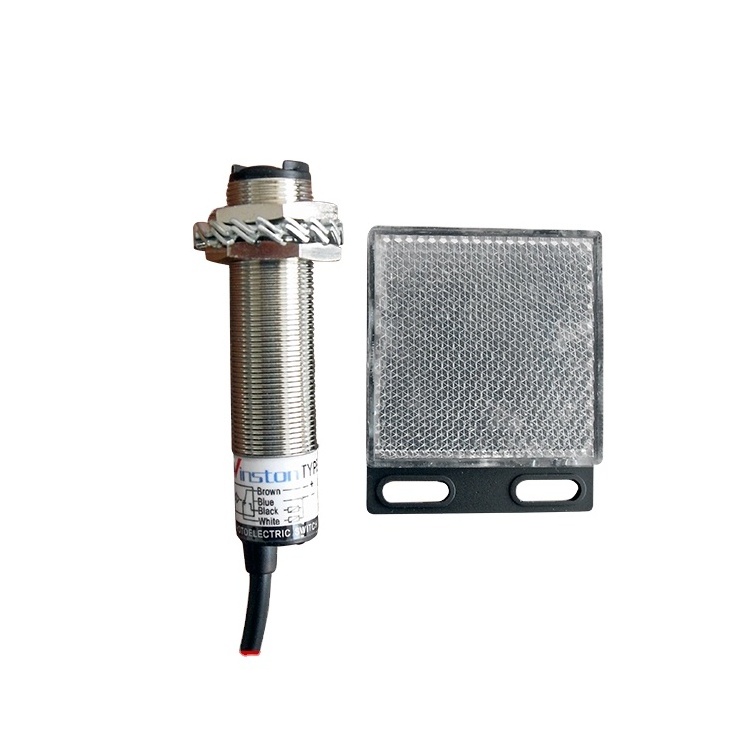

G18 Electric Photocell sensor switch
Model explanation of Photoelectric Sensor
1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
Technical Parameters:
| Model NO. | Detection distance | Working voltage | Output | Detection way | |
| Form | State | ||||
| G18 -3A 10NA | 10cm | DC10-30V | NPN | NO | Diffuse type |
| G18 -3A 10NB | 10cm | DC10-30V | NPN | NC | Diffuse type |
| G18 -3A 10NC | 10cm | DC10-30V | NPN | NO+NC | Diffuse type |
| G18 -3A 10PA | 10cm | DC10-30V | PNP | NO | Diffuse type |
| G18 -3A 10PB | 10cm | DC10-30V | PNP | NO | Diffuse type |
| G18 -3A 10PC | 10cm | DC10-30V | PNP | NO+NC | Diffuse type |
| G18 -2A 10LA | 10cm | AC90-250V | SCR Control lable silicon | NO | Diffuse type |
| G18 -2A 10LB | 10cm | AC90-250V | SCR Control lable silicon | NC | Diffuse type |
| G18-3B2NA | 2m | DC10-30V | NPN | NO | Retroreflective |
| G18-3B2NB | 2m | DC10-30V | NPN | NC | Retroreflective |
| G18-3B2NC | 2m | DC10-30V | NPN | NO+NC | Retroreflective |
| G18-3B2PA | 2m | DC10-30V | PNP | NO | Retroreflective |
| G18-3B2PB | 2m | DC10-30V | PNP | NC | Retroreflective |
| G18-3B2PC | 2m | DC10-30V | PNP | NO+NC | Retroreflective |
| G18-2B2LA | 2m | AC90-250V | SCR Control lable silicon | NO | Retroreflective |
| G18-2B 2LB | 2m | AC90-250V | SCR Control lable silicon | NC | Retroreflective |
| G18 -3C 5NA | 5m | DC10-30V | NPN | NO | Through beam |
| G18 -3C 5NB | 5m | DC10-30V | NPN | NC | Through beam |
| G18 -3C 5NC | 5m | DC10-30V | NPN | NO+NC | Through beam |
| G18 -3C 5PA | 5m | DC10-30V | PNP | NO | Through beam |
| G18 -3C 5PB | 5m | DC10-30V | PNP | NC | Through beam |
| G18 -3C 5PC | 5m | DC10-30V | PNP | NO+NC | Through beam |
| G18 -2C 5LA | 5m | AC90-250V | SCR Control lable silicon | NO | Through beam |
| G18 -2C 5LB | 5m | AC90-250V | SCR Control lable silicon | NC | Through beam |
