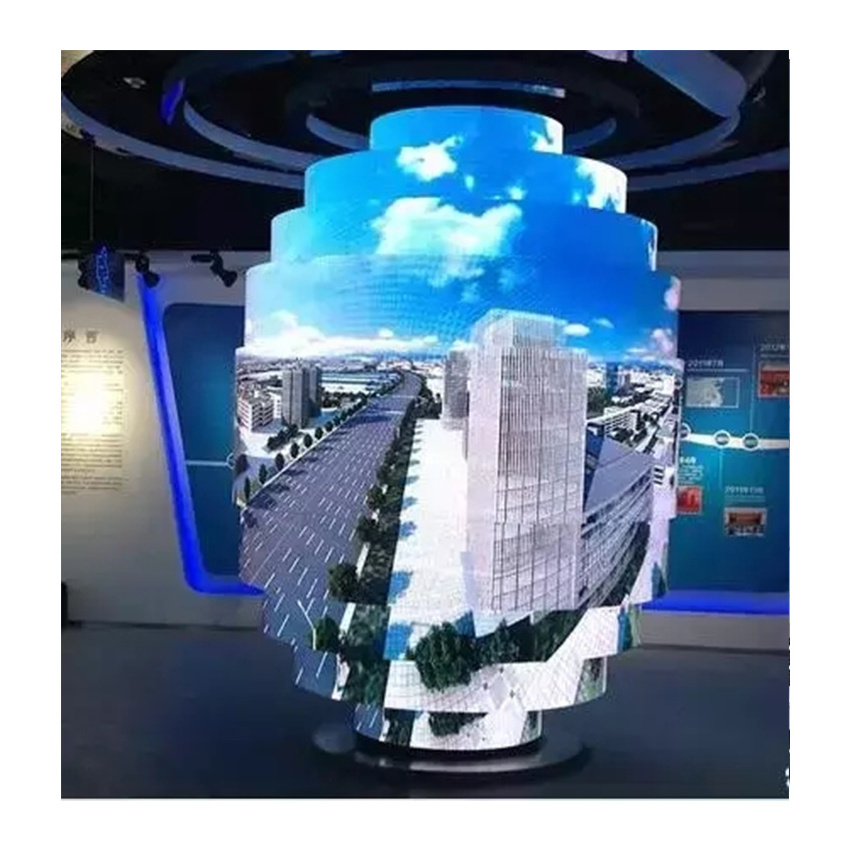

Outdoor indoor Soft Flexible Curved Round cylindrical cylinder Ring Shape Led Display Screen For Cylindrical Column

Outdoor indoor Soft Flexible Curved Round cylindrical cylinder Ring Shape Led Display Screen For Cylindrical Column

FOB Reference Price: Get Latest Price

≥1 Square meters

US $550

≥200 Square meters

US $530

≥500 Square meters

US $520

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Size:: 320*160

Place of Origin:: China

Model Number:: P4

Specification:: custom

Product name:: sphere led display

Brightness:: 1000cd/sqm

Module size:: 320x160mm

Pixels:: 4

Usage:: Indooor

Refresh rate:: 1920-3840Hz

Pixel density:: 62500 Dots/sqm

Scan mode:: 1/16scan

Control system:: lSynchronous control system

Life span:: 100000hours

Quick Details

Application:: Indoor, Outdoor, indoor

Brand Name:: TOOSEN

Color:: 1R1G1B

Panel Size:: 320*160

Place of Origin:: China

Model Number:: P4

Specification:: custom

Product name:: sphere led display

Brightness:: 1000cd/sqm

Module size:: 320x160mm

Pixels:: 4

Usage:: Indooor

Refresh rate:: 1920-3840Hz

Pixel density:: 62500 Dots/sqm

Scan mode:: 1/16scan

Control system:: lSynchronous control system

Life span:: 100000hours

Factory Price LED Sphere Display Screen

P1.25/P1.53 / P1.86 / P2 / P2.5 / P3 / P4

3D Spherical LED Flexible Soft Module LED Video Ball Screen

1. Customized: Can be customized required as any sizes and any pixel pitches. 2. Application: Indoor/Outdoor. 3. Installation: Support hanging installation, stand on ground or mobile using. 4. Viewing angle: Perfect viewing angle with 360 degree.

Product Case

Product Description

Flexible material and creative shape:

Soft materials ,can realize the radian of S-shape,circle ,arc- shaped , both Horizontal and vertical can be rolled up,meet the requirements of creative stage Optional brightness and high refresh rate: Optional Brightnes 1000nit or 4000nit , to meet the requirements of indoor and outdoor high brightness display effect Up to 40% transparent rate ,to ensure the light-through ,smoke-through ,sound-through request High refresh rate ≥3840Hz,very stable image.

Product Paramenters

Usage	indoor	indoor	indoor	indoor
Pixel Pitch	1.8mm	2.5mm	3mm	4mm
LED Type	SMD1515	SMD2020	SMD2020	SMD2020
Physical Density	284000 dot/m²	160000 dot/m²	111111 dot/m²	62500 dot/m²
Scanning Mode	1/43	1/32	1/32	1/16
Spherical diameter	0.8m/1m/1.2m/1.5m/1.8m/2m/2.5m/3m/4m/5m/6m(Arbitrary diameter)
Panel Material	iron
Panel Weight	30kg/㎡
Panel Flatness	≤0.10 mm
Brightness	≥800 cd/㎡
Viewing Angle	≥140° (H) / 140° (V)
Refresh Rate	1920-3840Hz
Input Voltage AC	110~220V
Max. Power Consumption	≤700 w/㎡
Ave. Power Consumption	≤300 w/㎡
Working Temperature	-10℃～+40℃
Working Humidity	10%～90%RH
Lifespan	≥100,000 hrs

PRODUCT PROCESS

FAQ:

Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer ，which has specialized in led display industry for more than 7years.
Q1:How does your factory do regarding quality control?
A1.The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail
lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every
customer.
Q1:What is your MOQ?
A1.Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q1.How about your Warranty term?
A1. Calculated from the goods to the customer, the warranty period is 2 years, don’t worry, there is a problem with the module,
you can send it back to Shenzhen for repair.
Q1:When will you make the delivery?
A1.We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the
size and quantities of your order.
Q1. your nearest shipping port
A1.Shenzhen
