Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENSTER
-
Model Number:
-
NST-IPH5112
-
Technology:
-
NetWork
-
Resolution:
-
1920*1080
-
Lens:
-
5-50mm Manual Zoom Lens
-
Product name:
-
IR long distance 100M IP camera
-
Keyword:
-
IR long distance 100M IP camera
-
Feature:
-
long distance IP camera
-
Color:
-
Grey
-
IR Distance:
-
100m
-
Certificate:
-
CE FCC RoHs
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof
-
Function:
-
Alarm I/O, RESET, NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ENSTER
-
Model Number:
-
NST-IPH5112
-
Technology:
-
NetWork
-
Resolution:
-
1920*1080
-
Lens:
-
5-50mm Manual Zoom Lens
-
Product name:
-
IR long distance 100M IP camera
-
Keyword:
-
IR long distance 100M IP camera
-
Feature:
-
long distance IP camera
-
Color:
-
Grey
-
IR Distance:
-
100m
-
Certificate:
-
CE FCC RoHs

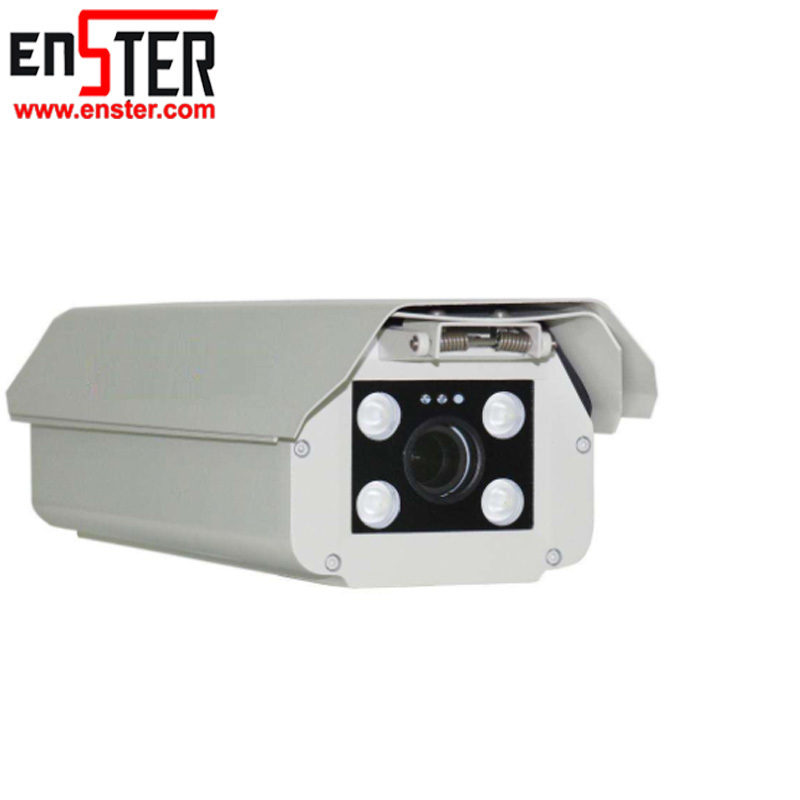

Housing Bullet 5-50mm Vari-Focal Lens IR Long Distance 100M IP Camera
1) Bullet IP Camera
2) Lens: 5-50mm Manual Zoom Lens
3) IR Led:4pcs Array IR Led IR Range: 100m
4) Support more than 20 languages
& Mobile Phone View&Free CMS
& DDNS&Motion Detection
5) Power: DC12V. POE optional
Specification
Model No. |
NST-IPH5114 (5-50MM) |
NST-IPH5112(5-50MM) |
NST-IPH51113 (5-50MM) |
|
Camera Type |
Bullet IP Camera |
|||
System |
Embedded RTOS design |
|||
Camera |
Effective Pixels |
4.0 Mega Pixels |
2.0 Mega pixels |
1.3 Mega Pixels |
Main stream:2592*1520;2048*1536; |
Main stream:1920*1080;1280*720 |
Main stream:1280*960; |
||
Sub stream:704*576 |
Sub stream:704*576 |
Sub stream:704*576 |
||
Frames Rates |
PAL:20fps(2592*1520)/
25fps(2048*1536)
|
PAL:25fps(1920*1080)/(1280*720) |
PAL:25fps( 1280 *960 ) |
|
NTSC:20fps(2592*1520)/
|
NTSC:30fps(1920*1080)/(1280*720) |
NTSC:30fps( 1280 *960 ) |
||
Image Sensor |
1/3" OV4689 CMOS Sensor |
1/2.8" SONY IMX322 CMOS Sensor |
1/3" APTINA 0130 CMOS Sensor |
|
4 Megapixel resolution
|
2.13 megapixel resolution (1945H*1097V) |
1.3 megapixel resolution (1305H*977V) |
||
DSP |
Dual core 32-bit DSP |
Dual core 32-bit DSP |
Dual core 32-bit DSP |
|
(HI3516D) |
(Hi3516C) |
(Hi3518C) |
||
Min. Illumination |
Color 0.001LuxF1.2 |
Color 0.01LuxF1.2 |
Color 0.01LuxF1.2 |
|
B/W 0.0001 LuxF1.2 |
B/W 0.001 LuxF1.2 |
B/W 0.01 LuxF1.2 |
||
Adjust Parameters |
DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. |
|||
Video |
Compression |
H.265 Main profile |
H.264 Main profile |
H.264 Main profile |
Stream |
support dual stream,AVI format |
support dual stream,AVI format |
support dual stream,AVI format |
|
Bit Rate |
support 0.1M ~8Mpbs bit rate adjustable |
support 0.1M ~8Mpbs bit rate adjustable |
support 0.1M ~8Mpbs bit rate adjustable |
|
Frame Rates |
support 1~30fps adjust |
support 1~30fps adjust |
support 1~30fps adjust |
|
Audio |
Input and output |
1ch input( micphone),1ch output( Speaker&micphone) Optional |
||
Compression |
G.711 compression,support two-way audio intercom,support audio and video synchronized output |
|||
Alarm |
Types |
Motion Detection, Video Blind , Video Loss |
||
Network |
WEB Browser |
Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) |
||
Smart Phone |
mobile remote Monitoring (iPhone,Android,....) |
|||
CMS Software |
Uniform CMS Software(multiple devices management system) |
|||
Cloud P2P |
www.enster.com.MYEYE platform and other program,Offer SDK |
|||
Network |
1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP |
|||
ONVIF |
Support (ONVIF 2.4) |
|||
POE |
Support(optional) |
|||
WIFI |
N/A |
|||
General |
Language |
20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish |
||
IR Cut Filter |
Set of double light switch IR-CUT filter |
|||
Lens Mount |
5-50mm Manual Zoom Vari-Focal Lens |
|||
Infrared Luminary |
4pcs Array IR LED |
|||
Infrared Wavelength |
850nm |
|||
Illuminate Distance |
100m |
|||
Waterproof Criterion |
IP 66 |
|||
I/O Connector |
1*DC Connector ,1* RJ45(10/100M Network) |
|||
Supplied Voltage |
DC12V/PoE(802.3af/820.3at) |
|||
Power Consumption |
IR On: 600mA max., IR Off: Less than 200mA |
|||
Working Environment |
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) |
|||
Weight |
1.5kg |
