1. Hydraulic pressure adopted to assure the bricks produced have better quality, larger density and higher strength.
2. Standard hydraulic pressure of this machine is 15MPa. Also, we can increase the pressure by increasing cylinder bore if needed.
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fulang Machine
-
Voltage:
-
No Need
-
Dimension(L*W*H):
-
1480*1250*2000mm
-
Weight (KG):
-
1600 kg
-
Product Name:
-
Manual Block Making Machine
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Molding cycle:
-
30s
-
Oil Consumption:
-
2L/H
-
Pallet size:
-
840*450*25mm
-
Color:
-
Customer's Demand
-
Advantage:
-
High Efficiency
-
After-sales Service Provided:
-
Video Technical Support
-
Worker:
-
1-2 People
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
3000 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fulang Machine
-
Voltage:
-
No Need
-
Dimension(L*W*H):
-
1480*1250*2000mm
-
Weight (KG):
-
1600 kg
-
Product Name:
-
Manual Block Making Machine
-
Raw material:
-
Fly Ash Cement Sand Concrete
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Molding cycle:
-
30s
-
Oil Consumption:
-
2L/H
-
Pallet size:
-
840*450*25mm
-
Color:
-
Customer's Demand
-
Advantage:
-
High Efficiency
-
After-sales Service Provided:
-
Video Technical Support
-
Worker:
-
1-2 People
Product Description

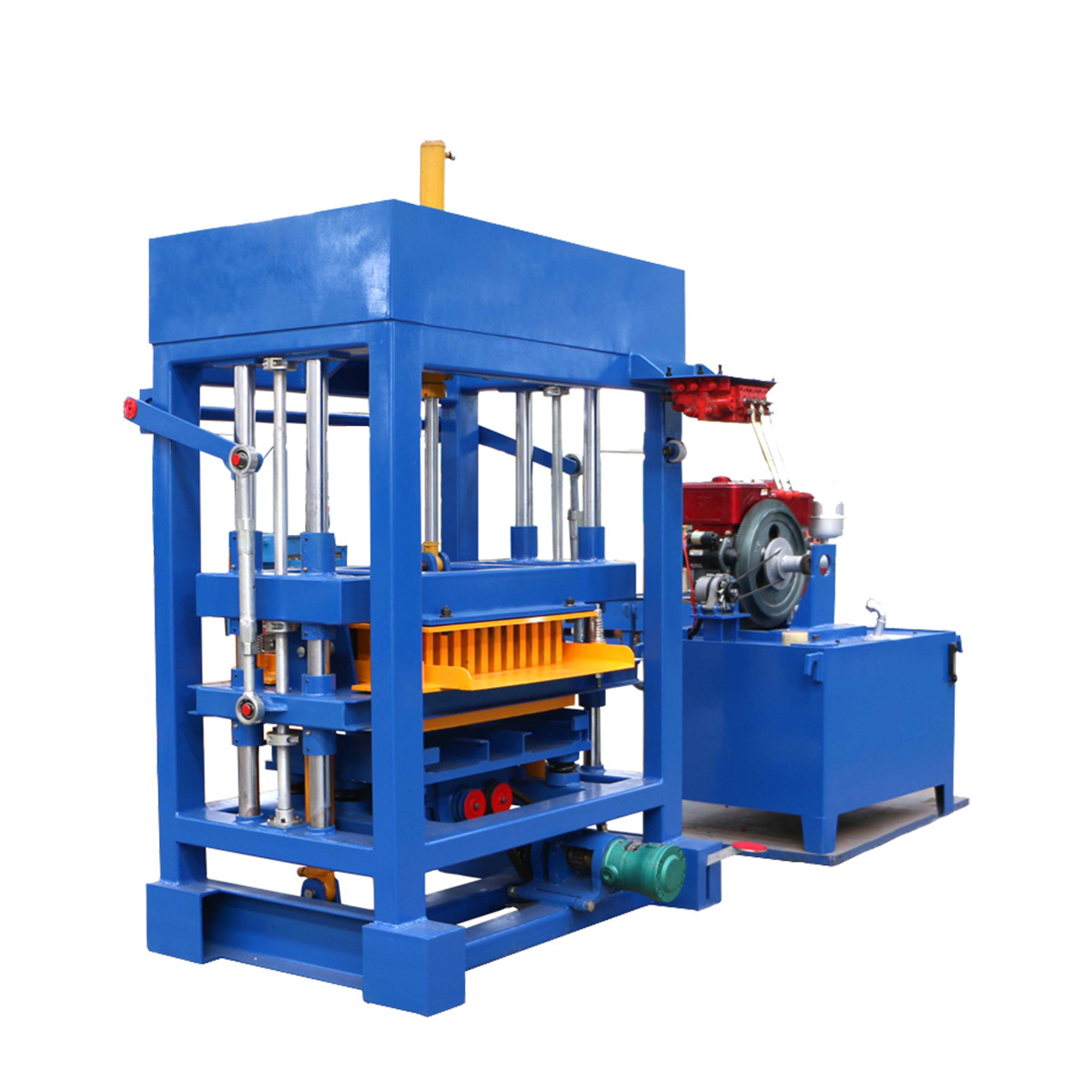

QTF4-28
Diesel Engine
Manual C
oncrete
Brick Making Machine
|
Main Technical Parameters
|
|
|
|
|||
|
Dimension of Host Machine
|
1480*1250*2000mm
|
Rated Pressure
|
15MPa
|
|||
|
Dimension of Diesel Engine Hydraulic Station
|
1100*1140*1350mm
|
Total Machine Power
|
13.34KW
|
|||
|
Mould Period
|
30s
|
Oil Consumption
|
2L/H
|
|||
|
Pallet Size
|
840*450*25mm
|
Diesel Engine Starting Mode
|
Electric Start
|
|||
|
Theroetical Production Capacity
|
|
|
|
|||
|
Size(L*W*H)
|
Pcs/Mould
|
Pcs/Hr
|
Pcs/8 Hr
|
|||
|
400*150*200mm
|
5
|
375
|
3000
|
|||
|
400*200*200mm
|
4
|
300
|
2400
|
|||
|
200*100*60mm
|
16
|
736
|
5888
|
|||
|
200*163*60mm
|
10
|
460
|
3680
|
|||
Machine Details
Adopt precise line cutting technology and carburizing treatment technology prolong the mould life and increase the precision of the brick moulds.
The power of diesel is strong, so the bricks produced are of high quality, especially suiable for the electricity shortage area or erratic area.
Customized Mould
The block mold is customizable and replaceable to produce different kinds of blocks according to your requirement.
. The following bricks are some common brick types. Also we can customize brick moulds for you on base of your specific requirements.
Our Company
Linyi Fulang Machinery Co., Ltd. is a Chinese manufacturer of dedicated machinery for construction blocks and panels.Our company offers complete production lines for premium building components such as the autoclaved sand -lime brick, autoclaved aerated concrete brick,and autoclaved aerated concern/autoclaved lightweight concrete panel.Additional,we provide various types of pressure vessels and block-making machines.By choosing Fulang,customers can enjoy professional benefits with our dedicated services for design,install,layout planning,technology transfer,and production guidance.
With 19 years development ,our products have been sold to more than 80 countries.Till now,about 1200 customers have visited ourfactory.Also we have engineers stay abroad to help you install the machines and training your workers at your side.
Exhibition
Installation Abroad
Packaging and Shipping
FAQ
1. Q: What kinds of the brick making machines can be choosed for customers?
A: We have full-automatic, semi-automatic, manual, mobile, egg laying, paver machine for your choice.
2. Q: What kind of payment terms do we accept?
A:T/T, L/C, Paypal, Western Union are commom for us. Other ways are ok by negotiation.
3. Q:How about your Production time?
A:Normally 20-25 days after your deposit.
4. Q:Can I vivst your factory?
A:Yes. Many domestic and international costomers visit our factory every year.
5. Q:How long is the warranty of your equipment? Do you supply spare parts?
A:Our warranty period is one year generally. We can supply spare parts.
6. Q:Do you provide after-sale service?
A:Yes, We have a professional after-sale service team to promptly and thoroughly solve your problems.
A: We have full-automatic, semi-automatic, manual, mobile, egg laying, paver machine for your choice.
2. Q: What kind of payment terms do we accept?
A:T/T, L/C, Paypal, Western Union are commom for us. Other ways are ok by negotiation.
3. Q:How about your Production time?
A:Normally 20-25 days after your deposit.
4. Q:Can I vivst your factory?
A:Yes. Many domestic and international costomers visit our factory every year.
5. Q:How long is the warranty of your equipment? Do you supply spare parts?
A:Our warranty period is one year generally. We can supply spare parts.
6. Q:Do you provide after-sale service?
A:Yes, We have a professional after-sale service team to promptly and thoroughly solve your problems.
