Quick Details
-
Brand Name:
-
KEYU
-
Color:
-
Creamy-white
-
Body material:
-
ABS strengthen
-
Float Material:
-
PE
-
Core Material:
-
SR
-
Install Size:
-
274.80mm(Maximum)
-
Working Pressure:
-
0.01- 1.2Mpa(0.1Mpa=1Bar=14.5Psi)
-
Working Temperature:
-
0-70°C
-
Port Type:
-
Male Thread
-
Certifications:
-
CTI, SGS, BV
-
Used for:
-
Small tanks ,ice maker,Water tank equipment
Quick Details
-
Port Size:
-
1/2,3/4
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
EX
-
Brand Name:
-
KEYU
-
Color:
-
Creamy-white
-
Body material:
-
ABS strengthen
-
Float Material:
-
PE
-
Core Material:
-
SR
-
Install Size:
-
274.80mm(Maximum)
-
Working Pressure:
-
0.01- 1.2Mpa(0.1Mpa=1Bar=14.5Psi)
-
Working Temperature:
-
0-70°C
-
Port Type:
-
Male Thread
-
Certifications:
-
CTI, SGS, BV
-
Used for:
-
Small tanks ,ice maker,Water tank equipment

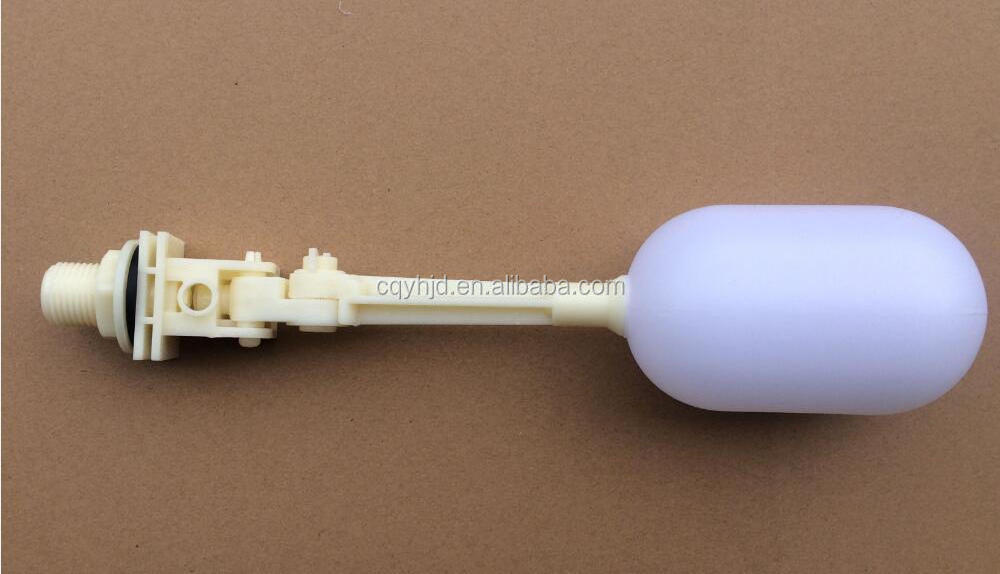

More pictures about Plastic Float Valve
- Easy Installation and Maintenance
- Accurate Water Level Control
- Good Performance:
- Quiet
- Stability
- Quick stop
- Long lifetime
- Non-polluting
- Less abrasion
- Corrosion-resistant
- Quick water flow rate
Other float valve you may be like
| Mode | 1/2" plastic float valve DN15EX |
| Install Size | 257.40 mm(Maximum) |
| Thread | 1/2" Inch |
| Body Material | ABS( Acrylonitrile Butadiene Styrene plastic ) |
| Float Ball Material | PE( Polyethylene) |
| Seals Material | SR(Silicon Rubber) |
| Working Pressure | 0.01- 1.2Mpa(0.1Mpa=1Bar=14.5Psi) |
| Working Temperature | 0-70°C |
The actual application depends on the specific circumstances.
DN15EX plastic float valve can be installed in
the water tank, humidifier, evaporative cooler,
incubator,
gardening, livestock, etc.
Loose the screw on the arm to adjust the float position and achieve the horizontal and vertical installation. Each of install method will not affect the performance.
Tips
1.If the body and pipe joint leak water, please check water tape is wrapped and the pipe joint is tighted.
2.The Strength should suitable when tight and fix the float valve, too much excessive strength will damage the valve.
3.Please check the water inlet filter regularly and remove the garbage out in time.
4.Please do not use the cleanser which will cause damage when clean the float valve.
