Quick Details
-
Accuracy:
-
1.5%
-
Control output:
-
AC85~264V
-
Outline Dimension:
-
48*48*100mm
-
Logical voltage:
-
DC 0/5V
-
Power output:
-
DC 24V
-
Start pulse over zero:
-
optical couple control silicon output
-
Alarm type:
-
upper limit alarm, lower limit alarm
-
Transmitter output:
-
0-10mA,4-20mA,0-5V,1-5V
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Auto adjusting function digital freezer temperature controller
-
Theory:
-
temperature controller
-
Accuracy:
-
1.5%
-
Control output:
-
AC85~264V
-
Outline Dimension:
-
48*48*100mm
-
Logical voltage:
-
DC 0/5V
-
Power output:
-
DC 24V
-
Start pulse over zero:
-
optical couple control silicon output
-
Alarm type:
-
upper limit alarm, lower limit alarm
-
Transmitter output:
-
0-10mA,4-20mA,0-5V,1-5V
Product Description

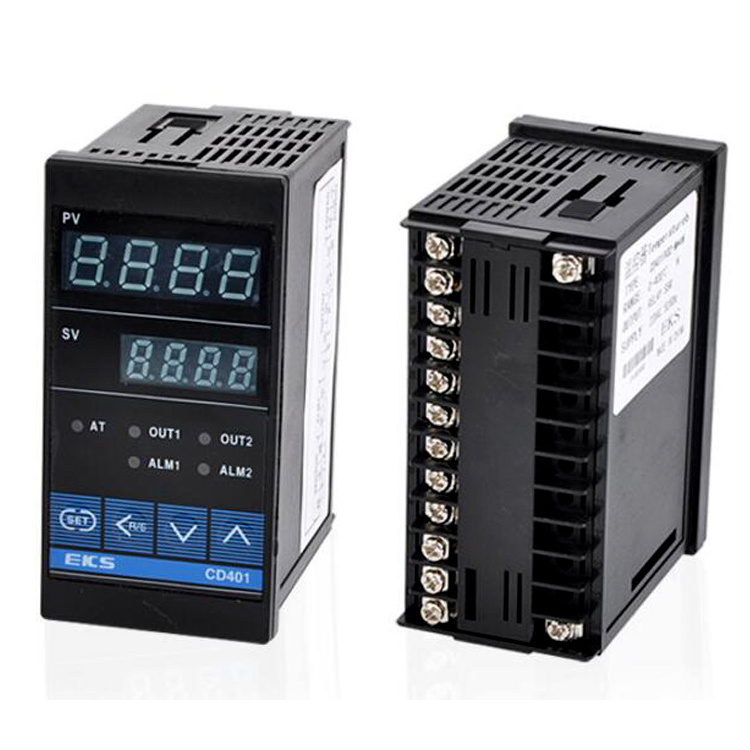

1.Pictures of temperature controller
2. Technical Data
| 1.Outline dimension | See the outline dimension picture | |
| 2.Control Mode | F:PID operation and auto calculating (reverse operation) | D:PID operation and auto calculating(Forward operation) |
| W:eating/cooling PID operation and auto calculating(cooling water)*1 | A:heating/cooling PID operation and auto calculating(cooling water)*1 | |
| 3.Input mode | Refer to Input Range Table | |
| 4.Range Code | Refer to Input Range Table | |
|
5.First control
output(OUT1) (Heating side) |
M: Relay contact output
V: Voltage impulse output T: Thyratron output |
8: Current output(IC4-20mA)
G: Thyratron driving & triggering output |
|
6.Second control
output( OUT2) (Cooling side)*2 |
No mark: when the control mode is F or D
M: Relay contact output V: Voltage impulse output |
T: Thyratron output
8: Current output(IC 4-20mA) |
|
7.First alarm(ALM1)
8.Second alarm (ALM2)*2 |
N: no alarm
A: Upper-limit bias alarm B: Lower-limit bias alarm C: Upper/lower limit bias alarm D: alarm in area E: Standby upper-limit bias alarm attached F: Standby lower-limit bias alarm attached G: Standby upper/lower limit bias alarm H: Upper-limit input value alarm |
J: lower-limit input alarm
K: Standby upper-limit input alarm attached L: Standby lower-limit input alarm attached P: Heater breakage alarm(CTL-6)*3 S: Heater breakage alarm(CTL-12)*3 R: Control line breakage alarm *4 V: Upper-limit set value alarm W: Lower-limit set value alarm |
| 9.Communication*5 | N:No communication | 5:RS-485(two-wire system) |
| 10.Water-proof/dust-proof | N:no water-proof/dust-proof | 1:with water-proof/dust-proof |
