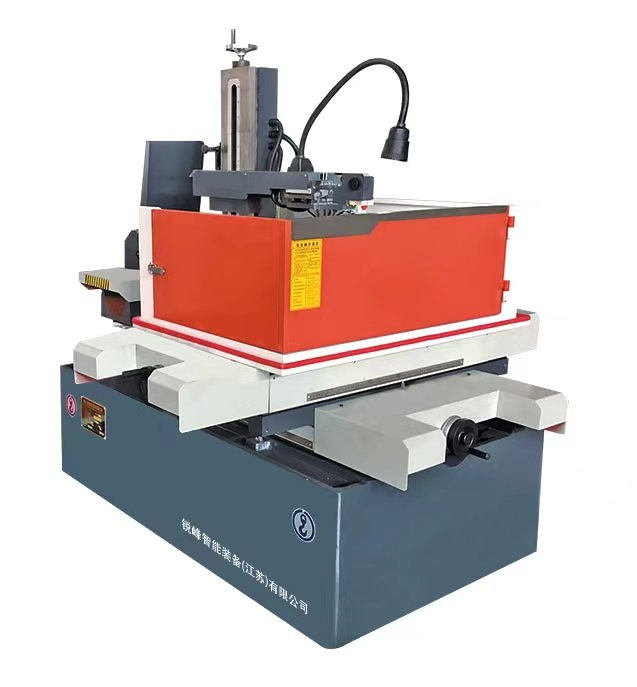

DK7755J New CNC EDM Desktop High Precision Wire EDM Machine

DK7755J New CNC EDM Desktop High Precision Wire EDM Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $5600

≥3 Sets

US $5550

≥10 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V/50Hz

Dimension(L*W*H):: 2070*1770*1750

Weight (KG):: 3100

Power (kW):: 1

Name:: Wire Edm Machine China

Product name:: Hiceth DK77

Type:: DK7732/DK7735/DK7740/DK7745/DK7750

Quick Details

Place of Origin:: Jiangsu, China

Year:: 2023

Brand Name:: ruifeng

Voltage:: 380V/50Hz

Dimension(L*W*H):: 2070*1770*1750

Weight (KG):: 3100

Power (kW):: 1

Name:: Wire Edm Machine China

Product name:: Hiceth DK77

Type:: DK7732/DK7735/DK7740/DK7745/DK7750

Products Description

CNC EDM wire cutting machine

The DK series has the same operating technology and cutting efficiency, but the size of the stroke is different. It belongs to the fast wire series and has high cutting efficiency.Next is the detailed picture

Details Images

Taiwan linear guide

Wire barrel assembly adopts preciselinear guides from Taiwan,which caneffectively prevent the loosening ofone-sided wire and prevent the wirefrom breaking

V-shaped double-sidedguide wheelMetal

integral molding, waterproof andwear-resistant, easy to thread

Ball screw

the smoothest and most stable technology, to ensure stable cutting operation

Stardard cutting taper: ±6°

Optional:±15°, ± 30°, ± 45°

Tips: ± 15°optional for DK7735 or larger model ± 30°,optional for DK7745 or larger model ± 45°,optional for DK7750 or larger model

	DK7755J	DK7763	DK7763J	DK7780	DK7780J	DK77100J	DK77120J
Table size(mm)	650*1150	750*1150	750*1350	990*1580	990*1580	1010*1600	1365*2015
Workbench stroke(mm)	550*800	630*800	630*1000	800*1000	800*1200	1000*1400	1200*1600
Wire frame span(mm)	800	800	800	800	800	800	800
Processing taper(°/mm）	6-60/80	6-60/80	6-60/80	6-60/80	6-60/80	6-60/80	6-60/80
Maximum cutting speed（mm ² /min）	≥90	≥90	≥90	≥90	≥90	≥90	≥90
Optimal processing surface roughness（μm）	≤2.5	≤2.5	≤2.5	≤2.5	≤2.5	≤2.5	≤2.5
Electrode wire diameter（mm）	0.10-0.20	0.10-0.20	0.10-0.20	0.10-0.20	0.10-0.20	0.10-0.20	0.10-0.20
Electrode wire fixed speed（m/s）	11.5	11.5	11.5	11.5	11.5	11.5	11.5
Table movement pulse equivalent（mm）	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Power supply	50Hz.380V	50Hz.380V	50Hz.380V	50Hz.380V	50Hz.380V	50Hz.380V	50Hz.380V
Machine tool power consumption(KVA)	＜1.0	＜1.0	＜1.0	＜1.0	＜1.0	＜1.0	＜1.0
Maximum workpiece weight(KG)	850	1000	1000	1500	1500	1500	1800
Host weight(KG)	3100	3500	3500	5000	5500	6500	8000
