- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/ 3PH/ 50HZ
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUESKY
-
Model Number:
-
BSH-SP9100B
-
Warranty:
-
2 years, One year. Service for ever
-
Baking method:
-
Riello diesel burner
-
Baking temperature:
-
60~80℃
-
Air Velocity:
-
0.25m/s
-
Environmental certificate:
-
CE approved
-
Fans kind:
-
The centrifugal fans CE
-
Packing detail:
-
20ft container, FCL
-
Colour:
-
Blue,red, gray and others
-
Special design:
-
Can do all special design according your requirement
-
Lighting System:
-
LED
Quick Details
-
Power:
-
10.5kw
-
External Size:
-
7000*5299*3600 mm
-
Internal Size:
-
6900*3900*2750 mm
-
Voltage:
-
380V/ 3PH/ 50HZ
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUESKY
-
Model Number:
-
BSH-SP9100B
-
Warranty:
-
2 years, One year. Service for ever
-
Baking method:
-
Riello diesel burner
-
Baking temperature:
-
60~80℃
-
Air Velocity:
-
0.25m/s
-
Environmental certificate:
-
CE approved
-
Fans kind:
-
The centrifugal fans CE
-
Packing detail:
-
20ft container, FCL
-
Colour:
-
Blue,red, gray and others
-
Special design:
-
Can do all special design according your requirement
-
Lighting System:
-
LED

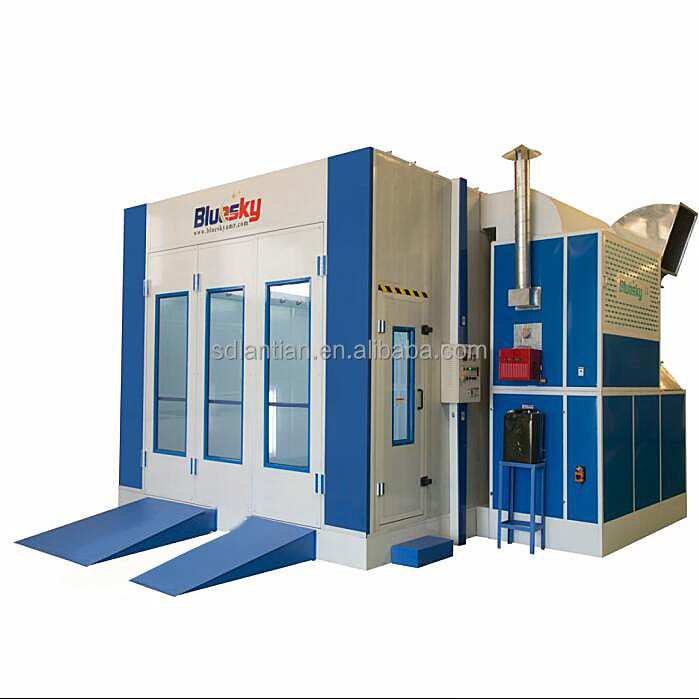

BSH-SP9100B auto paint prep station/used car spray booth for sale/spray booth
|
Dimensions
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
||
|
Outer Size
|
7,000
|
5,200
|
3,600
|
||
|
Internal Size
|
6,900
|
3,900
|
2,750
|
||
|
Entrance Door
|
Adopt with handle and lock
|
3,000
|
2,700
|
||
|
Operator's Door
|
Adopt with handle and Anti-Explosion
|
800
|
2,000
|
||
|
Features
|
Total power 10.5kw; 380V/3ph/50hz; Noise<80db
|
|
|
||
|
I. Wallboard
|
Adopt high quality fireproof insulation EPS panel, thickness: 50mm (Rock wall optional)
|
|
|
||
|
II. Foundation System
|
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating. Galvanized and beautiful, durable and better force bearing.
|
|
|
||
|
III. Heating System
|
Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional);
One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ; 4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃; One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts. |
|
|
||
|
IV. Filtration System
|
Pre-filters Can Capture Granules Larger than 10μm;
Ceiling filter can Capture Granules Bigger than 4μm. Floor filter multilayer glass fiber, air cleanliness in room can reach 98% |
|
|
||
|
V. Light System
|
Ceiling light, 8 group×4pcs = 32pcs×36w;
Bottom light, 8 group×4pcs = 32pcs×36w; With light fixture, anti-explosion design. |
|
|
||
|
VI. Ventilation System
|
Air -inlet fan 2 sets× 4kw, Centrifugal; Air -outlet fan 1 set 4 kw, Centrifugal; Air flow speed in cabin 0.30m/s.
One set of Painting and baking exchange system One set of Cabinet for the fans and three pcs air ducts |
|
|
||
|
VII. Control Panel
|
One unit, including spray switch, baking switch, emergency stop, etc.
(Micro-Computer Programme controlling optional) |
|
|
||
|
VIII. Other Include
|
All sets of hardware,fasteners and sealants
|
|
|
||
Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltd is professional auto maintenance equipment manufacture since 2000 with brand "BLUESKY", in Chinese Lantian means Bluesky.
Our factory covers an area of more than 2,500 squares metters and with our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions.
For many years our copany have been awarded as"Enterprise with high reputation" "Enterpris with high credit in quality" and "China national grade AAA enterprise" ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.
Q1. Are you trading company or manufacturer?
A:We are powder coating line / spray booth / frame machine (many kinds of auto body repair machines) manufacturer from Shandong province and we have trade team.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4.How about your delivery time for one spray booth?
A:Usually one standard spray booth need 7 workdays after receiving deposit.
Q5.How many color do you have?
A:We have blue+gray; Red+gray and pure gray three colors.
Q6.If cusotmer have some special requirement, can you change your standard spray booth?
A:Of course we can, if our standard model can't meet your requirement, we can design it for you according to your need..
