- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Brand Name:
-
howo, HOWO
-
Model:
-
customizable, ZZ1047D3414C145
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
6000*2498*3000mm
-
Box Dimensions (L x W x H) (mm):
-
4100mm*2030mm*1800mm
-
Temperature Range:
-
-18° to 18°
-
Gross Vehicle Weight::
-
16000
-
Engine:
-
YN4102
-
Wheelbase:
-
3360
-
Max speed(km/h):
-
95
-
Approaching angle/Departure angle(°):
-
16/12
-
Tire:
-
8.00R16
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Gross Vehicle Weight:
-
5-10T
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Brand Name:
-
howo, HOWO
-
Model:
-
customizable, ZZ1047D3414C145
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
6000*2498*3000mm
-
Box Dimensions (L x W x H) (mm):
-
4100mm*2030mm*1800mm
-
Temperature Range:
-
-18° to 18°
-
Gross Vehicle Weight::
-
16000
-
Engine:
-
YN4102
-
Wheelbase:
-
3360
-
Max speed(km/h):
-
95
-
Approaching angle/Departure angle(°):
-
16/12
-
Tire:
-
8.00R16
Product Description

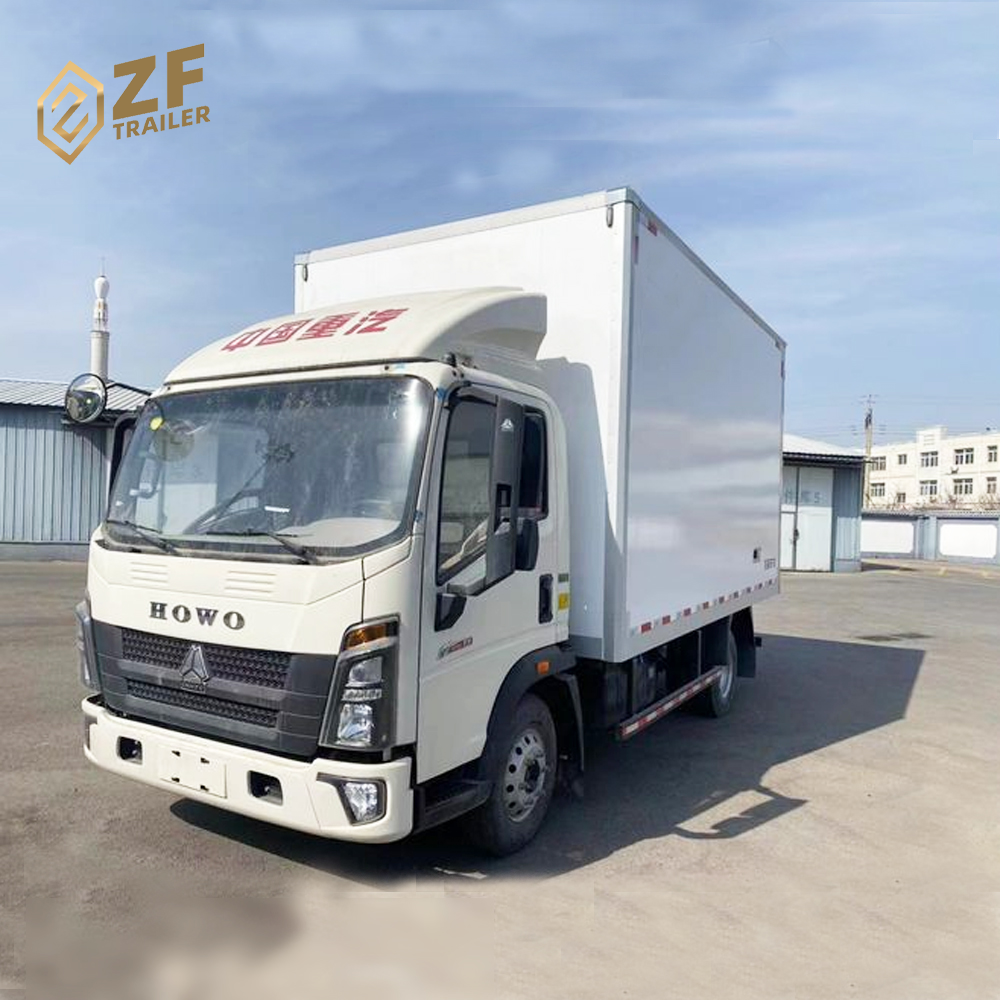

custom size mini refrigerated van food transportation truck freezer box van trucks
Refrigerated truck jacket configuration: the middle insulation layer for XPS extruded polymer board long-term heat insulation. Side door: easy for loading and unloading of goods (single opening, double opening, independent two opening). Rainproof design and labyrinth seal are selected for the door. The floor should be aluminum pattern plate, and the door should be labyrinth rubber seal.
Details Images
Functions and characteristics of Truk Haowo 4.2m refrigerated truck: Advantages of body forming: high insulation coefficient, strong impact resistance, no leakage, light weight, good corrosion resistance and aging resistance to atmosphere, water and acid, alkali, salt and other media. It is an advanced polyurethane plate bonding structure, which has certain mechanical strength and can withstand the vibration of the whole vehicle under bad road conditions. Non-toxic and tasteless, low permeability. When burning thermal insulation materials, toxic and harmful gases shall not be decomposed. The surface materials of the car plate include FRP, stainless steel, aluminum alloy, color steel plate and other materials. Body thickness 8CM. Aluminum alloy bodice, no water seepage, good impact resistance, good corrosion resistance and aging resistance to air, water, acid, alkali, salt and other media
Specification
|
Truck Brand
|
|
|
|
SINOTRUK-HOWO Light Truck
|
|||
|
Driving wheel
|
|
|
|
4x2
|
|||
|
Driving type
|
|
|
|
Left Hand Driving
|
|||
|
Chassis Model
|
|
|
|
ZZ1047D3615C145
|
|||
|
Dimension(Lx W x H)(unloaded)(mm)
|
|
|
|
6200*2200*3150
|
|||
|
body dimension (L x W x H)mm
|
|
|
|
4100*2150*2150
|
|||
|
Approaching angle/Departure angle(°)
|
|
|
|
20/18
|
|||
|
Overhang(front/rear) (mm)
|
|
|
|
1160/1475
|
|||
|
Wheel base (mm)
|
|
|
3500
|
|
|||
|
Leaf spring
|
|
|
11/9+7H
|
|
|||
|
Max speed(km/h)
|
|
|
90
|
|
|||
|
Curb weight(kg)
|
|
|
1500
|
|
|||
|
Loading Weight(kg)
|
|
|
5000
|
|
|||
|
Fuel tanker capacity (L)
|
|
|
Standard
|
|
|||
|
Transmission
|
|
Model
|
WLY6T100, 6 forwards and 1 reverse
|
|
|||
|
Front axle
|
|
2.4
|
|
|
|||
|
Rear axle
|
|
4.2
|
|
|
|||
|
Color
|
|
Optional
|
|
|
|||
|
Tyre
|
|
7.50R16 Steel , 6+1 Spare
|
|
|
|||
|
Cab
|
|
2080 Cabin with AC.
|
|
|
|||
|
Refrigerator unit
|
|
Thickness: Bottom: 105mm
Side and rear door: 85mm Protector Material: Q235 |
|
|
|||
|
|
|
Brand: Thermo King(American)
Type: Non-independent |
|
|
|||
|
|
|
Temperature: -18 degree-0 degree
|
|
|
|||
|
|
|
One pair door on the back side
Option: One door on the side will be add |
|
|
|||
|
|
|
More seals on the cryogenic insulation chamber effectively increase air-tightness
|
|
|
|||
|
|
|
The seamless body is smooth, easy to clean, and both impact and corrosion resistant.
|
|
|
|||
Packing & Delivery
Shipping method: Ro-Ro, Bulk cargo, Container These three modes of transportation, we can provide customers with the most economical semi-trailer transportation plan according to the number of semi-trailers required by customers.
(1)Wax: Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptly.We will We find the best transportation solution to reduce the transportation cost.
