Quick Details
-
Operating Pressure:
-
0-200 bar
-
Power Supply:
-
380 V
-
Place of Origin:
-
Konya, Turkey
-
Brand Name:
-
Garage Technic
-
Model Number:
-
TC56
-
Warranty:
-
1 Years
-
Product name:
-
Garage Technic
Quick Details
-
Motor Power:
-
1,5 kw
-
Max. Rim Diameter:
-
2.480 mm
-
Max. Rim Width:
-
980 mm
-
Operating Pressure:
-
0-200 bar
-
Power Supply:
-
380 V
-
Place of Origin:
-
Konya, Turkey
-
Brand Name:
-
Garage Technic
-
Model Number:
-
TC56
-
Warranty:
-
1 Years
-
Product name:
-
Garage Technic

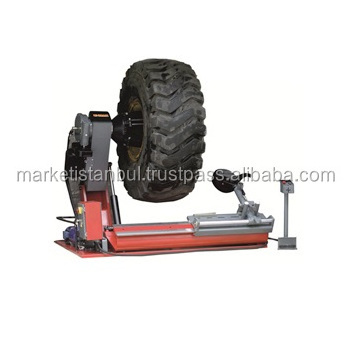

TC56 Heavy Duty Tyre Changer Machine
TC56 Tire Changer Machine is semiautomatic tyre changer suitable for mounting and demounting truck, agricultural, industrial and construction equipment wheels up to maximum width of 980 mm. It is electro-hydraulic operated and the controls are all located together on a low voltage portable unit. The hydraulic turntable, with two rotation speeds in both directions, has top-range design features and uses choice materials. It assures excellent clamping during the delicate clamping, bead breaking and tyre demounting functions. Optional double speed feature give easiness while mounting demounting operation.
| MODEL | TC56 |
| Max Wheel Width | 980 mm |
| Max Wheel Diameter | 2.480 mm |
| Max Wheel Weight | 2.500 kg |
| Rotation Speed | 7-14 rpm |
| Bead Breaker Power | 2000 - 2500 Kg |
| Voltage | 380 V, 3 Phase |
| Handles Rims Capacity | 14'' 56'' |
| Pump Motor | 1,5 kw |
| Gearbox Motor | 2,2 kw |
| Working Pressure | 0-200 bar ( Standard 180 bar ) |
| Control Panel | 24 V |
| Sound Level | 70 dBA |
| Optional Specification | Double Speed |
| Dimensions (mm) | 1850*2500*1250 |
| Weight (kg) | 870 |
