Quick Details
-
Power:
-
110KW
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HEKING
-
Maximum Digging Height:
-
10577mm
-
Maximum Digging Depth:
-
5704mm
-
Max Digging Radius:
-
9925mm
-
Rated Speed:
-
25
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Arm length:
-
3,400mm
-
Boom length:
-
5,500mm
-
20 ton amphibious excavator:
-
amphibious excavator swamp excavator marsh buggy
-
Certification:
-
ISO, CE
Quick Details
-
Operating Weight:
-
26000kg
-
Bucket capacity:
-
0.4m3
-
Engine Brand:
-
TOP BRAND
-
Power:
-
110KW
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HEKING
-
Maximum Digging Height:
-
10577mm
-
Maximum Digging Depth:
-
5704mm
-
Max Digging Radius:
-
9925mm
-
Rated Speed:
-
25
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Arm length:
-
3,400mm
-
Boom length:
-
5,500mm
-
20 ton amphibious excavator:
-
amphibious excavator swamp excavator marsh buggy
-
Certification:
-
ISO, CE

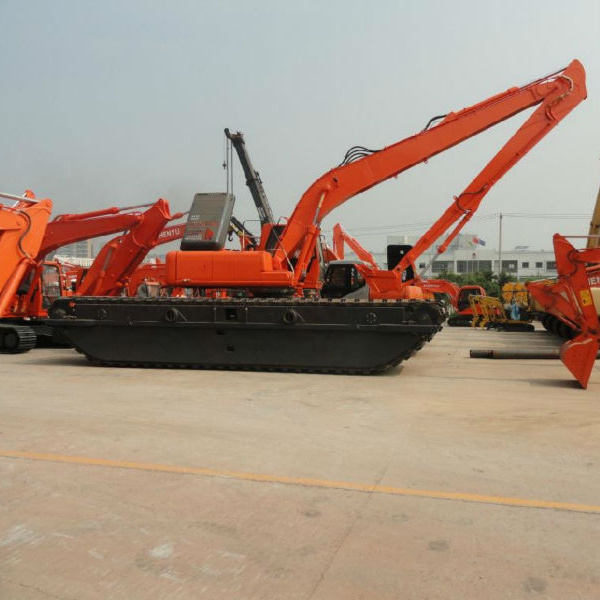

HEKING 26 ton amphibious excavator swamp excavator marsh buggy HK260SD
Specifications
1. Reliable imported hydraulic system
2. Powerful
imported
Japan engine
| Specification | |
| Operating weight | 26000kg |
| Standard bucket capacity | 0.9m³ |
| Boom length | 5680 |
| Arm length | 2912 |
| Chains | 2 |
| Engine: | |
| Model | 6BG1 |
| Type | inter-cooled turbo |
| Power | 114kW/2100rpm |
| Max.torque | 629N m / 1600rpm |
| No.of cylindar | 6 |
| Displacement | 6.494L |
| Hydraulic system | |
| Main pump | |
| Type | Variable plunger pump |
| Max.displacement | 2X107cm3/r |
| Max.flow | 20L/min |
| Working pressure | 32Mpa |
| Hydraulic motor | |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Performance | |
| Slew speed | 11rpm |
| Min.slew radius | 3554mm |
| Max.travel speed high/low | 5.4/3.2km/h |
| Gradeability | 70% |
| Tracktive effort | 279.8kN |
| Max.digging force of bucket | 98.3kN |
| Max.digging force of arm | 63.5kN |
| Ground pressure | 0.14kg/cm2 |
| Oil tank capacity | |
| Fuel tank capacity | 376L |
| Hydraulic tank capacity | 219L |
| Item | |
| Length of pontoon | 8083 |
| Ground clearance of platform | 2002 |
| Overall height | 3826 |
| Boom transport height | 3390 |
| Overall length | 10502 |
| Rear swing radius | 2800 |
| Track gauge | 3643 |
| Overall width | 5133 |
| Width of pontoon | 1490 |
| Min.ground clearance | 1192 |
| Height of pontoon | 1718 |
| Width of upper structure | 2867 |
| Ground length | 4787 |
| Item | |
| Max.digging reach | 9925 |
| Max.digging reach on ground | 9540 |
| Max.digging depth | 5704 |
| Max.vertical digging depth | 5125 |
| Max.digging height | 10577 |
| Max.dumping height | 7810 |
| Min.front slewing radius | 3554 |
