Quick Details
-
Brand Name:
-
Sanrock
-
Dimension(L*W*H):
-
810*380*280mm
-
Usage:
-
breaking, digging, splitting or ramming
-
WEIGHT:
-
27kg
-
COLOR:
-
yellow/camouflage
-
Capacity of tank:
-
≥1.5L
-
Fuel consumption:
-
≤0.12L/m
-
Max Drilling Depth:
-
6m
-
Max drilling diameter:
-
42mm
-
Product name:
-
Hand held rock drill
-
Key word:
-
Internal Combustion Rock Drill
Quick Details
-
Weight (KG):
-
39
-
Application:
-
Quarrying, Ore Mining
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanrock
-
Dimension(L*W*H):
-
810*380*280mm
-
Usage:
-
breaking, digging, splitting or ramming
-
WEIGHT:
-
27kg
-
COLOR:
-
yellow/camouflage
-
Capacity of tank:
-
≥1.5L
-
Fuel consumption:
-
≤0.12L/m
-
Max Drilling Depth:
-
6m
-
Max drilling diameter:
-
42mm
-
Product name:
-
Hand held rock drill
-
Key word:
-
Internal Combustion Rock Drill

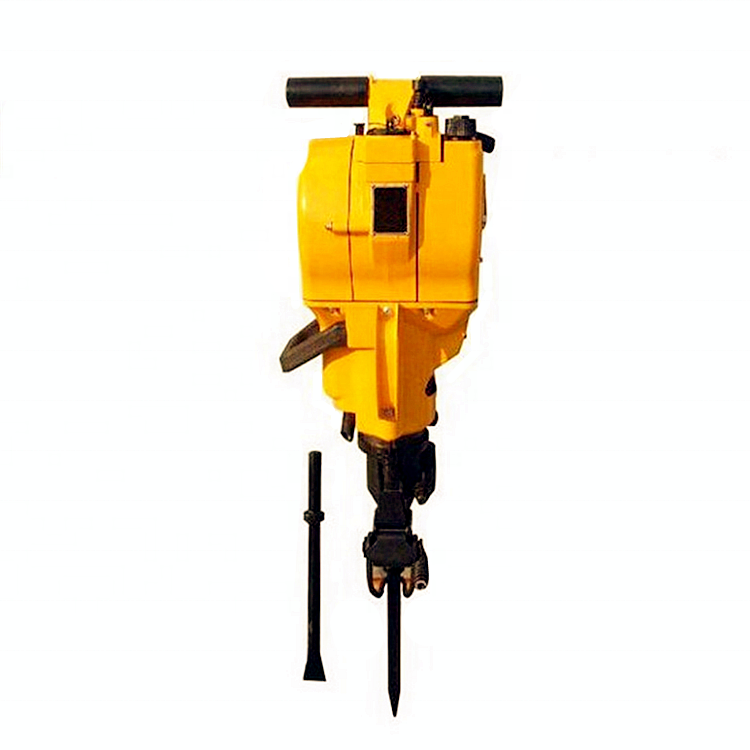

Portable Rock Drilling Machine YN27C Breaker Hammer Internal Combustion Rock Drill Machine
YN 27 Portable Petrol Rock Drill is a very efficient machine,composed of gasoline engine, Air pump, rock drill. It adapts to these outside situations without water and electronic power. Meanwhile it is a hand- held drill, during operation,rock power is blown away by the compressed air produced by the machine itself. .Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area.
YN 27 Portable Petrol Rock Drill Main Characteristics
1.Easy to operate. More timesaving and effortless. Drilling faster and more efficient.
2. Very compact structure, Less of the-easy-to-damage-parts, very easy to control. It can adapt to these outside situations there is no water and no electronic power.
3.It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop.
4.It can be used for breaking, drilling, blasting, tamping splitting and ramming.
Products Description
|
Type
|
YN27C
|
|
Weight of main machine
|
27kg
|
|
Overall dimensions(L*W*H)
|
746*315*229mm
|
|
Type of engine
|
Single cylinder, air cooled two strokes
|
|
Cylinder diameter*stroke of piston
|
Φ58*70mm
|
|
Rotation speed of engine
|
≥2450rpm
|
|
Displacement of engine piston
|
185cm³
|
|
Type of carburetor
|
hand needle valve, floatless type
|
|
Ignition system
|
controllable silicon, contactless system
|
|
Drilling speed (mean value of five holes)
|
≥250mm/min
|
|
Drilling hole diameter
|
28-42mm
|
|
Max drilling depth
|
6m
|
|
Fuel consumption
|
≤0.12L/m
|
|
Tank capacity
|
≥1.5liter
|
