Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGDA MOTOR
-
Model Number:
-
T300
-
Torque:
-
Customizable
-
Motor type:
-
3 phases 12 poles with sensor
-
Direction of rotation:
-
CW
-
Operating temperature:
-
-20℃~+60℃
-
Ambient humidity:
-
RH 90% max
-
Motor installation:
-
Motor shaft horizontal
-
No load current(A):
-
0.4A Max
-
No load speed (rpm):
-
4200 RPM±10%
-
Rated load current (A):
-
1.6A±15%
-
Rated load speed (rpm):
-
3200 RPM±10%
-
Rated torque:
-
75mN.m.
Quick Details
-
Speed(RPM):
-
2000-20000(RPM)
-
Continuous Current(A):
-
/
-
Efficiency:
-
90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHONGDA MOTOR
-
Model Number:
-
T300
-
Torque:
-
Customizable
-
Motor type:
-
3 phases 12 poles with sensor
-
Direction of rotation:
-
CW
-
Operating temperature:
-
-20℃~+60℃
-
Ambient humidity:
-
RH 90% max
-
Motor installation:
-
Motor shaft horizontal
-
No load current(A):
-
0.4A Max
-
No load speed (rpm):
-
4200 RPM±10%
-
Rated load current (A):
-
1.6A±15%
-
Rated load speed (rpm):
-
3200 RPM±10%
-
Rated torque:
-
75mN.m.

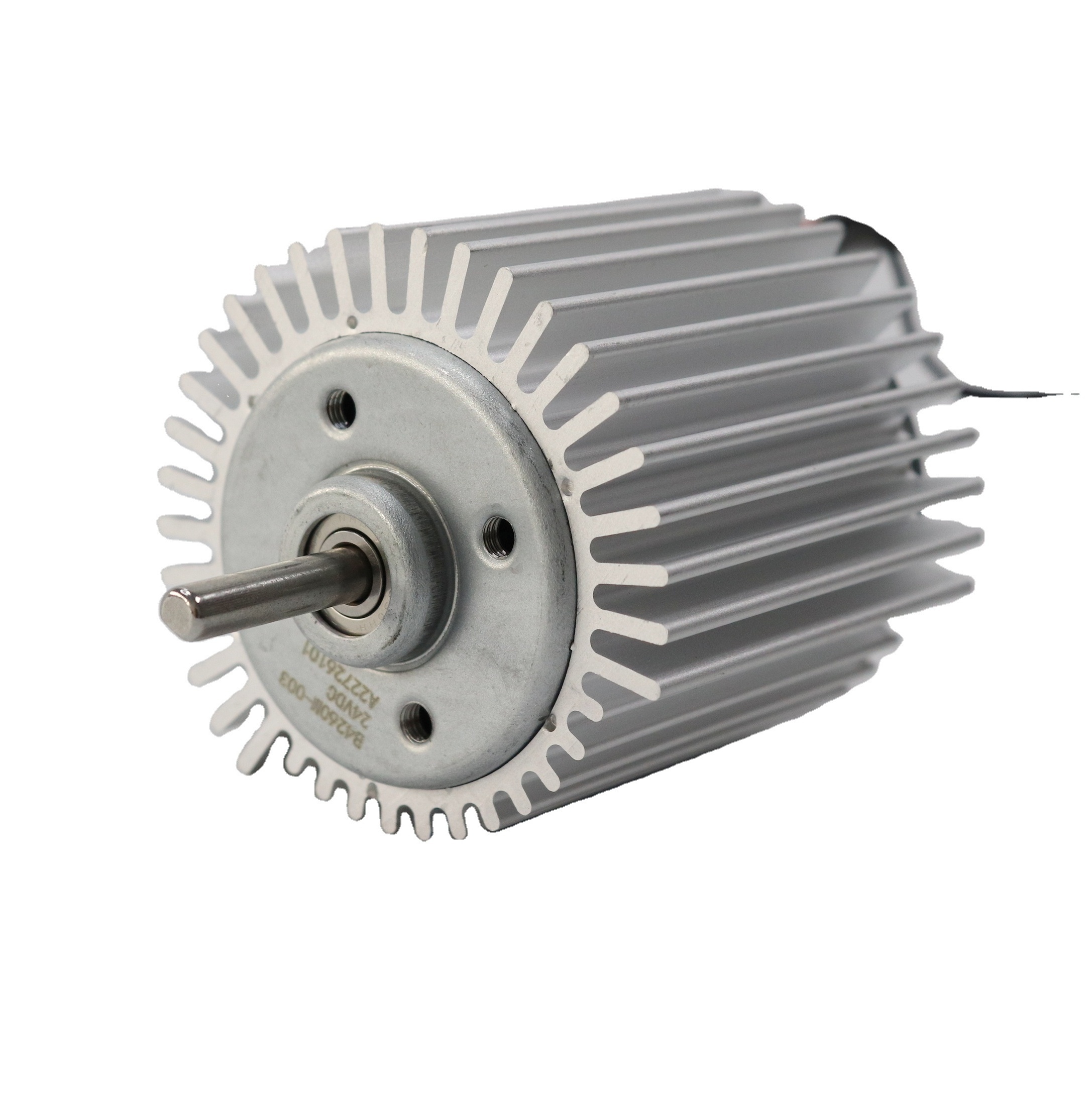

BL4260 high torque bldc motor Brushless motor for T300 steering wheel
Product Description
| Design * R&D * Manufacturing | |||||
| DC Motor | BLDC Motor | RC Motor | Brushless Motor | Coreless Motor | More...... |
| Customizable Parameters | |||||||||
| Output | 5W - 200W | Type: | Inner Rotor | Weight: | 300g | ||||
| Representative | Voltage | NO Load | Maximum Efficeency | Stall | |||||
| Model | Rated | speed | Current | Speed | Current | Torque | Output | Torque | Current |
| V | r/min | A | r/min | A | g.cm | W | g.cm | A | |
| BL4260-V1 | 7 | 2100 | 0.24 | 1430 | 2 | 410 | 14.3 | 2573 | 6.3 |
| BL4260-V2 | 12 | 5000 | 0.65 | 4067 | 3.03 | 688.78 | 22.5 | 3905 | 14.1 |
| BL4260-V3 | 24 | 6700 | 0.28 | 5893 | 1.51 | 518.3 | 25.56 | 3714.7 | 9.35 |
| More Models Welcome Customization...... | |||||||||
