Quick Details
-
Weight (KG):
-
30 kg
-
Application:
-
Oxygen generator, Ozone Generator, Laboratory, etc.
-
Feature:
-
High purity
-
Oxygen concentration:
-
90%±3%
-
Oxygen flow rate:
-
3LPM,5LPM, 8LPM, 10LPM
-
Oxygen discharge pressure:
-
≥40KPa
-
Working noise:
-
≤48dB(A)
-
Voltage:
-
110V/60Hz, 220V/50Hz
-
Power:
-
380~820w
-
Single package size::
-
50X30X62 cm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shaanxi
-
Brand Name:
-
JUNMAO
-
Weight (KG):
-
30 kg
-
Application:
-
Oxygen generator, Ozone Generator, Laboratory, etc.
-
Feature:
-
High purity
-
Oxygen concentration:
-
90%±3%
-
Oxygen flow rate:
-
3LPM,5LPM, 8LPM, 10LPM
-
Oxygen discharge pressure:
-
≥40KPa
-
Working noise:
-
≤48dB(A)
-
Voltage:
-
110V/60Hz, 220V/50Hz
-
Power:
-
380~820w
-
Single package size::
-
50X30X62 cm
Product specification
|
Model
|
Unit
|
JM-OG3L
|
JM-0G5L
|
JM-0G8L
|
JM-0G10L
|
|||
|
Oxygen Flow Rate
|
L/min
|
3
|
5
|
8
|
10
|
|||
|
Oxygen concentration
|
%
|
93%+3
|
|
|
|
|||
|
Power
|
W
|
380
|
520
|
780
|
800
|
|||
|
Exhaust pressure
|
Kpa
|
40
|
|
|
|
|||
|
Outlet pipe diameter
|
mm
|
Diameter 8mm
|
|
|
|
|||
|
Power requirements
|
AC
|
(Customizable) AC100-240V/50-60Hz
|
|
|
|
|||
|
Dimensions
|
mm
|
380*240*397
|
430*260*461
|
460*260*510
|
460*260*586
|
|||
|
Wight
|
kg
|
20
|
23
|
28
|
30
|
|||
Introduction:
◈ It is specially used for equipment to supply oxygen source.
◈ It is prepared by the principle of high-efficiency molecular sieve PSA.
◈It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air. .
◈ Stable and reliable work, low working noise,
◈It can be used independently or built into the ozone equipment system.
◈ It is prepared by the principle of high-efficiency molecular sieve PSA.
◈It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air. .
◈ Stable and reliable work, low working noise,
◈It can be used independently or built into the ozone equipment system.
Features:
◈ Gas intake filter,greatly extend the service life of the molecular sieve.
◈ Adopting Chiller, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
◈Adopt high-efficiency molecular sieve material, which is stable and durable in operation.
◈High oxygen concentration, low machine vibration and low noise.
◈ Adopting Chiller, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
◈Adopt high-efficiency molecular sieve material, which is stable and durable in operation.
◈High oxygen concentration, low machine vibration and low noise.

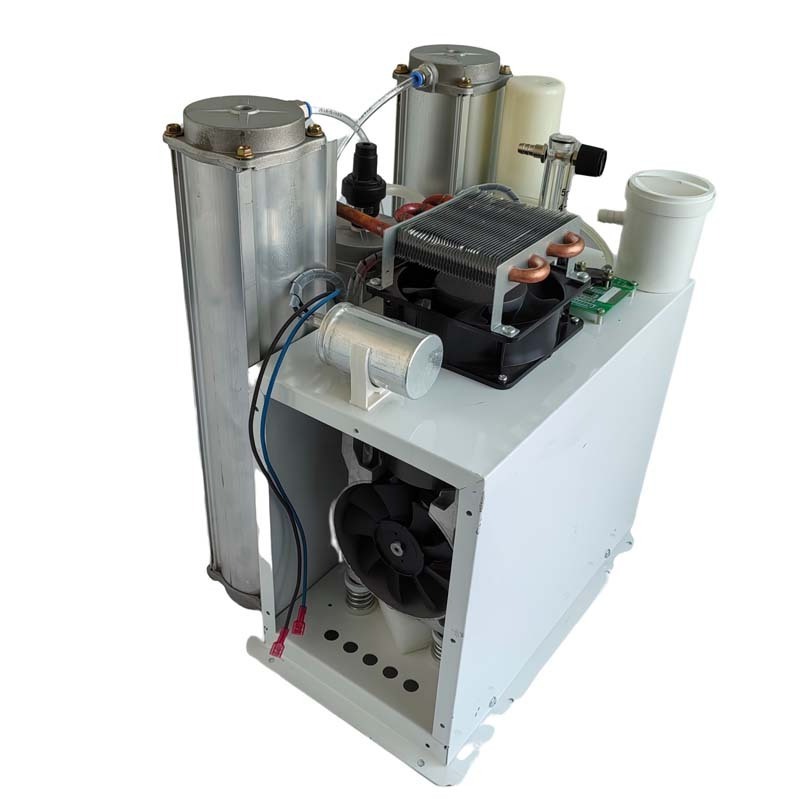

Details Images
Condenser and cooling fan
Air compressor
Filter
Applications
FAQ
Q Are you trading company or manufacturer?
A We are a company integrating factory and trade.
Q How long is your delivery time?
A Generally it is 5- 10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q What is your terms of payment ?
A We support T/T, Western union, Alipay , Paypal, L/C.
Q Are you provide the after-sales service ?
A Yes,we offer one year warranty, and we have adedicated after-sales service team to provide you with the whole process.
A We are a company integrating factory and trade.
Q How long is your delivery time?
A Generally it is 5- 10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q What is your terms of payment ?
A We support T/T, Western union, Alipay , Paypal, L/C.
Q Are you provide the after-sales service ?
A Yes,we offer one year warranty, and we have adedicated after-sales service team to provide you with the whole process.
