- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHURNG
-
Model Number:
-
SVC-3-15000VA
-
Product Name:
-
Servo 15000 watt automatic voltage regulator stabilizer
-
Frequency:
-
50-60Hz Voltage Regultor Stabilizer
-
Protection system:
-
short circuit, over heating, over/lack voltage, over load
-
Technology:
-
CPU Based Digital Circuit + Transformer
-
Output voltage:
-
380v+-1.5% or 3.5%
-
Input voltage:
-
AC 240-450V
-
Certification:
-
ISO9001:2008,PCT,SGS,CE
-
Wave form distortion:
-
no additional wave form distortion
-
Type:
-
automatic voltage regulator
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHURNG
-
Model Number:
-
SVC-3-15000VA
-
Product Name:
-
Servo 15000 watt automatic voltage regulator stabilizer
-
Frequency:
-
50-60Hz Voltage Regultor Stabilizer
-
Protection system:
-
short circuit, over heating, over/lack voltage, over load
-
Technology:
-
CPU Based Digital Circuit + Transformer
-
Output voltage:
-
380v+-1.5% or 3.5%
-
Input voltage:
-
AC 240-450V
-
Certification:
-
ISO9001:2008,PCT,SGS,CE
-
Wave form distortion:
-
no additional wave form distortion
-
Type:
-
automatic voltage regulator
Industrial three-phase automatic voltage regulator
It's Features:
AVR series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer).
it can keep the output voltage stabilized while the input voltage changes.
It's funtions:
Over&low voltage protection,over-heat/load protection,short circuit protection etc.
Advanced design:
LCD display which can show all protection functions more clearly.
The advantages of this model
1.Wide input voltage:three phase AC 240~450V or customize
2.High technology:programmed control computerized
3.The high accuracy of the output voltage(380V±1,5%)
4.Quality insurance:Main spare parts made by ourselves,for example,transformer,PCB.
5.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.
6.High efficiency:More than 95%
2.High technology:programmed control computerized
3.The high accuracy of the output voltage(380V±1,5%)
4.Quality insurance:Main spare parts made by ourselves,for example,transformer,PCB.
5.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.
6.High efficiency:More than 95%
stabilizer/AVR Specifications:
|
1
|
Type
|
|
AVR/SJW(Servo motor control system+Micro compute programmed control)
|
|
|
2
|
Capacity
|
|
6KVA 9KVA 15KVA 20KVA 30KVA 40KVA 45KVA 50KVA 60KVA 70KVA 80KVA 90KVA 100KVA
|
|
|
3
|
AC Input voltage
|
Switch
|
3P50A(CHINT Brand)
|
|
|
|
|
Phase
|
Three Phase(Zero line N interface terminal)
|
|
|
|
|
Voltage
|
304V-456V(according your reuqires)
|
|
|
|
|
Frequency
|
50/60HZ
|
|
|
4
|
AC Output voltage
|
Phase
|
Three Phase(Zero line N interface terminal)
|
|
|
|
|
Voltage
|
380V (according your reuqires)
|
|
|
|
|
Frequency
|
50/60HZ
|
|
|
6
|
Voltage Accuracy
|
|
±1-5%V Adjustable(Factory set±1%)
|
|
|
7
|
Load working
|
|
continuous on interrupt working keep 80% load
|
|
|
8
|
Efficiency
|
|
>98%
|
|
|
9
|
Insulation strength
|
|
2500V/Min
|
|
|
10
|
Insulation Class
|
|
H class
|
|
|
11
|
Cooling method
|
|
Fan system cooling/ natural cooling
|
|
|
12
|
Resist electric strengh
|
|
2500VAC/min
|
|
|
13
|
Noise
|
|
≤60db(Noclude forced air cooling system)
|
|
|
14
|
Temperature Rise
|
|
≤75℃
|
|
|
15
|
Size:
|
|
Length680 *Width 360* High550(mm)
|
|
|
16
|
Weight :
|
|
Net weight:100KG Grossweight:115KG
|
|
|
17
|
Environment
|
Ambient Temperature
|
-10~35℃
|
|
|
|
|
Related humidity
|
15~85%(25℃)
|
|
|
|
|
Altitude
|
<1500M
|
|
|
18
|
Warranty
|
|
1 years
|
|
model style

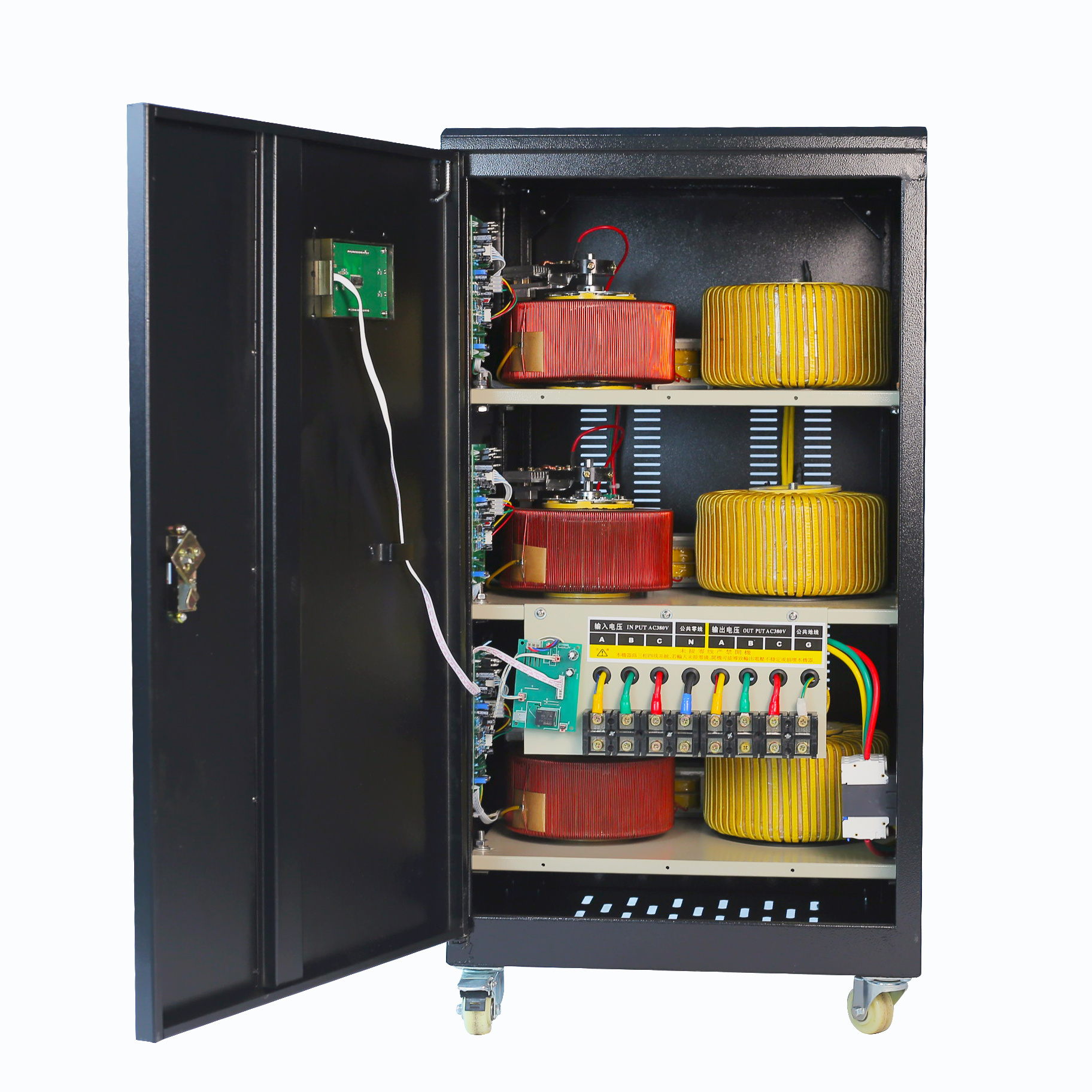

Product pictures.
Pre-shipping Test
Before leaving the LINGFRAN factory, every automatic voltage stabilizer/regulator must pass a series of rigorous tests, performed
with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over/under voltage, manual bypass, limit switch.
Below are part of our testing instrument.
with advanced equipment, on a range of measurements.
(1) Appearance – visual check.
(2) Input voltage regulation range, output voltage and output accuracy.
(3) Insulation resistance and withstand voltage strength .
(4) Protection Function: Over/under voltage, manual bypass, limit switch.
Below are part of our testing instrument.
Company profile
Company profile
FAQ
1. Who are we?
Headquartered in Guangdong Province, China, we have been selling to domestic market (80.00%), Oceania (5.00%),
South America (5.00%) and Africa (3.00%) since 2020. There are about 30 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
transformer,The inverter,Voltage regulator,On-line soft starter,Remote control system
4. why should you buy from us not from other suppliers?
Shenzhen Xichuan Electric Co., Ltd. specializes in the production of soft starter, inverter, online soft starter cabinet,
transformer, AC contactor, dual power supply, regulated power supply, circuit breakers, instruments, transformers and other highand l
5. Can you accept OEM / ODM?
South America (5.00%) and Africa (3.00%) since 2020. There are about 30 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
transformer,The inverter,Voltage regulator,On-line soft starter,Remote control system
4. why should you buy from us not from other suppliers?
Shenzhen Xichuan Electric Co., Ltd. specializes in the production of soft starter, inverter, online soft starter cabinet,
transformer, AC contactor, dual power supply, regulated power supply, circuit breakers, instruments, transformers and other highand l
5. Can you accept OEM / ODM?
Yes, we welcome OEM / ODM orders for transformer, frequency converters, voltage stabilizer and online
soft starters. We provide customers with customized products because we have a strong R & D team and more than a dozen experienced
engineers, which can meet various customization requirements.
soft starters. We provide customers with customized products because we have a strong R & D team and more than a dozen experienced
engineers, which can meet various customization requirements.
