Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
SPR400
-
Product Name:
-

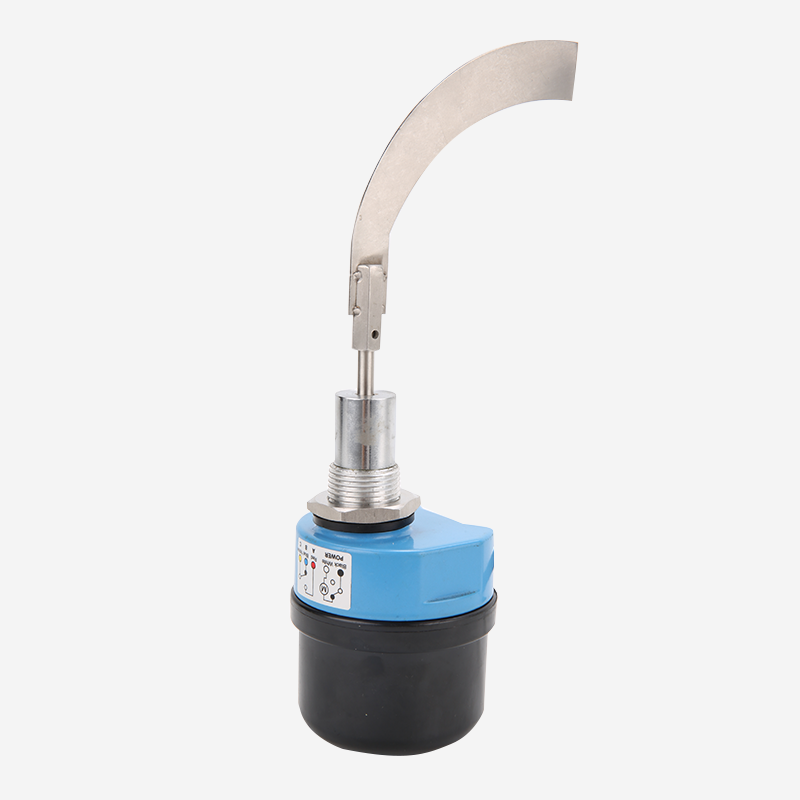

Rotary Paddle Level Switch
-
Power supply:
-
AC220V/110VAC/24VDC(B),50Hz
-
Consumption power:
-
4W
-
Electric shock capacity:
-
SPDT 5A/250VAC
-
Material weight:
-
≥0.5g/cm3
-
Blade speed:
-
1RPM (transfer / minute)
-
Operating temperature:
-
-20°C~80°C (Max. 300°C)
-
Insulation resistance:
-
≥100MΩ
-
Dielectric strength:
-
1500V*1min
-
Application:
-
level measurement
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SPR400
-
Product Name:
-
Rotary Paddle Level Switch
-
Power supply:
-
AC220V/110VAC/24VDC(B),50Hz
-
Consumption power:
-
4W
-
Electric shock capacity:
-
SPDT 5A/250VAC
-
Material weight:
-
≥0.5g/cm3
-
Blade speed:
-
1RPM (transfer / minute)
-
Operating temperature:
-
-20°C~80°C (Max. 300°C)
-
Insulation resistance:
-
≥100MΩ
-
Dielectric strength:
-
1500V*1min
-
Application:
-
level measurement
SPR400 The resistance-type material level switch is equipped with a meter motor in a junction box, which uses a clutch device to connect a transmission shaft with a blade at the other end. When the material is not in contact with the material, the blade and the motor keep rotating coaxially along the transmission shaft. When the blade is in contact with the material and the shaft is blocked, the motor stops rotating and an alarm signal is issued.
|
Working voltage
|
AC220V/110VAC/24VDC/24VAC
|
|
Power
|
250VAC/10A SPDT (Single pole double throw)
|
|
Blade speed
|
1RPM (transfer / minute)
|
|
Torque
|
1.0KG× cm
|
|
Material weight
|
≥0.5g/cm3
|
|
Operating temperature
|
-20°C~80°C (Max. 300°C)
|
|
Insulation resistance
|
≥100MΩ
|
|
Dielectric strength
|
1500V*1min
|
|
Protection level
|
IP65
|
|
Blade material
|
SUS304
|
Packing&Shipping
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4 . Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4 . Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
