Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Naipu
-
Model Number:
-
100ZJ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
80 HP
-
Outlet Size:
-
100 mm
-
Power:
-
60 kw
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Non-standard:
-
Available
-
Drive Stlye:
-
CV, Zvz, Crz, Dcz
-
Bearing brand:
-
SKF, ZWZ, Timken...
-
Impeller:
-
Closed and Open
-
material:
-
A05, A49, A61, NR55, EPDM, PU, CR...
-
Certification:
-
ce
Quick Details
-
Application:
-
Industrial Utilities, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Wastewater Transport and Flood Control, wastewater treatment
-
Pressure:
-
Low Pressure
-
Voltage:
-
380v, 415v, 440v, 460v...
-
Warranty:
-
1 year
-
Brand Name:
-
Naipu
-
Model Number:
-
100ZJ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
80 HP
-
Outlet Size:
-
100 mm
-
Power:
-
60 kw
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Non-standard:
-
Available
-
Drive Stlye:
-
CV, Zvz, Crz, Dcz
-
Bearing brand:
-
SKF, ZWZ, Timken...
-
Impeller:
-
Closed and Open
-
material:
-
A05, A49, A61, NR55, EPDM, PU, CR...
-
Certification:
-
ce

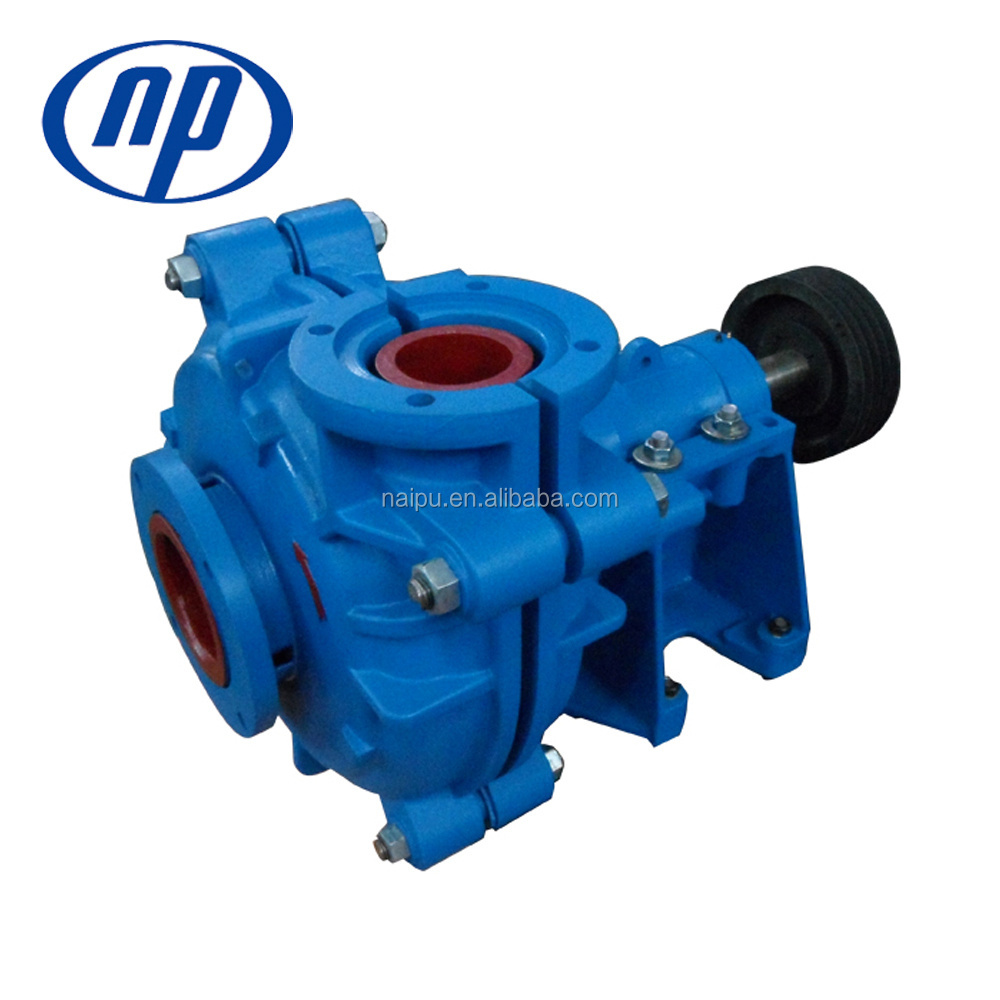

100ZJ Professional Manufacturer Hard Liquid Slurry Pump to Feed Tailing Thickener
Horizontal ZJ(R) slurry pump
Slurry Pump for Short Fiber Liquid / Small Solid Liquid Transfer Pump / Shijiazhuang Naipu Slurry Pump
Horizontal Bare Shaft Slurry Pump with many kind of mateiral for solid slurry using. Such as, Cr26, Cr27, Cr28, Cr30...
Horizontal Wear-resisting Slurry Pump Part code: E4147A05, E4147A07, E4147A49, E4147A61, E4110A05, E4110A07,E4110A49, E4110A61, E4083A07, E4083A05, E4083A49, E4083A61, E4041A07, E4041A05, E4041A49, E4041A61...
ZJ(R)Slurry pump selection chart
( Note: Approximate performance for clear water,to be used for primary selection only.)
ZJ(R) Pump performance parameters
| Type |
Max Power (Kw) |
Clear Water Performance | Impeller | Application | |||||
|
Capacity /m³/hr |
Head /m |
Speed/rpm |
Max
Efficiency
|
NPSH /m |
Nos
of Vane |
Diameter
/mm |
|||
| 25ZJ-B | 15 | 12.6-28.8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | -Ball mill discharge |
| 40ZJ-B | 15 | 32.4-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 | -SAG mill discharge |
| 50ZJ-C | 30 | 39.6-86.4 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 | -Rod mill discharge |
| 75ZJ-C | 30 | 86.4-198 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | -Coal washing |
| 100ZJ-D | 60 | 162-360 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 | -Wet crushers |
| 150ZJ-E | 300 | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | -Ni acid slurry |
| 200ZJ-F | 560 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 | -Coarse tailings |
| 250ZJ-ST | 560 | 936-1980 | 7-68 | 300-800 | 82 | 6 | 5 | 762 | -Meavy media |
| 300ZJ-ST | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | -FGD |
| 350ZJ-TU | 1200 | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 | -Fine tailings |
| 450ZJ-TU | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 | -Phosphoric acid |
| 25ZJR-B | 15 | 10.8-25.2 | 7-52 | 1400-3400 | 35 | 2-4 | 3 | 152 | -Heavy Minerals |
| 40ZJR-B | 15 | 25.2-54 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | -Chemical process |
| 50ZJR-C | 30 | 36-75.6 | 13-39 | 1300-2100 | 55 | 2-4 | 5 | 213 | -Paper and pulp |
| 75ZJR-C | 30 | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 | 245 | -Power Utilities |
| 100ZJR-D | 60 | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 | 365 | - M etallurgy |
| 150ZJR-E | 300 | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 | 510 | -Grinding and screening |
| 200ZJR-F | 560 | 540-1188 | 12-50 | 400-750 | 75 | 4-12 | 5 | 686 | -Hydrocyclone separation |
| 250ZJR-ST | 560 | 720-1620 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | 762 | -Magnetic separation |
| 350ZJR-TU | 1200 | 1200-3000 | 11-42 | 250-450 | 82 | 4-9 | 5 | 1067 | -Flotation |
| 450ZJR-TU | 1200 | 1800-4000 | 12-44 | 200-350 | 82 | 5-10 | 5 |
1370 |
-Thickening |
1. Slurry pump construction drawing
Horizonal Slurry Pump Main part number at the drawing
|
032: Frame Plate
060: Intake Joint 132: Discharge Joint 083: Throatbush 110: Volute Liner 147: Impeller |
122: Stuffing Box Seal
036: Frame Plate Liner 013: Cover Plate 018: Cover Plate Liner 124: Volute Liner Seal 041: Frame Plate Liner Insert |
ZJ Slurry Pump Materials of construction
| LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard |
Chrome Alloy
Natural Rubber |
Chrome Alloy
Natural Rubber |
SG Iron | SG Iron |
Chrome Alloy
or SG Iron |
Chrome Alloy
or SG Iron |
SG Iron |
Rubber
and Nitrile |
| Options |
Ferralium
Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon |
Ferralium
Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon |
SG Iron
Various grades |
MS
Fabricated Cast Iron |
NI Resist
Ferralium Hastelloy C Polyurethane 316 SS W151 |
NI Resist
Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile |
EN56C
Ferralium Hastelloy C Titanium 316 SS 304 SS |
Ceramic
Stellite Chrome Oxide Nordel Neoprene Viton |
What service of Shijiazhuang Naipu?
| OEM service | Produce the pump and spare parts according to client's drawing or sample. |
| Pump slection | Help customers select the type, size and operating speed of pumps that will perform at the lowest cost. |
| Using service | Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service. |
| Quality control | Pay more attention to the quality in every process with different instruments. |
| Material service | Interchangeable metal design allow best material choice for any application. |
| After-sales service | Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts. |
| Guarantee | One year guarantee for whole machine except of the wet end parts. |
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
Packaging details
1. Outside package: standard export wooden cases.
2. Inner package: Stretch film.
