Quick Details
-
Brand Name:
-
MUTAI
-
Model Number:
-
CMTGQ1-100E-4P
-
Rated Current:
-
100a
-
Product name:
-

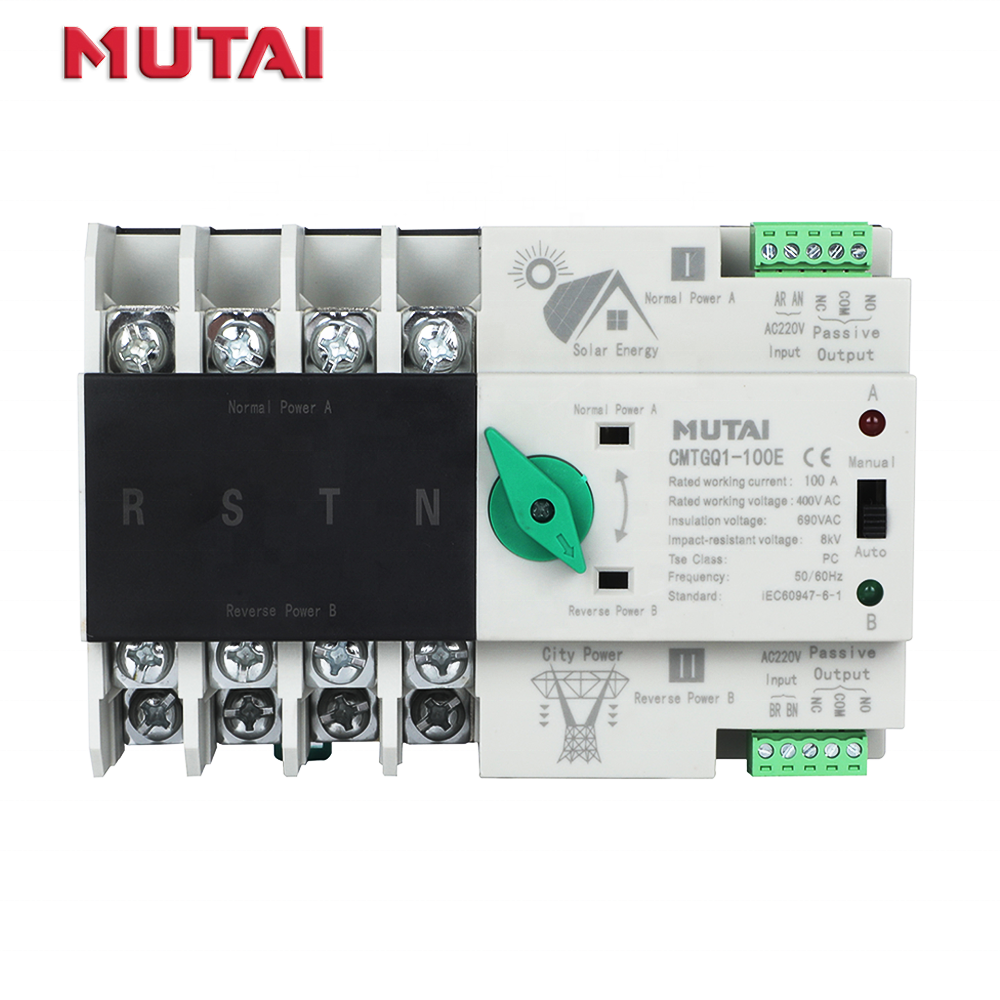

Solar Automatic Transfer Switch
-
Controller:
-
Without
-
Rated voltage:
-
AC 400V
-
Rated working current:
-
10 ~ 100 Amp
-
Operation type:
-
Automatic
-
Frequency:
-
50/60Hz
-
Standard:
-
GB/T14048.11
-
Packing:
-
Carton Box or Wood Box
-
Silver content:
-
Customization
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MUTAI
-
Model Number:
-
CMTGQ1-100E-4P
-
Rated Current:
-
100a
-
Product name:
-
Solar Automatic Transfer Switch
-
Controller:
-
Without
-
Rated voltage:
-
AC 400V
-
Rated working current:
-
10 ~ 100 Amp
-
Operation type:
-
Automatic
-
Frequency:
-
50/60Hz
-
Standard:
-
GB/T14048.11
-
Packing:
-
Carton Box or Wood Box
-
Silver content:
-
Customization
Product Information
General
The dual power automatic switch is a newly developed miniature household power switch, which is mainly used to test whether the main power supply or standby power supply is normal. When the normal power supply is abnormal, the standby power supply starts to work immediately, which ensures the continuity, reliab小ty and safety of power supply.
The dual power automatic switch is suitable for emergency power supply systems with 50 or 60Hz and rated 400V AC. A TS has the characteristics of solid structure,reliable conversion,convenient installation and maintenance and long service life It is widely used in various occasions where power failure cannot be sustained, and can be operated by electricity or manually. ATS is composed of TSE and controller
Technical specification
|
Specification
|
100A
|
|
|
||
|
Rated current le(A)
|
16,20,25
|
32,40,50,63
|
80,100
|
||
|
Insulation voltage Ui
|
AC690V,50Hz
|
|
|
||
|
Rated voltage Ue
|
AC400V,50Hz
|
|
|
||
|
Classification
|
PC cass: can be manufactured and withstood without short circuit current
|
|
|
||
|
Utilization category
|
AC-33iB
|
|
AC-31B
|
||
|
Pole No.
|
2P
|
3P
|
4P
|
||
|
Weight(kg)
|
1.7
|
2.1
|
2.6
|
||
|
Electrical
|
Life:2000 times; Manual operation:5000 times
|
|
|
||
|
Rated short circuit current lq
|
50kA
|
|
|
||
|
Short circuit protection device (fuse)
|
RT16-00-63A
|
|
|
||
|
Rated impulse withstand voltage
|
8kV
|
|
|
||
|
Control circuit
|
Rated control voltage Us:AC220V/50Hz
Normal working cond itions: 85-110%Us
|
|
|
||
|
Auxiliary circuit
|
2 relays, each with two sets of contact converter contact capacity: AC220V/50Hz le=5y
|
|
|
||
|
Conversion time of contactor
|
＜50ms
|
|
|
||
|
Operation conversion time
|
＜50ms
|
|
|
||
|
Retum conversion time
|
＜50ms
|
|
|
||
|
Power off time
|
＜50ms
|
|
|
||
▶
Internal wiring diagram
▶
Controller wiring diagram
▶
Overall and installation dimension of 100
