Quick Details
-
Input:
-
8//16/24 HD inputs
-
Stream output:
-
IP (1 MPTS and 16/32 SPTS) outp
-
Resolution:
-
720 576i (PAL-B,D,G,H,I), 720 480i (NTSC-M,J)
-
Encoding:
-
MPEG4 AVC/H.264/H265
-
Bit-rate:
-
1Mbps~5Mbps each channel
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IPP (P frame is adjustable)
-
Aspect Ratio:
-
4:3; 16:9
-
encoding:
-
MPEG-1 Layer 2
-
Sampling rate:
-
48KHz
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YATAI
-
Model Number:
-
YT-3228S-N
-
Input:
-
8//16/24 HD inputs
-
Stream output:
-
IP (1 MPTS and 16/32 SPTS) outp
-
Resolution:
-
720 576i (PAL-B,D,G,H,I), 720 480i (NTSC-M,J)
-
Encoding:
-
MPEG4 AVC/H.264/H265
-
Bit-rate:
-
1Mbps~5Mbps each channel
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IPP (P frame is adjustable)
-
Aspect Ratio:
-
4:3; 16:9
-
encoding:
-
MPEG-1 Layer 2
-
Sampling rate:
-
48KHz

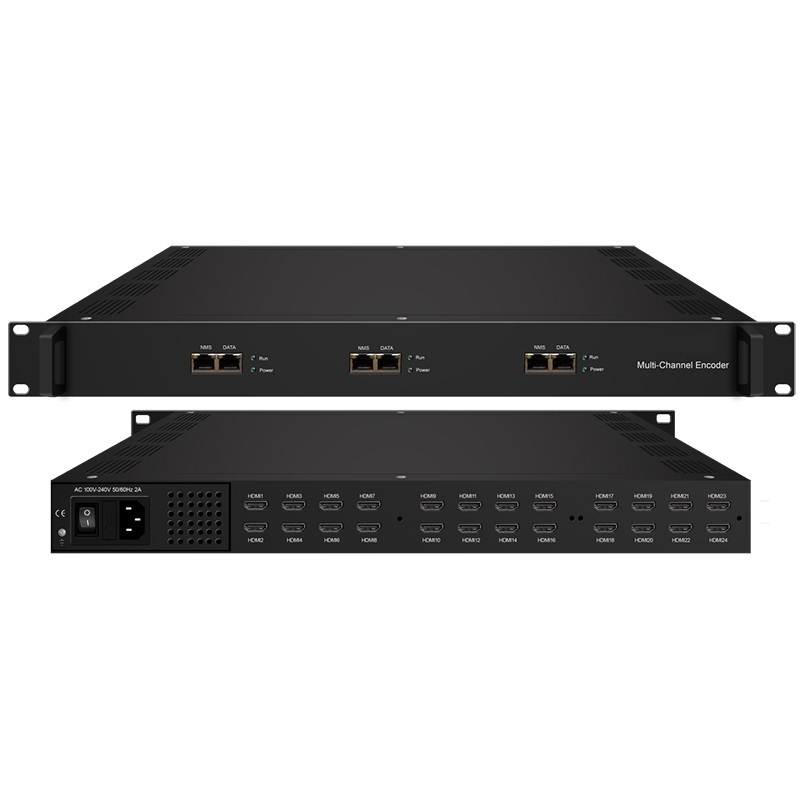

Product O verview
Key Features
l Support 8//16/24 HD inputs, with 2/4/ 8/16/24 SPTS and MPTS output max 24 HD inputs IPTV AND catv project are avaliable
l MPEG4 AVC/H.264 /H265 video encoding format
l MPEG1 Layer II, LC-AAC, HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8
l Support QR code, LOGO, caption insertion (Language Supported: English, for more languages please consult us…)
l Support “Null PKT Filter” function
l Control via web management, and easy updates via web
|
8/ 16/24 HD inputs |
||||
|
Video |
Resolution |
input |
1920×1080_ 60P , 1920×1080_60i, 1920×1080_50 P , 1920×1080_50i, 1280×720_60 P , 1280×720_50 P, 720 x 576_50i,720 x 480_60i |
|
|
O utput |
1920×1080_ 30P , 1920×1080_ 25P , 1280×720_ 30P , 1280×720_ 25P, 720 x 576_25P, 720 x 480_30P |
|||
|
Encoding |
MPEG-4 AVC/H.264 |
|||
|
Bit-rate |
1~ 13 Mbps each channel |
|||
|
Rate Control |
CBR /VBR |
|||
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||
|
Audio |
Encoding |
MPEG-1 Layer 2 , LC-AAC, HE-AAC a nd AC3 Pass through |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Audio Gain |
0-255 Adjustable |
|||
|
MPEG-1 Layer 2 Bit-rate |
48/56/ 64 /80/96/112/ 128 /160/ 192 / 224 / 256 / 320 / 384 k bps |
|||
|
LC-AAC Bit-rate |
48/56/ 64 /80/96/112/ 128 /160/ 192 / 224 / 256 / 320 / 384 k bps |
|||
|
HE-AAC Bit-rate |
48/56/64/80/96/112/128 kbps |
|||
|
Stream output |
IP out over UDP (Unicast/Multicast) ,SRT, RTP, RTSP, RTMP , HTTP, HLS (RJ45, 1 0 00M ) (8 HDMI inputs with 8 SPTS for each encoder board) |
|||
|
System function |
N etwork management(WEB) |
|||
|
Chinese and English language |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension (W×L×H) |
482mm× 328 mm×44mm |
||
|
Environment |
0~45 ℃ (work) ; -20~80 ℃ ( Storage ) |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
