Quick Details
-
Brand Name:
-
CIMC HONTO
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
50m3~10000m3 or Customized
-
Weight:
-
1
-
Inner Material:
-
SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
-
Outer Material:
-
SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
-
Design Pressure(MPa):
-
1.8 or Customized
-
Design Standard:
-
ASME/GB
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Payload:
-
25~5000 tons or Customized
-
Fluid:
-
LPG/Propane/Butane/Ethane/Propylene/Isobutane, etc.
-
Working Temperature:
-
-40~50℃ or customzied
-
Filling ratio:
-
0.9 or customzied
-
Working Pressure:
-
1.8 MPa or customized
-
Corrosion Allowance:
-
1.5mm or customized
-
Hydrostatic Test Pressure:
-
2.54 MPa or customized
-
Air Tightness Test Pressure:
-
1.77 MPa or customized
-
Seismic Intensity:
-
Customized
-
Wind Pressure:
-
1500 Pa or customized
Quick Details
-
Volume (m³):
-
50m3~10000m3 or Customized
-
Max Working Pressure(MPa):
-
1.8 or Customized
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CIMC HONTO
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
50m3~10000m3 or Customized
-
Weight:
-
1
-
Inner Material:
-
SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
-
Outer Material:
-
SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
-
Design Pressure(MPa):
-
1.8 or Customized
-
Design Standard:
-
ASME/GB
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Payload:
-
25~5000 tons or Customized
-
Fluid:
-
LPG/Propane/Butane/Ethane/Propylene/Isobutane, etc.
-
Working Temperature:
-
-40~50℃ or customzied
-
Filling ratio:
-
0.9 or customzied
-
Working Pressure:
-
1.8 MPa or customized
-
Corrosion Allowance:
-
1.5mm or customized
-
Hydrostatic Test Pressure:
-
2.54 MPa or customized
-
Air Tightness Test Pressure:
-
1.77 MPa or customized
-
Seismic Intensity:
-
Customized
-
Wind Pressure:
-
1500 Pa or customized
Products Description
Product Parameters
|
Design Code:
ASME BPVC VIII-1/VIII-2, GB/T 12337, JB/T 4732
Vessel Capacity:
200m³~10000m³ Liquid Gas Spherical Tank, 200m³~20000m³ Gas Spherical Tank.
Vessel Material:
SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
|
|
|
|
|
|
|
||||||
|
Design Standard
|
ASME VIII-2
|
|
|
|
|
|
||||||
|
Total Capacity m³
|
1500
|
2000
|
3000
|
5000
|
6000
|
8000
|
||||||
|
Medium
|
LPG
|
LPG
|
LPG
|
LPG
|
LPG
|
LPG
|
||||||
|
*Payload KG
|
750
|
1000
|
1500
|
2500
|
3000
|
4000
|
||||||
|
Shell Material
|
SA516M
|
SA537 CL.1
|
SA537 CL.1
|
SA537 CL.2
|
SA537 CL.2
|
SA537 CL.2
|
||||||
|
Filling Ratio
|
0.85
|
0.9
|
0.9
|
0.9
|
0.9
|
0.9
|
||||||
|
Tank Net Weight KG
|
258610
|
288617
|
431223
|
636868
|
732400
|
893620
|
||||||
|
Design Pressure MPa
|
1.77
|
1.77
|
1.77
|
1.8
|
1.77
|
1.42
|
||||||
|
Working Pressure MPa
|
1.57
|
1.4
|
1.57
|
1.7
|
1.57
|
1.2
|
||||||
|
MAWP MPa
|
1.77
|
1.77
|
1.77
|
1.8
|
1.77
|
1.42
|
||||||
|
Design Temperature ℃
|
-20/50
|
-20/50
|
-20/50
|
-40/50
|
50
|
-30/50
|
||||||
|
Working Temperature
℃
|
-18/40
|
35
|
-15~40
|
-35~40
|
40
|
-15/40
|
||||||
|
Corrosion Allowance MM
|
1.0
|
1.5
|
1.5
|
1.5
|
1.0
|
2.0
|
||||||
|
NDT
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
||||||
|
Hydraulic Test Pressure MPa
|
2.53
|
2.54
|
2.54
|
2.58
|
2.54
|
2.04
|
||||||
|
Air Tightness Test Pressure MPa
|
1.77
|
1.77
|
1.77
|
1.8
|
1.77
|
1.42
|
||||||
|
PWHT
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
||||||
|
Wind Pressure Pa
|
1035
|
1500
|
1500
|
2000
|
1500
|
3200
|
||||||
|
Snow Pressure Pa
|
--
|
--
|
--
|
300
|
--
|
--
|
||||||
|
Seismic Intensity
|
7 Degree
|
7 Degree
|
7 Degree
|
8 Degree
|
8 Degree
|
8 Degree
|
||||||
|
Field Soil Category
|
II
|
II
|
II
|
II
|
II
|
II
|
||||||
|
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and standard tanks.
|
|
|
|
|
|
|
||||||
|
Design Standard
|
ASME VIII-1
|
|
ASME VIII-2
|
|
|
|||||
|
Total Capacity m³
|
600
|
974
|
2000
|
2000
|
7986.5
|
|||||
|
Medium
|
C4
|
Isobutane
|
Ethylene
|
Ethane
|
Hydrogen
|
|||||
|
*Payload KG
|
278400
|
1809
|
1012600
|
747000
|
8984
|
|||||
|
Filling Ratio
|
0.8
|
0.9
|
0.83
|
0.83
|
0.9
|
|||||
|
Material
|
SA537 CL.2
|
SA516M GR485
|
SA203 GR.F
|
SA203 GR.F
|
SA 537M CL.1
|
|||||
|
Net Weight KG
|
69628
|
109500
|
374367
|
399963
|
965183
|
|||||
|
Design Pressure MPa
|
0.7/-0.03
|
0.79
|
1.98
|
2.15
|
1.65
|
|||||
|
Working Pressure MPa
|
0.47
|
0.6
|
1.65
|
1.775
|
1.5
|
|||||
|
Design Temperature ℃
|
-39/65
|
-20/50
|
120
|
120
|
50
|
|||||
|
Working Temperature ℃
|
42.5
|
40
|
-50~-10
|
-50~-10
|
35
|
|||||
|
Corrosion Allowance MM
|
2.5
|
1.5
|
4.0
|
4.0
|
2.0
|
|||||
|
Wind Pressure Pa
|
600
|
800
|
300
|
300
|
120km/h
|
|||||
|
Snow Pressure Pa
|
400
|
0
|
1800
|
1800
|
N/A
|
|||||
|
Seismic Intensity
|
7 Degree
|
8 Degree
|
6 Degree
|
6 Degree
|
8 degree (0.2g）
|
|||||
|
Field Soil Category
|
II
|
II
|
II
|
II
|
N/A
|
|||||
|
*Please note that different medium component will cause different density and different payload.
**Please contact for more different kinds of capacity and medium tanks.
|
|
|
|
|
|
|||||
Product Pictures
Tank Shell Pressing
Tank Shell Cutting
Factory Assembly Welding
Field Assembly
Field Assembling Welding
Heat Treatment
Pressure Test and Air Tightness Test

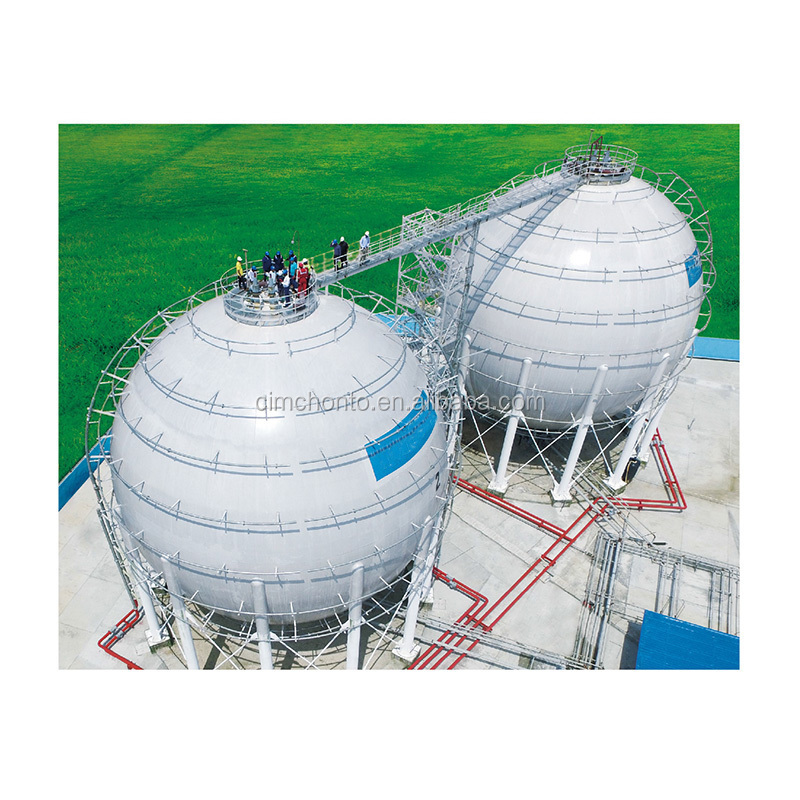

LPG Receiving Terminal
