Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GW
-
Model Number:
-
deck screw
-
Screw type:
-
wood decking screws
-
Head Type:
-
countersunk ribbed head
-
Drive type:
-
Square, Torx
-
Thread:
-
Type17
-
Size:
-
#8 ,#10, #12, #14
-
Torx Drive Size:
-
T20, T25, T27, T30
-
Square Drive Size:
-
#2
-
Sample:
-
Free of charge for 15 pcs of Decking Screws Stainless Steel
Quick Details
-
Finish:
-
Black
-
Material:
-
Stainless steel
-
Measurement system:
-
INCH, Metric
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GW
-
Model Number:
-
deck screw
-
Screw type:
-
wood decking screws
-
Head Type:
-
countersunk ribbed head
-
Drive type:
-
Square, Torx
-
Thread:
-
Type17
-
Size:
-
#8 ,#10, #12, #14
-
Torx Drive Size:
-
T20, T25, T27, T30
-
Square Drive Size:
-
#2
-
Sample:
-
Free of charge for 15 pcs of Decking Screws Stainless Steel

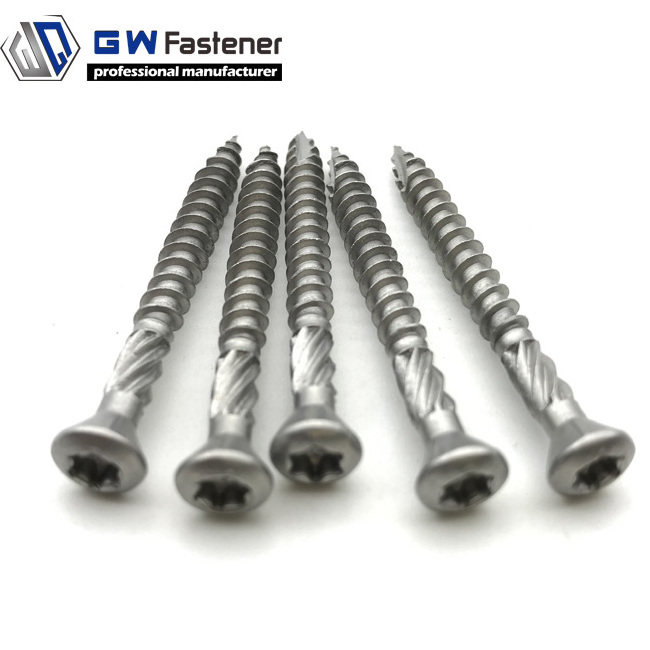

Type 17 Stainless Steel t20 t25 t27 star torx drive deck screw wood decking screws
Specification of Square Drive Deck Screw
Features and Benefits
wood decking screws
- 304 Grade Stainless Steel ,316 Grade Stainless Steel,SS 410 grade.
- Flat Countersunk ,and Ribbed Head or oval head.
- The countersunk head allows the screw to sit flush when fixing and the stainless steel is suitable for outdoor areas.
- #2 Square Drive Or Torx Drive,T20,T25.
- With a type 17 point which allows for an easy installation in wood and composite deck materials.
- Used for fastening wood and composite decks to the main beams.
- Stainless Steel Deck Screws are corrosion resistant making them durable and able to withstand exterior installation and weather conditions without losing their quality.
|
Size (inch ) |
Size (mm) |
Square Drive |
Point Type |
Head Type |
|
8g x 3/4 |
8g x 19mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 1 |
8g x 25mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 1-1/4 |
8g x 32mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 1-1/2 |
8g x 38mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 1-3/4 |
8g x 45mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 2 |
8g x 51mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 2-1/2 |
8g x 63mm |
#2 |
T17 |
Flat CSK with Ribs |
|
8g x 3 |
8g x 76mm |
#2 |
T17 |
Flat CSK with Ribs |
|
|
||||
|
10g x 1-1/2 |
10g x 38mm |
#2 |
T17 |
Flat CSK with Ribs |
|
10g x 2 |
10g x 51mm |
#2 |
T17 |
Flat CSK with Ribs |
|
10g x 2-1/2 |
10g x 63mm |
#2 |
T17 |
Flat CSK with Ribs |
|
10g x 3 |
10g x 76mm |
#2 |
T17 |
Flat CSK with Ribs |
|
10g x 4 |
10g x 101mm |
#2 |
T17 |
Flat CSK with Ribs |
|
|
||||
|
12g x 2-1/2 |
12g x 63mm |
#3 |
T17 |
Flat CSK with Ribs |
|
Length |
Screw Size |
Star Drive |
Qty/Box |
|
1-5/8" |
#8 |
T20 |
4000 |
|
2" |
#8 |
T20 |
3000 |
|
2-1/2" |
#10 |
T25 |
2000 |
|
3" |
#10 |
T25 |
1500 |
|
3-1/2" |
#10 |
T25 |
1000 |
|
2-1/2" |
#12 |
T27 |
2000 |
|
3" |
#12 |
T27 |
1500 |
|
4" |
#12 |
T27 |
1000 |
|
4-1/2" |
#12 |
T27 |
800 |
|
5" |
#12 |
T27 |
500 |
|
5-1/2" |
#12 |
T27 |
500 |
|
6" |
#12 |
T27 |
500 |
|
3" |
#14 |
T30 |
1000 |
|
3-1/2" |
#14 |
T30 |
800 |
|
4" |
#14 |
T30 |
700 |
|
5" |
#14 |
T30 |
500 |
|
6" |
#14 |
T30 |
500 |
Different Types of Decking Screw
