* Maximum curve of 180 degrees
* Includes reinforced mounting holes
* Ultra-lightweight design
Key Specifications:
* Dimensions of 1 200*550*3mm
* Peak wattage of 100w
* Efficiency 23.7%
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1180*540*3mm
-
Panel Efficiency:
-
23.70%
-
OEM Order:
-
Acceptable
-
Solar cell:
-
A-grade
-
Cables:
-
Photovoltaic Technology Cable 4.0mm, 1200 mm
-
Cable:
-
Photovoltaic Technology Cable 4.0mm, 1200 mm
-
Application:
-
Camping/Yacht/Caravan
-
No. of cells:
-
36(4*9)
-
Maximum Power Voltage:
-
18.2
-
Cells Efficiency (%):
-
23.70%
-
Open-circuit voltage:
-
22.3
-
Weight:
-
2.34 kg
Quick Details
-
Cell size:
-
182mmx182mm
-
Brand Name:
-
FGET
-
Model Number:
-
FGET100w-F
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1180*540*3mm
-
Panel Efficiency:
-
23.70%
-
OEM Order:
-
Acceptable
-
Solar cell:
-
A-grade
-
Cables:
-
Photovoltaic Technology Cable 4.0mm, 1200 mm
-
Cable:
-
Photovoltaic Technology Cable 4.0mm, 1200 mm
-
Application:
-
Camping/Yacht/Caravan
-
No. of cells:
-
36(4*9)
-
Maximum Power Voltage:
-
18.2
-
Cells Efficiency (%):
-
23.70%
-
Open-circuit voltage:
-
22.3
-
Weight:
-
2.34 kg

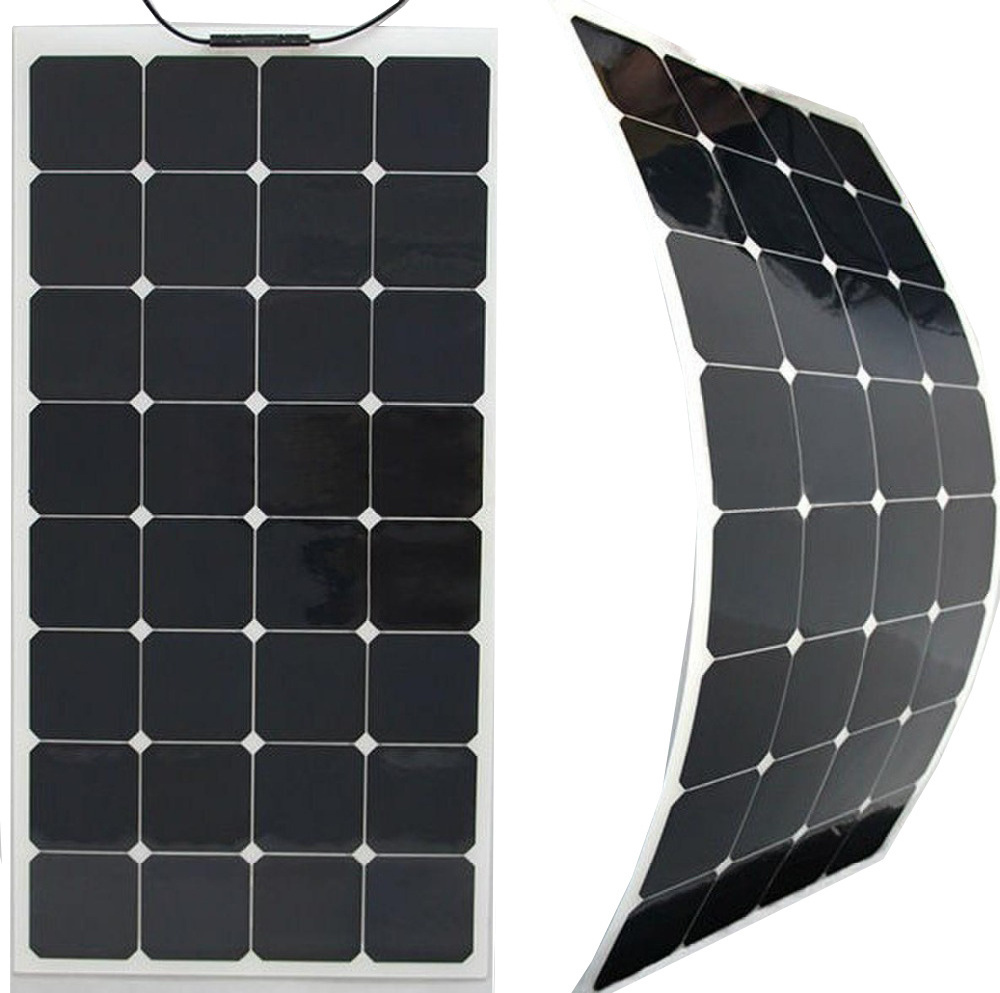

Wholesale 100W Monocrystalline Flexible PV Solar Panel
High conversion efficiency, good output efficiency, low light effect, light weight, easy to carry, strong applicability.
With SUNPOWER chip, can be used for car ,home, boat, motorcycle, etc.
Product Description
* Maximum curve of 180 degrees
* Includes reinforced mounting holes
* Ultra-lightweight design
Key Specifications:
* Dimensions of 1 200*550*3mm
* Peak wattage of 100w
* Efficiency 23.7%
Specification
|
Type
|
Mono
|
|
Power
|
100W
|
|
Size
|
1200*550*3mm
|
|
Effectiveness
|
23.70%
|
|
Maximum working voltage
|
18.2V
|
|
Maximum working current
|
5.49 A
|
|
Open circuit voltage
|
22.3 V
|
|
Open circuit current
|
6.02 A
|
|
System voltage
|
45V
|
|
Flexible Solar Panel Date Sheet
|
|
|
|
|
|
|||||
|
Model
|
Power (w)
|
Voltage (v)
|
Material
|
Weight (kg)
|
Size (mm)
|
|||||
|
15W
|
18V
|
PET/ETFE
|
0.8kg (1.76 lbs)
|
380*280*3mm
|
||||||
|
20W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
580*280*3mm
|
||||||
|
30W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
525*345*3mm
|
||||||
|
50W
|
18V
|
PET/ETFE
|
1.4kg (3.08 lbs)
|
630*540*3mm
|
||||||
|
60W
|
18V
|
PET/ETFE
|
1.9kg (4.19 lbs)
|
1040*340*3mm
|
||||||
|
75W
|
18V
|
PET/ETFE
|
1.9kg (4.18 lbs)
|
830*515*3mm
|
||||||
|
80W
|
18V
|
PET/ETFE
|
2.2kg (4.85 lbs)
|
1000*515*3mm
|
||||||
|
90W
|
18V
|
PET/ETFE
|
2.5kg (5.51 lbs)
|
1050*540*3mm
|
||||||
|
100W
|
18V
|
PET/ETFE
|
2.8kg (6.17 lbs)
|
1180*540*3mm
|
||||||
|
120W
|
18V
|
PET/ETFE
|
3.0kg (6.61lbs)
|
1330*520*3mm
|
||||||
|
150W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
||||||
|
180W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
||||||
|
200W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1580*808*3mm
|
||||||
|
250W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1320*990*3mm
|
||||||
Details Images
Material
PET/ETFE
EVA
Solar Cell
TPT Anti-Corrosion Frame
EVA
Solar Cell
TPT Anti-Corrosion Frame
SUNPOWE Solar Cell
Efficiency 23%
Bend 180 degrees
Bend 180 degrees
Junction Box
Welding diodes
Waterproof
Waterproof
Stainless Ring
Anti-corrosion
Durable
Durable
Connector
Standard MC4
Maximum 10 pcs in series
Maximum 10 pcs in series
More Connector
Fast Charge USB
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
DC barrel 5.5*2.5/2.1mm, USA Plug
12V Clip
Production Process
Cell sorting
Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area
Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame
Clearing and Label
Package
Product packaging
CARTONFive layers anti-pressure carton
CARTON 2 PCS in one carton
1680*997*88mm (60 Cells)
2000*997*88mm (72 Cells)
1680*997*88mm (60 Cells)
2000*997*88mm (72 Cells)
10 to 20 cartons on one pallet Corner protector
Top protector
Top protector
60 cells panel 1640*992*35mm
72 cells panel
1960*992*40mm
72 cells panel
1960*992*40mm
60 cells -30 pcs in one carton 1680*1150*1090mm72 cells- 27 pcs in one carton
2000*1150*1110mm
2000*1150*1110mm
60 cells in 40 HQ 28 pallets, 840 pcs
72 cells in 40 HQ
24 pallets, 648 pcs
72 cells in 40 HQ
24 pallets, 648 pcs
Certifications
FAQ
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: 5 years warranty on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: 5 years warranty on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
