Quick Details
-
Core Components:
-
/
-
Weight (KG):
-
675 KG
-
Name:
-
Wood Pallet Notching Machine
-
Working length:
-
800-1350mm
-
Wood thickness:
-
Max. 150mm
-
Notching depth:
-
Max. 70mm
-
Notching width:
-
Max. 228.6mm
-
Cutter quantity:
-
2pc side cutter + 14pc middle cutter
-
Cutter width:
-
Side cutter 25.4mm Middle cutter 12.7mm
-
Notching speed:
-
600pc/hour
-
Voltage:
-
380V 50Hz 3Phase
-
Air pressure:
-
0.6-0.7Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Saifan
-
Machine Type:
-
pallet notching machine
-
Core Components:
-
/
-
Weight (KG):
-
675 KG
-
Name:
-
Wood Pallet Notching Machine
-
Working length:
-
800-1350mm
-
Wood thickness:
-
Max. 150mm
-
Notching depth:
-
Max. 70mm
-
Notching width:
-
Max. 228.6mm
-
Cutter quantity:
-
2pc side cutter + 14pc middle cutter
-
Cutter width:
-
Side cutter 25.4mm Middle cutter 12.7mm
-
Notching speed:
-
600pc/hour
-
Voltage:
-
380V 50Hz 3Phase
-
Air pressure:
-
0.6-0.7Mpa
Product Description
Feature

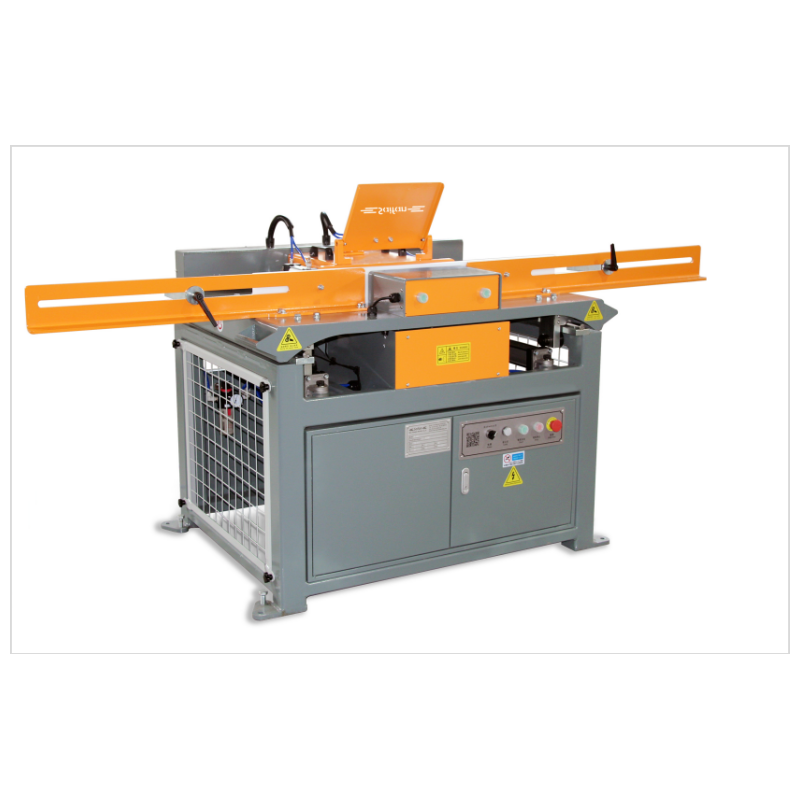

SF7011 single head wood pallet notching machine machine is used for making notching for American stringer pallet, so that let forklift insert easily.Max. notching width can be 304.8mm, normal notching width in market is 228.6mm, we will change cutter quantity to change the notching width.
Notching depth Max. 60mm, we use different depth backing plate to adjust the notching depth.
Our cutter is indexable spiral cutter, every cutter have 4 heads, every head have 2 blades, can use two times, cutter no need
change, just change the cutter head, thus to save cost during longtime working.
Advantages
Easy to operate, high efficiency, safety for worker
Notching depth Max. 60mm, we use different depth backing plate to adjust the notching depth.
Our cutter is indexable spiral cutter, every cutter have 4 heads, every head have 2 blades, can use two times, cutter no need
change, just change the cutter head, thus to save cost during longtime working.
Advantages
Easy to operate, high efficiency, safety for worker
Product Paramenter
|
Name
|
Wood Pallet Notching Machine
|
|
Power
|
Cutter motor 15kw
|
|
Voltage
|
380V 50Hz 3Phase (Can customize)
|
|
Working length
|
800-1350mm (Can customize)
|
|
Wood thickness
|
Max. 150mm
|
|
Notching depth
|
Max. 65mm adjustable
|
|
Notching width
|
Max. 228.6mm adjustable
|
|
Number of cutting blades
|
2pc side cutter + 14pc middle cutter
|
|
Notching speed
|
600pc/hour
|
|
Tolerance
|
≤1mm
|
|
Machine dimension
|
1350*980*1100mm
|
|
Machine Weight
|
800kg
|
|
Control system
|
Siemens PLC
|
|
Exhaust duct
|
1pc diameter 150mm
|
|
Cutter type
|
Indexable
|
|
Cutting arc
|
25.4mm
|
Detailed Images
Control panel
Button control, simple and convenient
Start button
Control the notching cycle, double hand control.
Cutter head
Side cutter and middle cutter, both with 4pc cutter head.
Cutter spindle
Change cutter width to adjust notching width
Backing plate
Change with different thickness backing plate to get different notching depth, max. 60mm.
Fence
Standard length 1350mm, max. can be 2100mm, and adjust the length with stopper
Dust collection port
150mm diameter
Safety cover
To protect operator and the machine
